BDS Suspension 4 Inch Lift Kit Jeep Cherokee SJ, Wagoneer, Grand Wagoneer, or J10/J20 (74-89)
- Front lift 4"
- Lift 4-5.5"
- Max tire 33 x 12.5
- Rear lift 3"
- Shocks included
- Install 6 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- 083402 Pitman arm will increase turning radius. (cannot turn as sharp)
- Not recommended for Wagoneers or Cherokees with front and/or rear track rods.
- 1974-1975 models must have 131" wheelbase and 7200# GVWR or more for #004408 rear springs to fit.
- Some 1974 J20s with stock 401 come with a rear 15/16" spring eye stud.
- #004402 and #004408 come with OE rubber bushings installed.
- Rear shock mount may need to be relocated.
- If equipped with Dana 44 rear axle will require a 9/16 X3-1/4" X 7-1/2" rear u-bolt. (Not supplied by BDS)
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS403H |
| UPC / GTIN | 840416416183 |
| Front Lift Height | 4" |
| Front Lift Method | Leaf Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 6 hrs |
| Difficulty | Moderate |
| Required Tools | Torque Wrench, Jack / Jack Stands, Pitman Arm Puller |

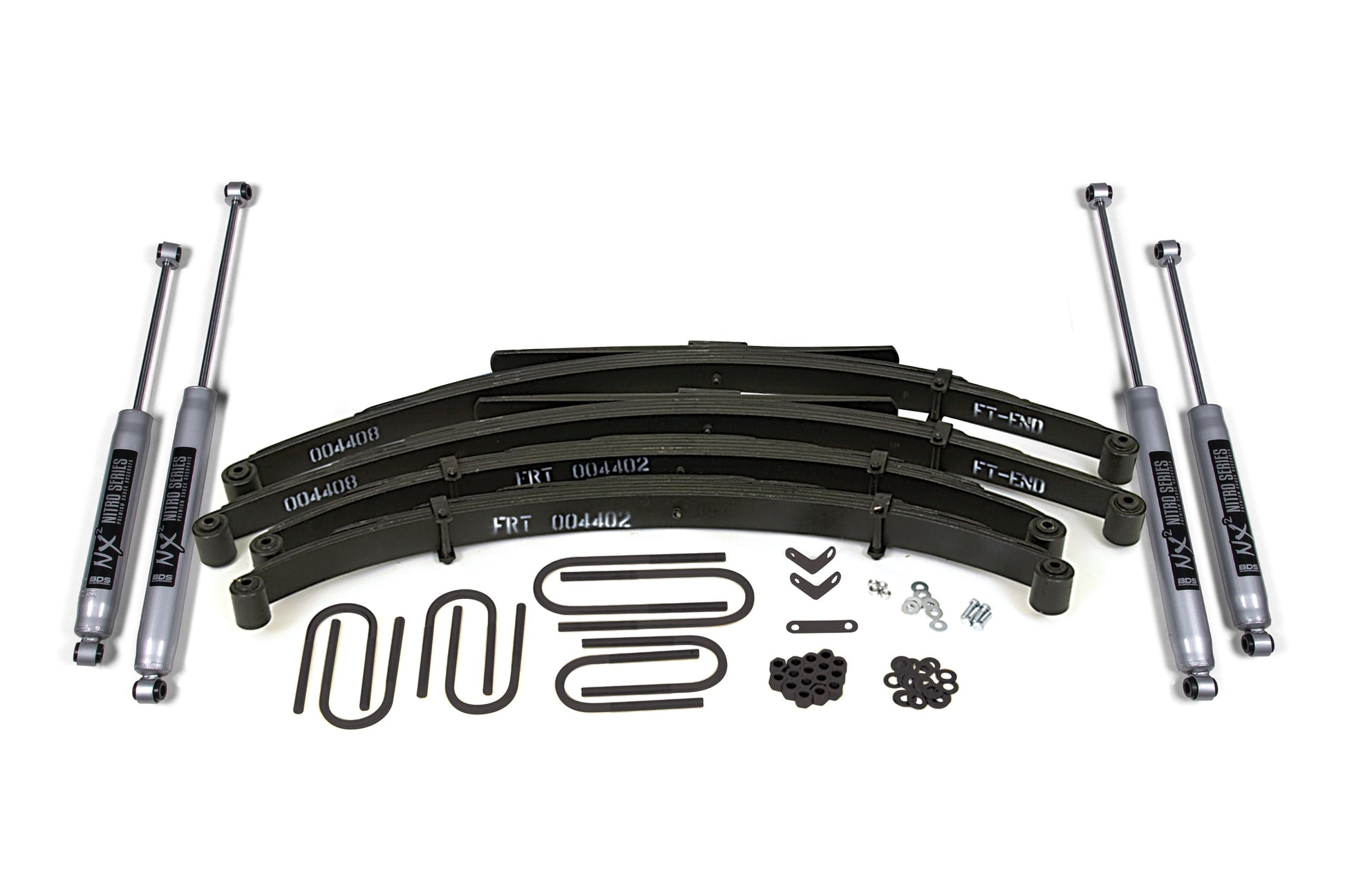

What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | BDS004402 | Front Leaf Spring | 4 Inch Lift | Jeep J10/J20 & Wagoneer (74-90) |
| 2 | BDS85875 | NX2 Nitro Shock | Multiple Fitments | 23.10 x 14.25 x 2-3/8 - EB1/EB1 |
| 2 | BDS85920 | NX2 Nitro Shock | Multiple Fitments | 25.95 x 15.40 x 2 - EB1/EB1 |
For: Leaf Springs
| Qty | Part | Description |
|---|---|---|
| 2 | BDS004408 | Rear Leaf Spring | 4 Inch Lift | Jeep J10/J20 & Wagoneer (74-90) |
Features
- Easy, 100% Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
Fitment
| Years | Vehicle |
|---|---|
| 1974-1983 | Jeep Cherokee |
| 1974-1986 | Jeep J10 |
| 1974-1988 | Jeep J20 |
| 1974-1989 | Jeep Wagoneer |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 33 x 12.5 with 15 x 8 and 3.5 in. Backspace
Installation
- Estimated install time6 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Update the style of your Jeep Cherokee SJ Full Size,Wagoneer, and Grand Wagoneer with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

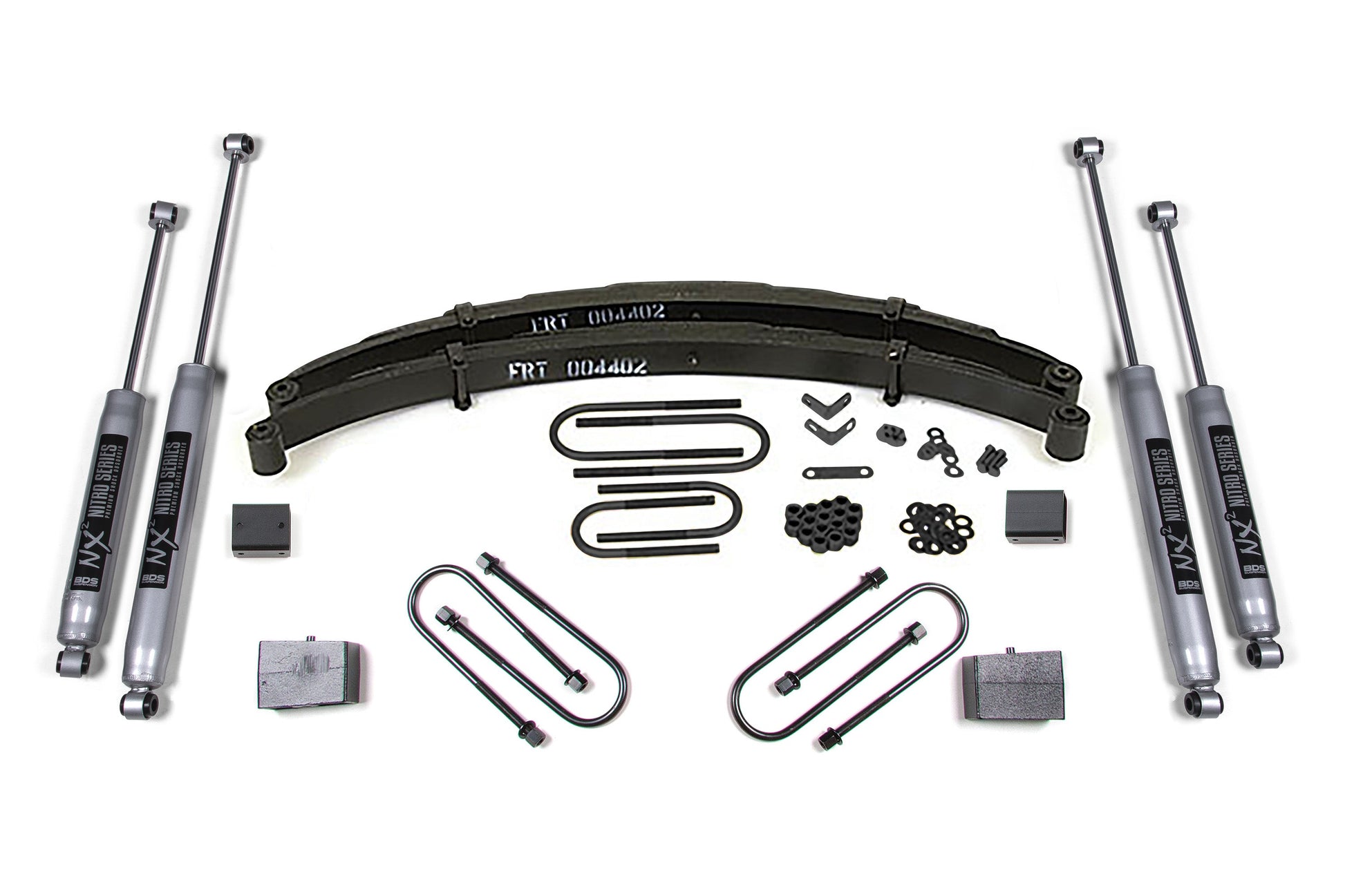

Up front the lift kit includes Glide-Ride leaf springs, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
