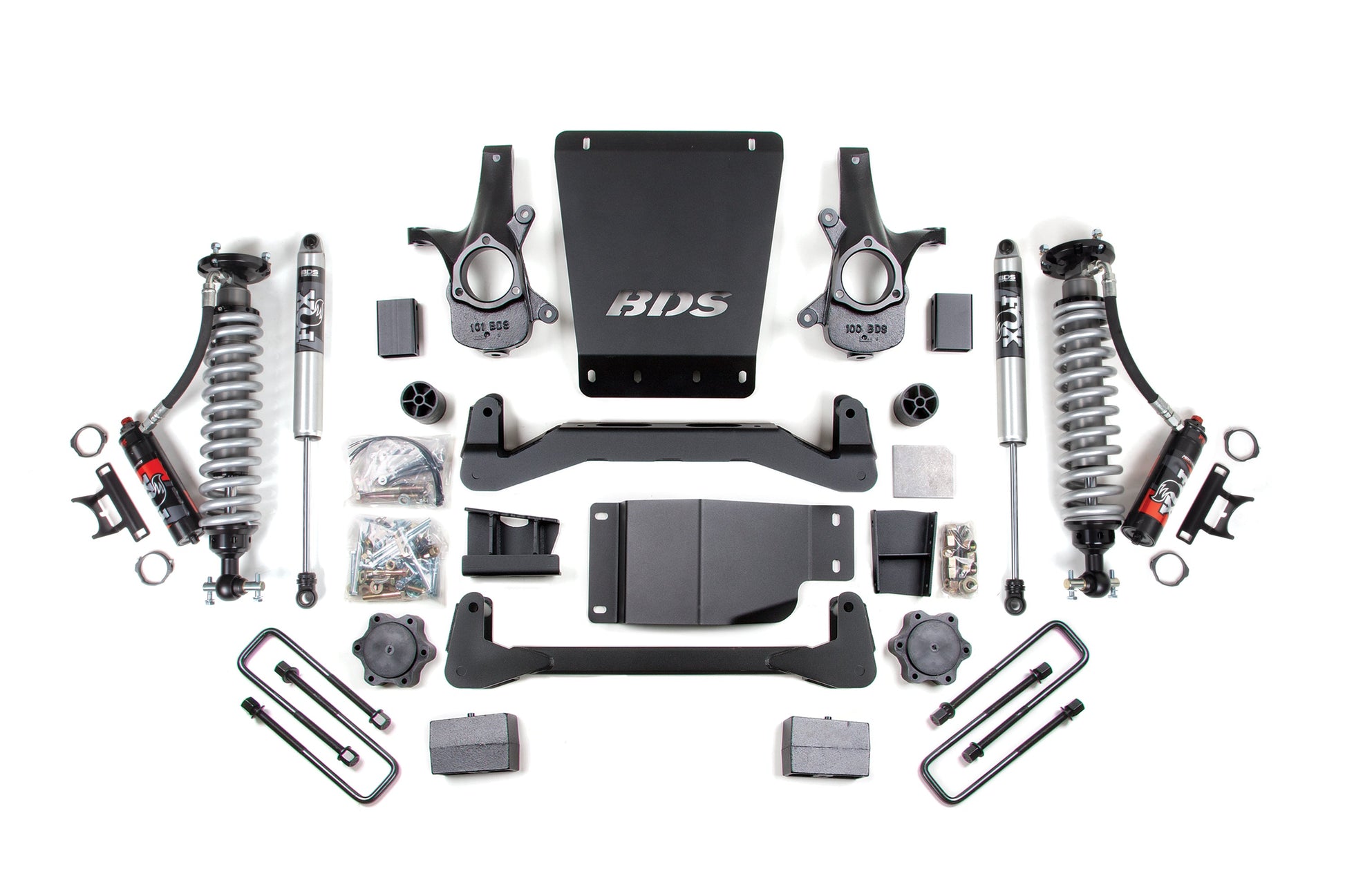

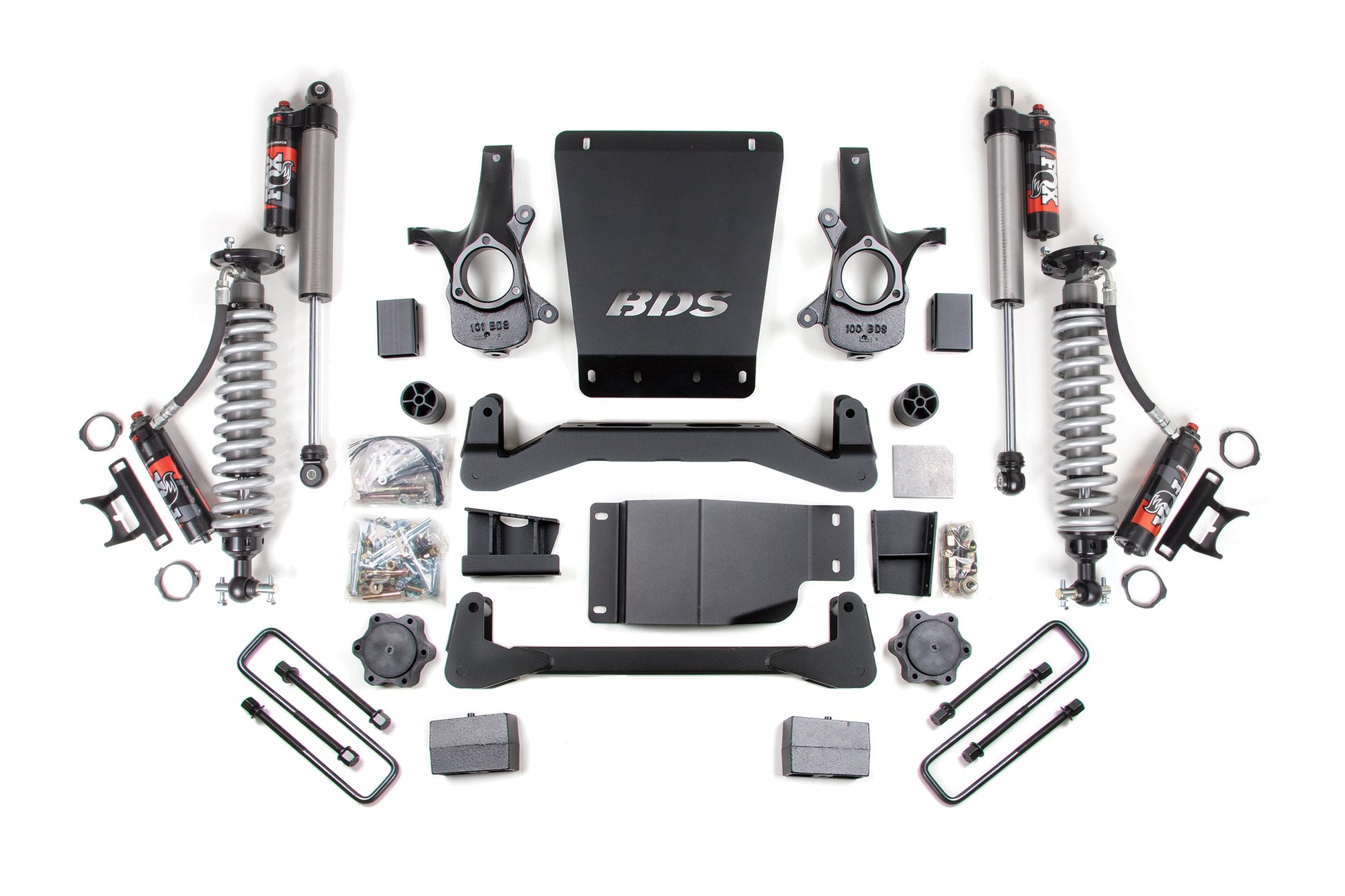

BDS Suspension 4 Inch Lift Kit · FOX Performance Elite Coil-Over Chevy Silverado or GMC Sierra 1500 (07-13) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 32 x 11.5
- Rear lift 3"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Control Arms
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Installation of rear leaf springs requires removal of the fuel tank Requires frame bracket modification
- 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming. Traction bars will not fit regular cab short box models.
- Add BDS121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
- Will not fit two-mode hybrid models with electronic power steering.
- Stock 20" wheels can be re-installed only with factory tire size.
- Factory 17 and 18's cannot be re-installed.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS184PES |
| UPC / GTIN | 840416434033 |
| Front Lift Height | 4" |
| Front Lift Method | Cross Member & Coil-Over |
| Lift Height | 4-5.5" |
| Max Tire Size | 32 x 11.5 |
| Rear Lift Height | 3" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |
| Required Tools | Cut Off Wheel or Equiv., Reciprocating Saw, Strut Compressor, Welding Equipment |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS121613 | Front Skid Plate | Fits BDS 4 or 6 Inch Lift Only | Chevy Silverado and GMC Sierra 1500 (07-13) |

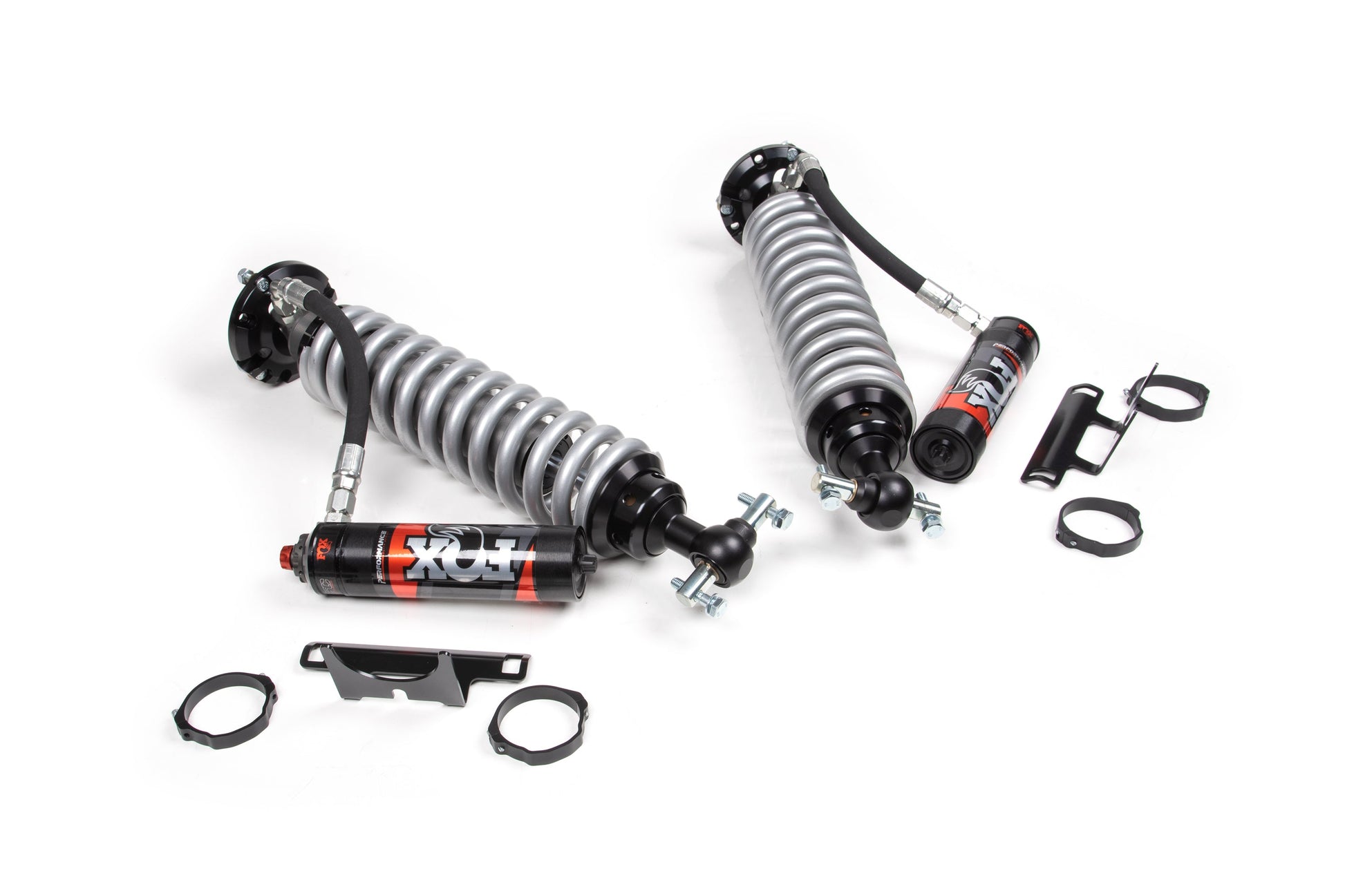

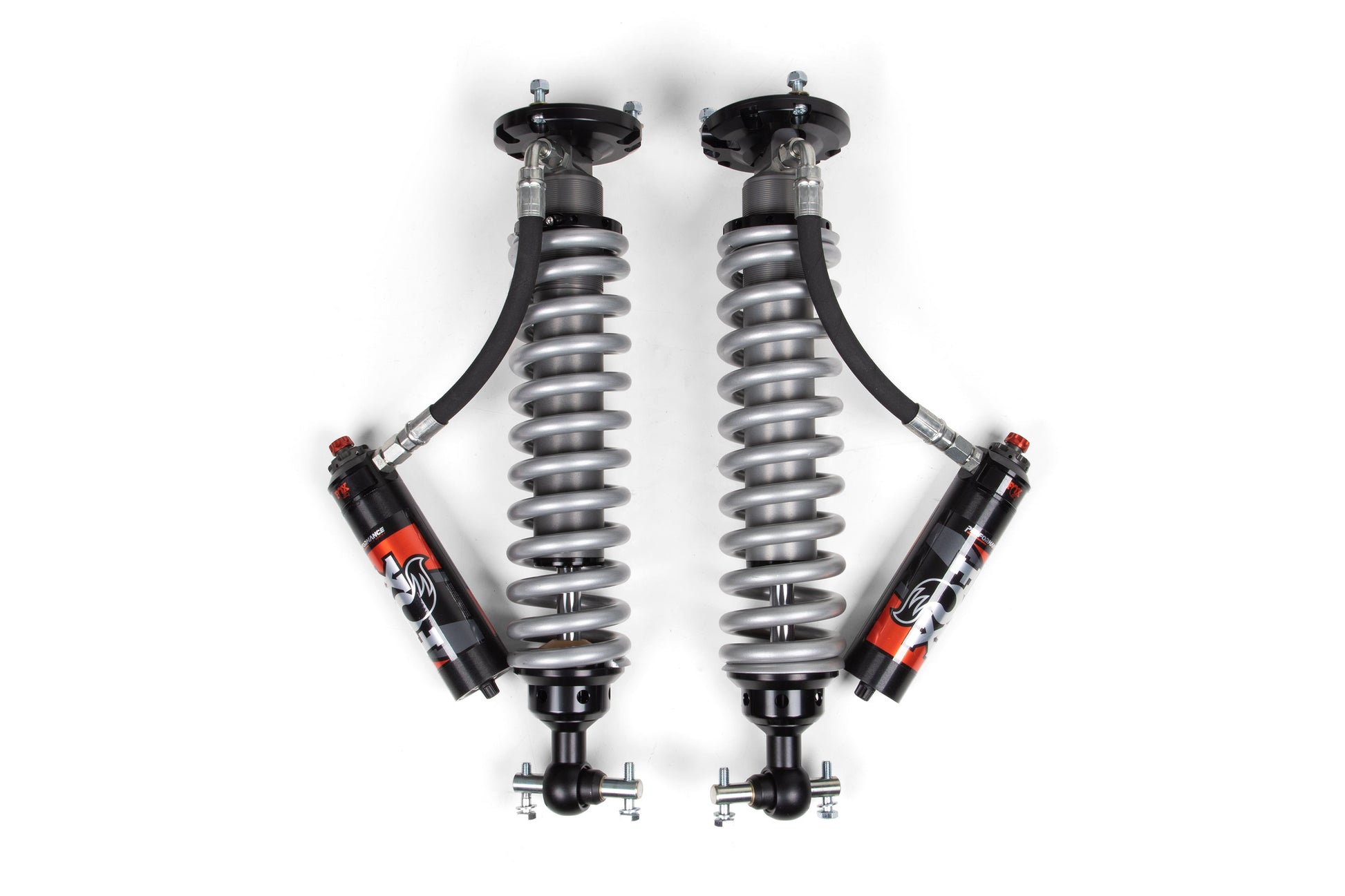

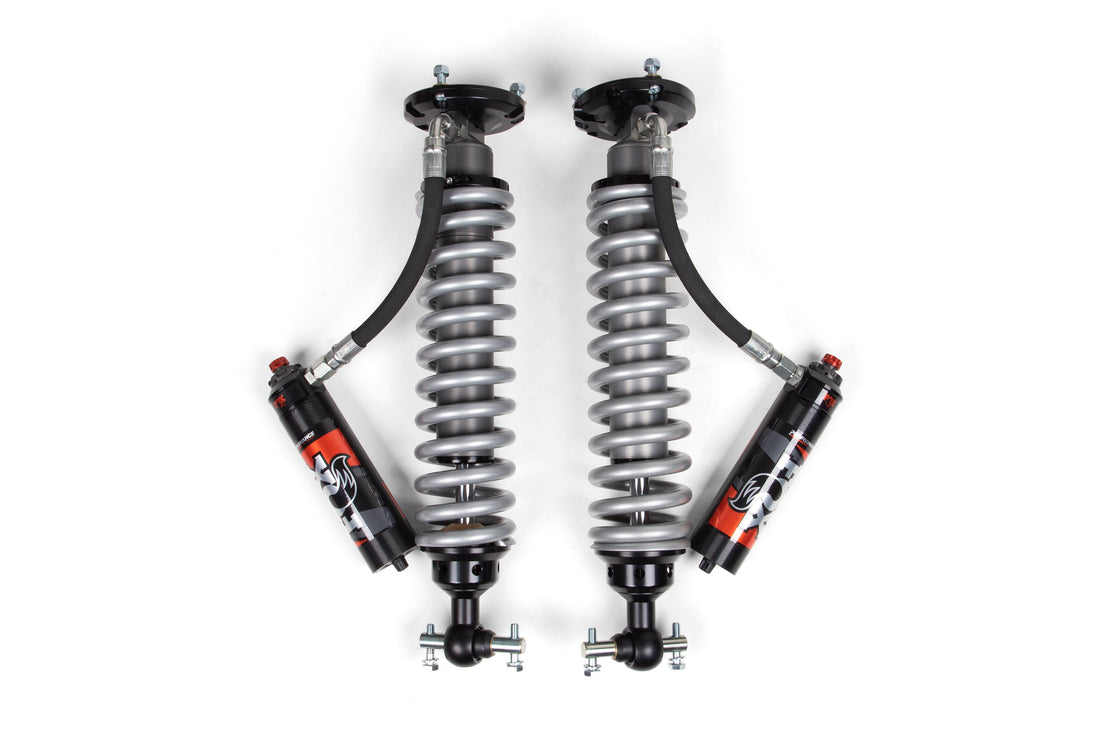

| 1 | FOX88406533 | FOX 2.5 Coil-Over Shocks w/ DSC Reservoir Adjuster | 4 Inch Lift | Performance Elite Series | Chevy Silverado and GMC Sierra 1500 (07-18) |
For: Block Kit / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|

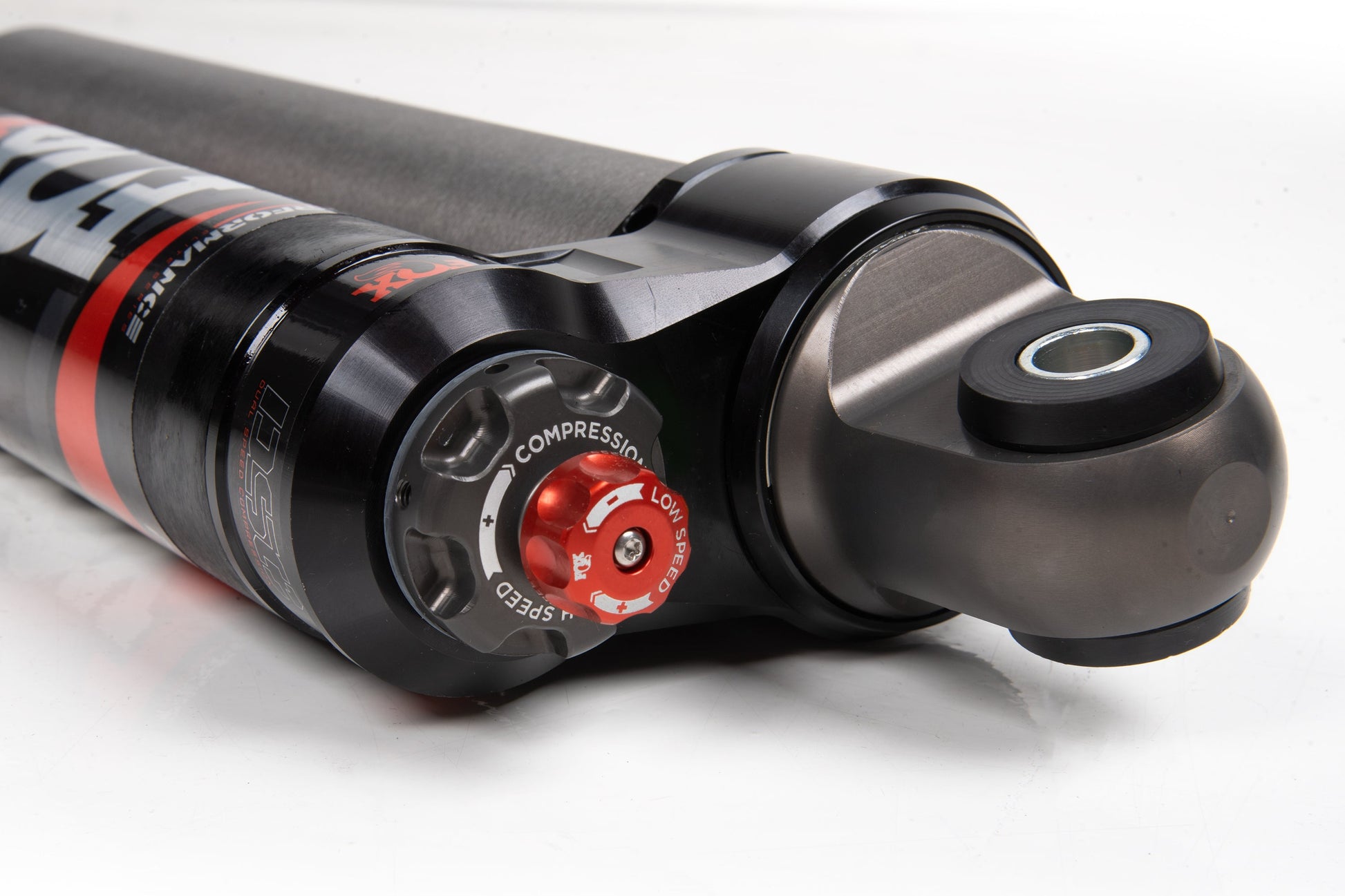

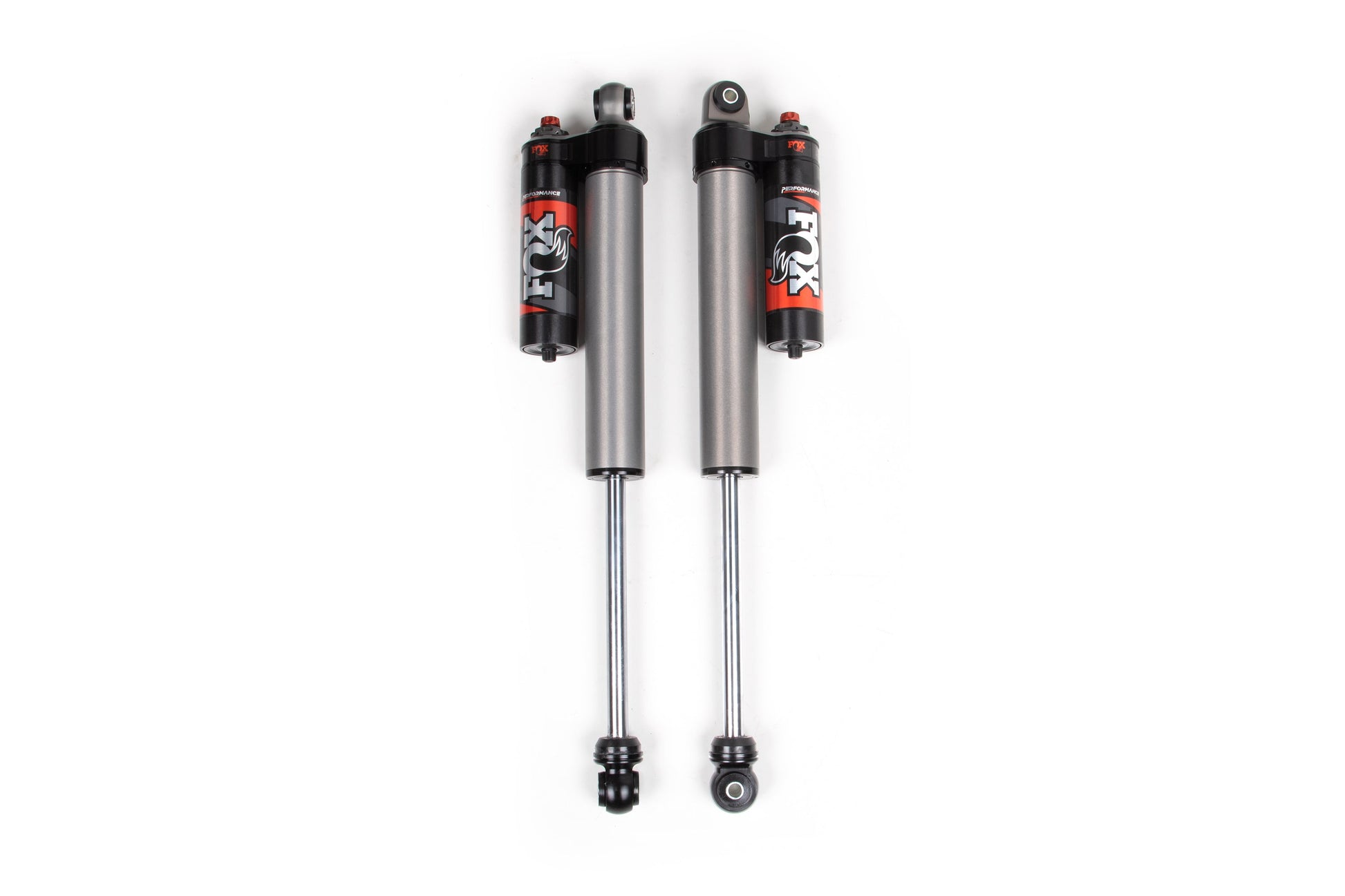

| 1 | FOX88426042 | FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster | 4-6 Inch Lift | Performance Elite Series | Chevy Silverado and GMC Sierra 1500 (07-18) |
For: Block Kit / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224758 | FOX 2.0 IFP Shock | Performance Series | 27.95 x 17.35 x 2- EB1/EB1 |

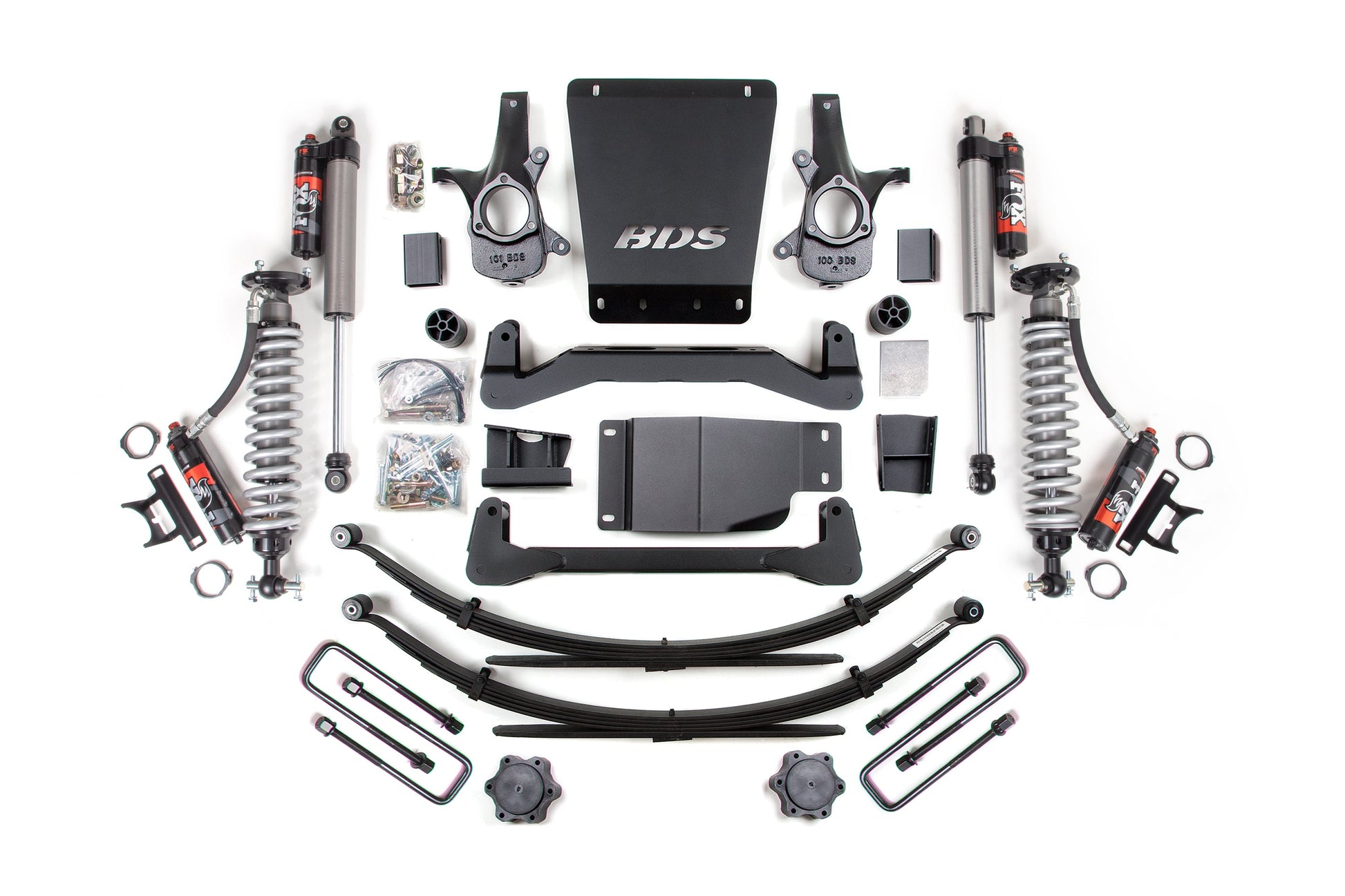

For: Leaf Springs / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 2 | BDS001559 | Rear Leaf Spring | 5 Inch Lift | Chevy Silverado & GMC Sierra 1500 (99-18) |
| 1 | FOX88426042 | FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster | 4-6 Inch Lift | Performance Elite Series | Chevy Silverado and GMC Sierra 1500 (07-18) |

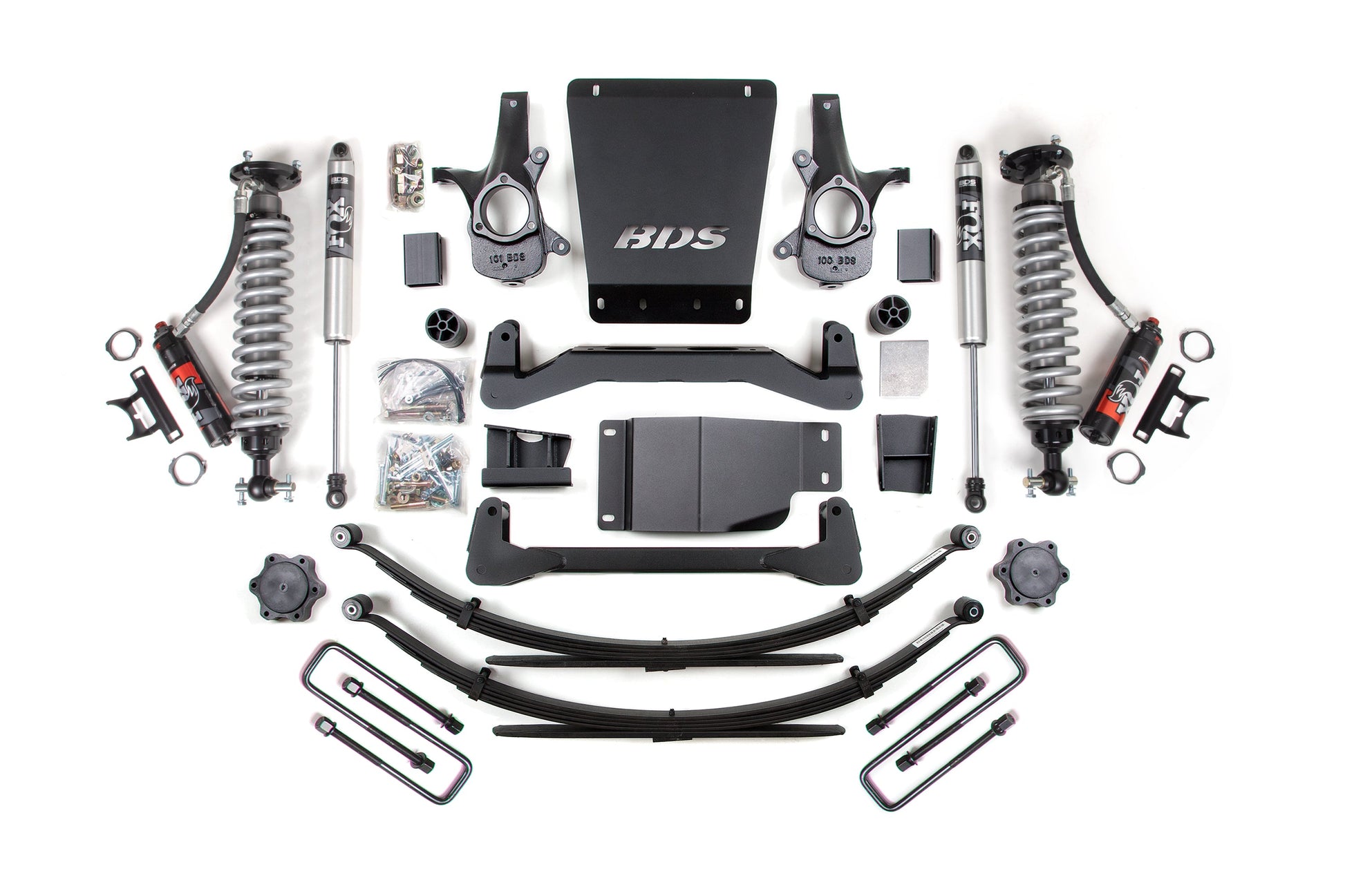

For: Leaf Springs / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS001559 | Rear Leaf Spring | 5 Inch Lift | Chevy Silverado & GMC Sierra 1500 (99-18) |
| 2 | FOX98224758 | FOX 2.0 IFP Shock | Performance Series | 27.95 x 17.35 x 2- EB1/EB1 |
Features
- Fox 2.5 Shocks are explicitly designed for increased travel and the ability to soak up the roughest terrain.

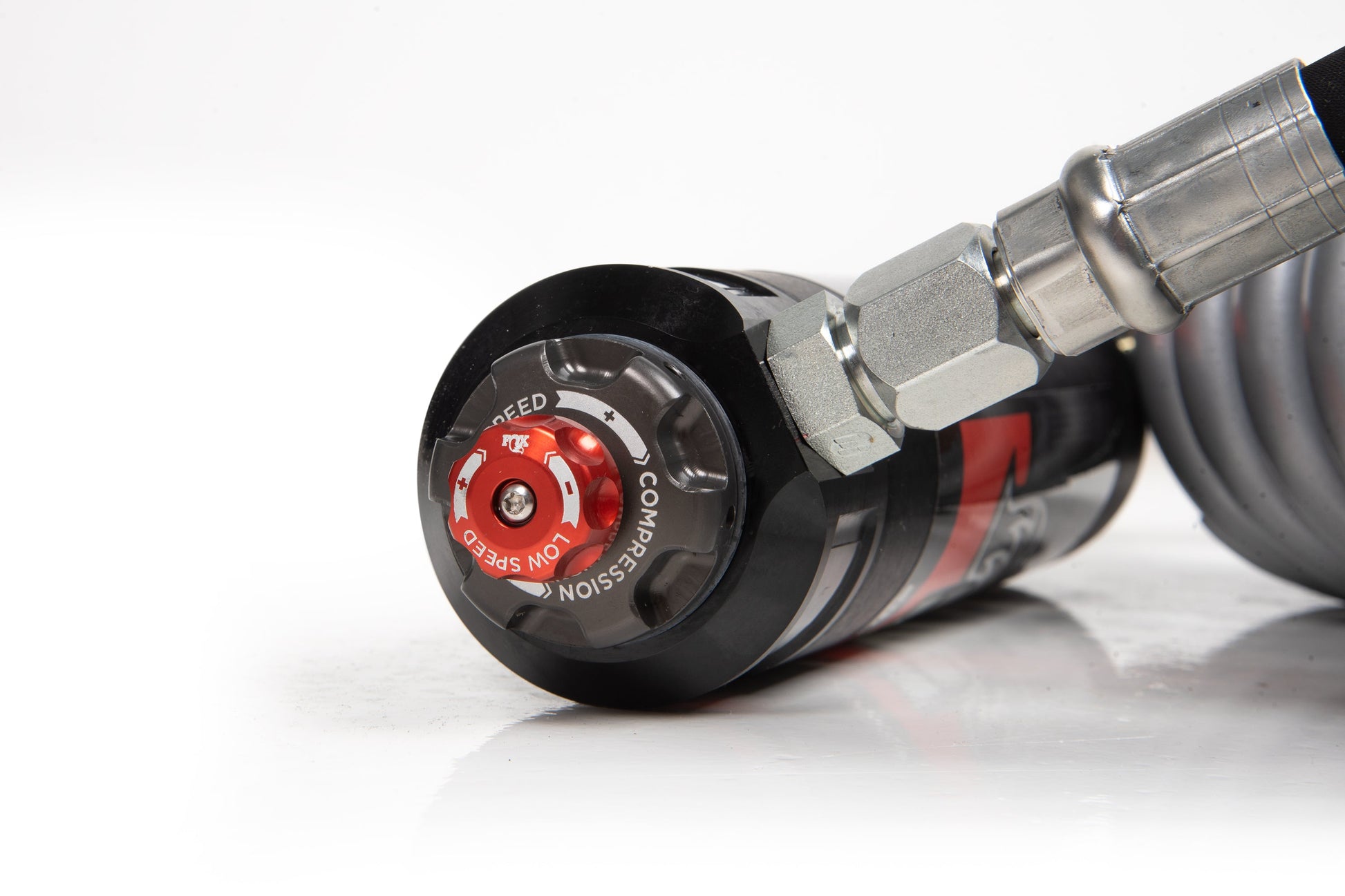

- The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.
- High clearance crossmember design maximizes ground clearance.
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series IFP gas rear shocks to improve ride and off-road performance
- Factory Protection Plus drivetrain warranty included
Recommended wheels & tires
- 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
