BDS Suspension 4 Inch Lift Kit · FOX 2.5 Performance Elite Coil-over Toyota Tacoma (16-23) 4WD
Regular price
$5,486.65
Regular price
B2B price
$5,486.65
Unit price
per
Shipping calculated at checkout.
- Front lift 4"
- Lift 4-5.5"
- Max tire 33 x 12.5
- Rear lift 4"
- Shocks included
- Install 8-10 hrs
Read the important notes before ordering
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will not work on TRD Pro Models
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Kit requires 18" or larger wheels, 17" wheels cannot be used.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS822PES |
| UPC / GTIN | 840416433197 |
| Front Lift Height | 4" |
| Front Lift Method | Coil-Over |
| Lift Height | 4-5.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 8-10 hrs |
| Difficulty | Difficult |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88406505 | FOX 2.5 Remote Reservoir DSC Front Coilover - Fits BDS Kit Only | 4 Inch Lift | Performance Elite Series | Toyota Tacoma (05-23) |
For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88426039 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 4-6 Inch Lift | Performance Elite Series | Toyota Tacoma (05-23) |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224954 | FOX 2.0 IFP Rear Shock | 3 Inch Lift | Performance Series | Toyota Tacoma (05-22) 4WD |
Features
- FOX 2.5 Performance Elite series coilovers and choice of FOX 2.0 or 2.5 (PE) rear shocks for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Recommended wheels & tires
- 33 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 20 x 9 and 4.5 in. Backspace
Installation
- Estimated install time8-10 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.

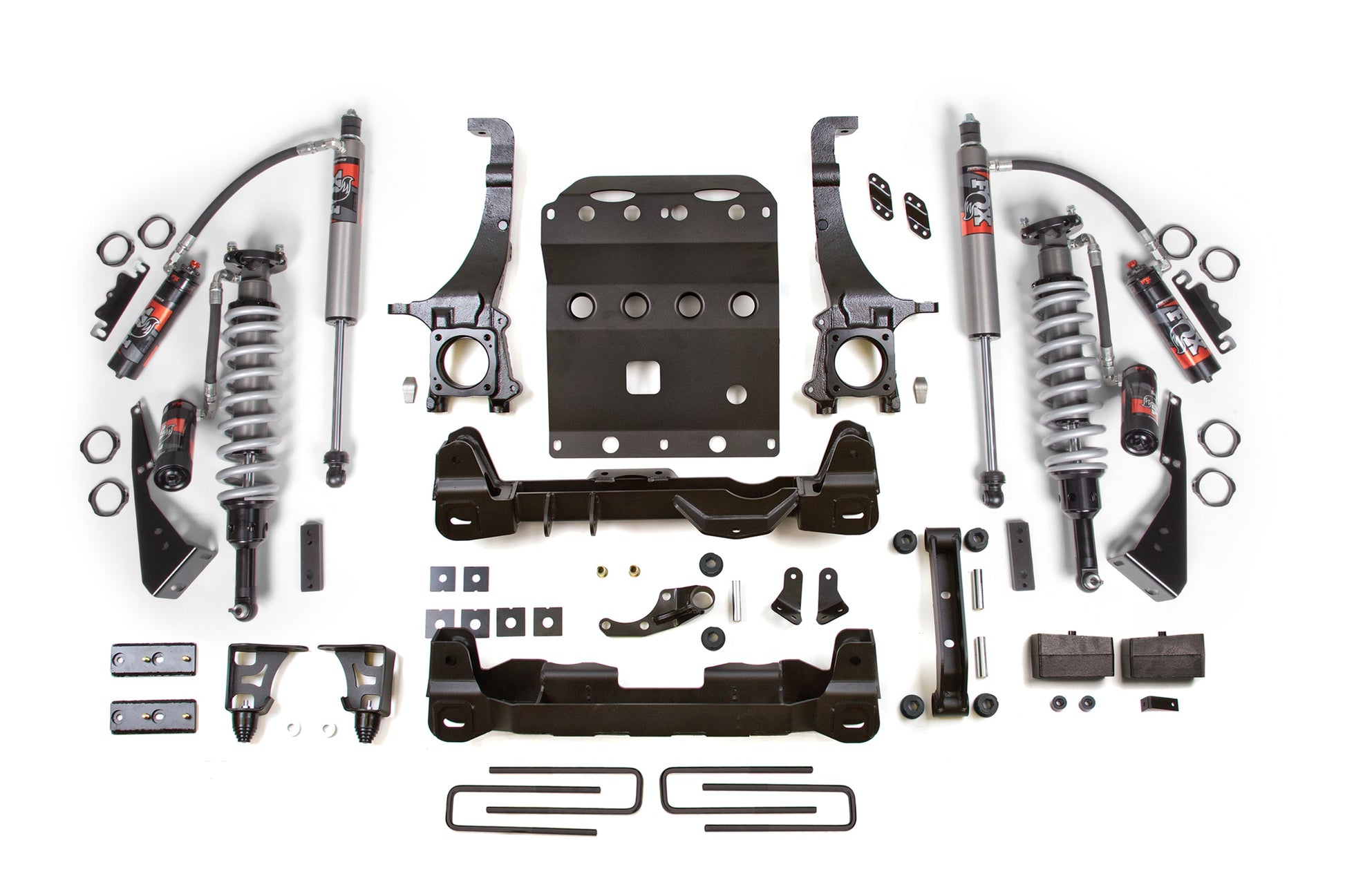

Overview
Get the ultimate look and performance for your Toyota Tacoma with the BDS 4-inch suspension lift kit featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new
aluminum-bodied FOX 2.5 Performance Elite (PE) coil-over shocks designed specifically to bolt-on performance for increased travel, more adjactability via DSC adjustment, and better heat
dispersion allowing you to soak up the roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with
clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great
on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE Coil-Overs with high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and
heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends
allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts and supplied
hardware packs provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts to lift and level the stance without effecting load capacity. For shocks you have the option of FOX 2.0
IFP performance series gas shocks or upgrade to the FOX 2.5 Performance Elite (PE) series remote reservoir shocks to match the front and further enhance vehicle performance and adjustability.
FOX 2.5 PE Coil-Overs
FOX 2.5 Performance Elite (PE) coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these aluminum bodied FOX 2.5-inch diameter coil-overs are the latest iteration of FOX suspension technology built for abuse. Lighter design, better heat dispersion, and race-proven components for the best all around product. These include DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning to easily dial in performance to match any terrain with the turn of the knobs.HD Components
All BDS kits come with a No Fine Print Warranty and to ensure our kits are the best they can be we use high-strength American steel, high clearance and fully welded crossmembers, the latest manufacturing processes and quality inspection every step of the way. Get the most out of your truck with BDS Suspension and FOX.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
