BDS Suspension 4 Inch Lift Kit | FOX 2.5 Coil-Over | Chevy Silverado or GMC Sierra 1500 (19-22) 4WD | Diesel

BDS Suspension 4 Inch Lift Kit | FOX 2.5 Coil-Over | Chevy Silverado or GMC Sierra 1500 (19-22) 4WD | Diesel

VARIANT ID:

$4,001.86
$4,001.86
SALE Sold out
Shipping calculated at checkout.
Coil Over Option
View full details

IMPORTANT: ALWAYS READ THE ENTIRE PRODUCT DESCRIPTION, INCLUDING IMPORTANT NOTES AND FITMENT INFORMATION, BEFORE MAKING A PURCHASE. FOR THE MOST UP-TO-DATE INFORMATION, REFERENCE THE MANUFACTURER'S WEBSITE. KIT COMPONENTS CONTAINED IN IMAGES AND DESCRIPTIONS MAY CHANGE BASED UPON YOUR SELECTIONS.

BDS will take your Chevy Silverado and GMC Sierra 1500 truck to the next level with their 4-inch lift kit suspension featuring FOX 2.5 coil-over shocks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

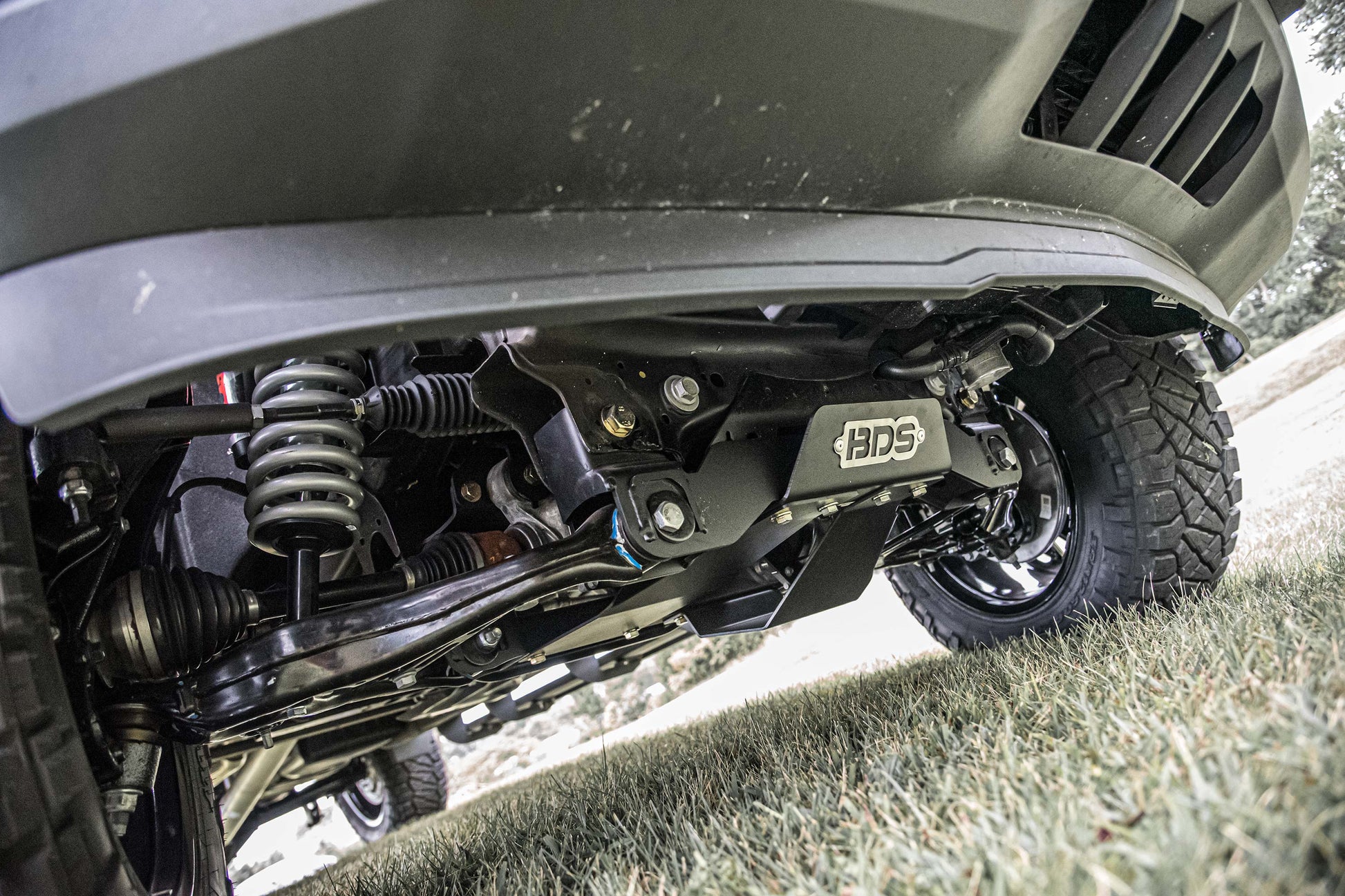

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned premium FOX 2.0 Performance Series shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features

  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Important Notes

  1. Requires frame bracket modification
  2. Actual ride height with coilovers is closer to 4.5" of lift (748F/748FDSC only)
  3. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  4. 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
  5. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.

Quick Specs

Installation

  • Install Difficulty: Difficult
  • Est. Install Time: 8 hrs
  • Required Tools: 36mm Socket, Cut Off Wheel or Equiv., Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment

Recommended Wheel & Tire Fitment

  • Option 1: 33 x 12.5 Tires w/ 17 x 9 Wheels & 4.5 Backspacing
  • Option 2: 33 x 12.5 Tires w/ 20 x 9 Wheels & 5 Backspacing
  • Option 3: 35 x 12.5 Tires w/ 20 x 9 Wheels & 6.25 Backspacing
  • Note: Minor plastic trimming may be required

Brand Overview

BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or off road, if your truck is running BDS Suspension, you've got the hardest charging, best driving, sharpest looking equipment money can buy.
