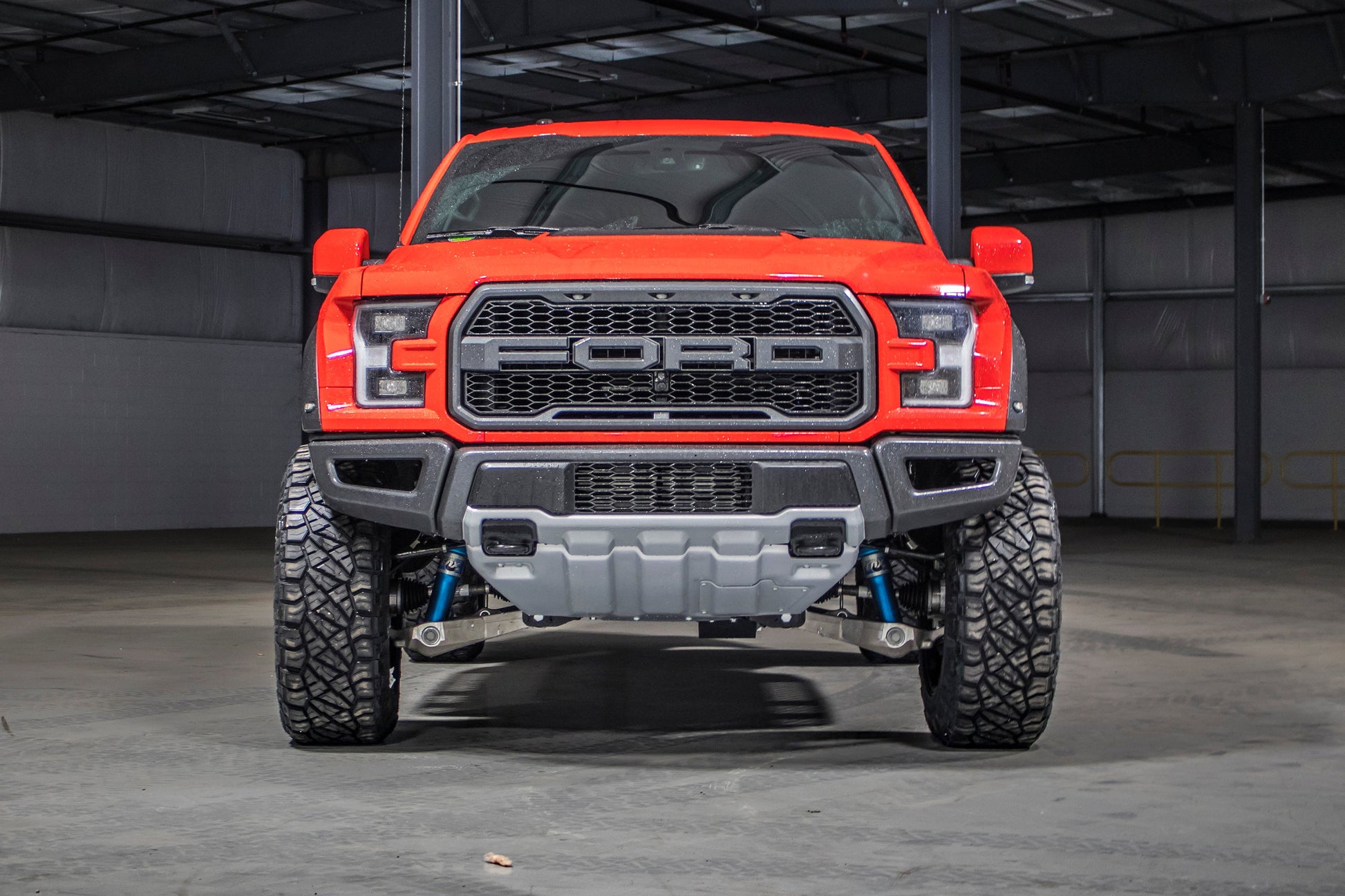

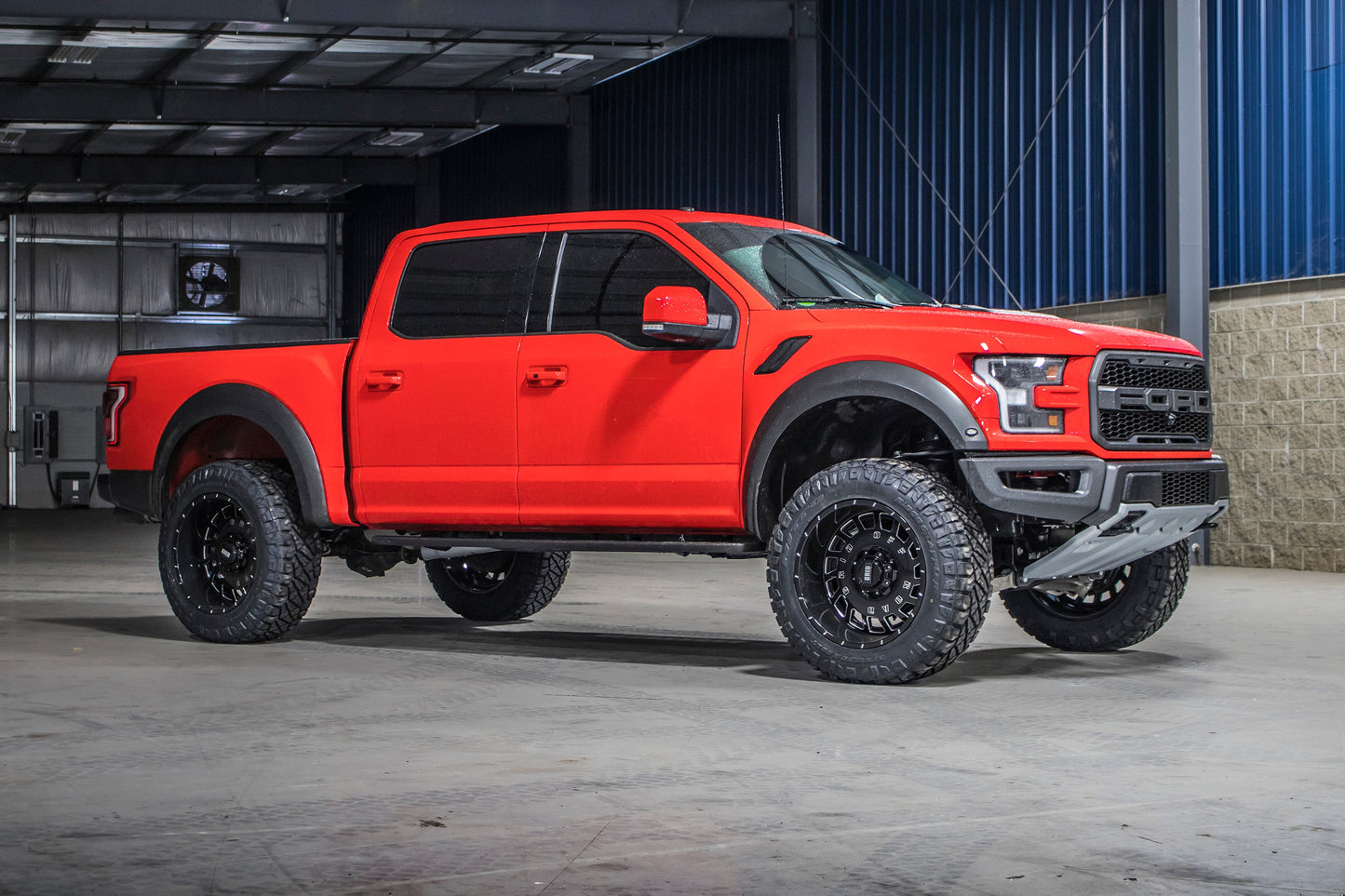

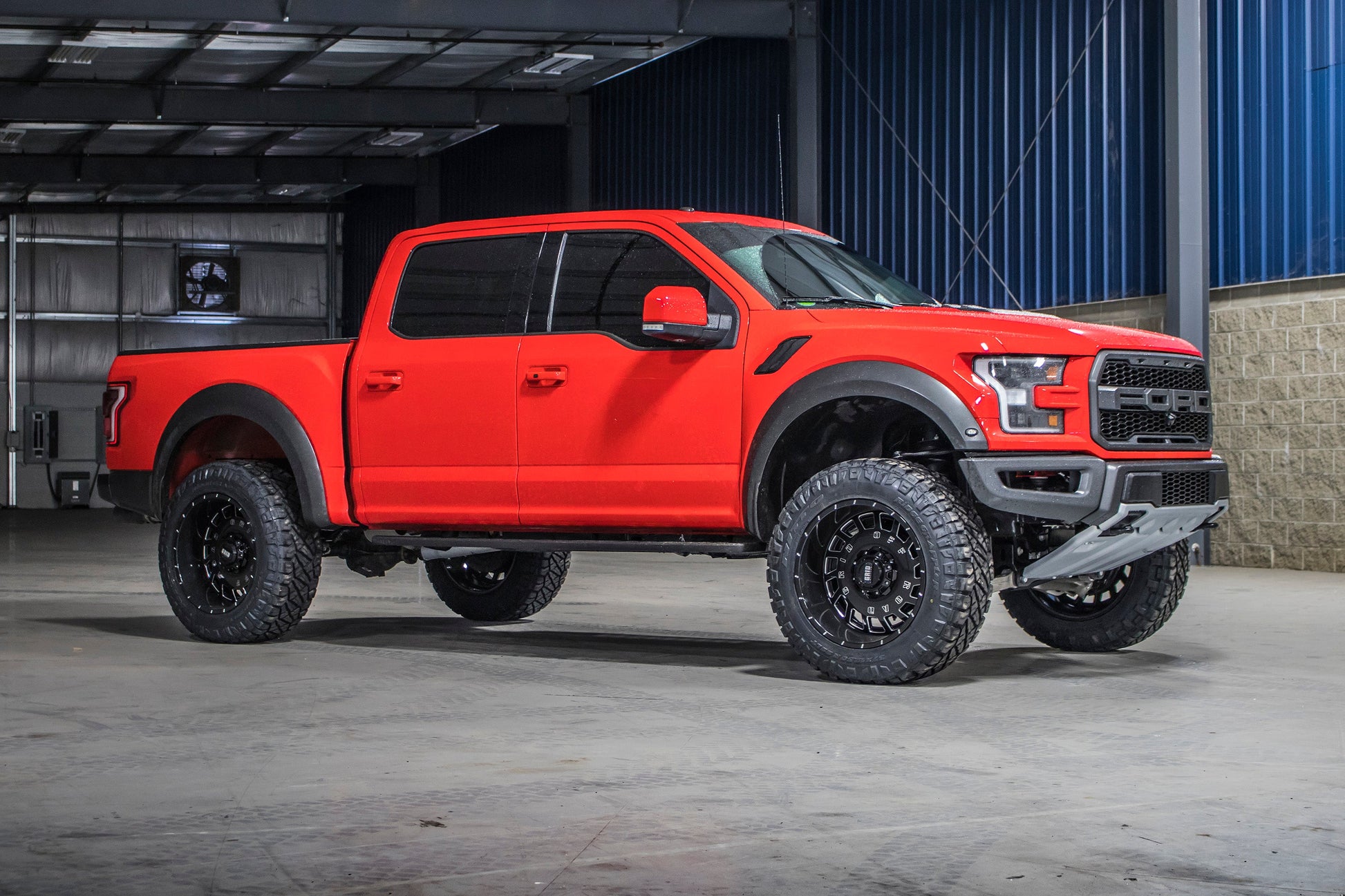

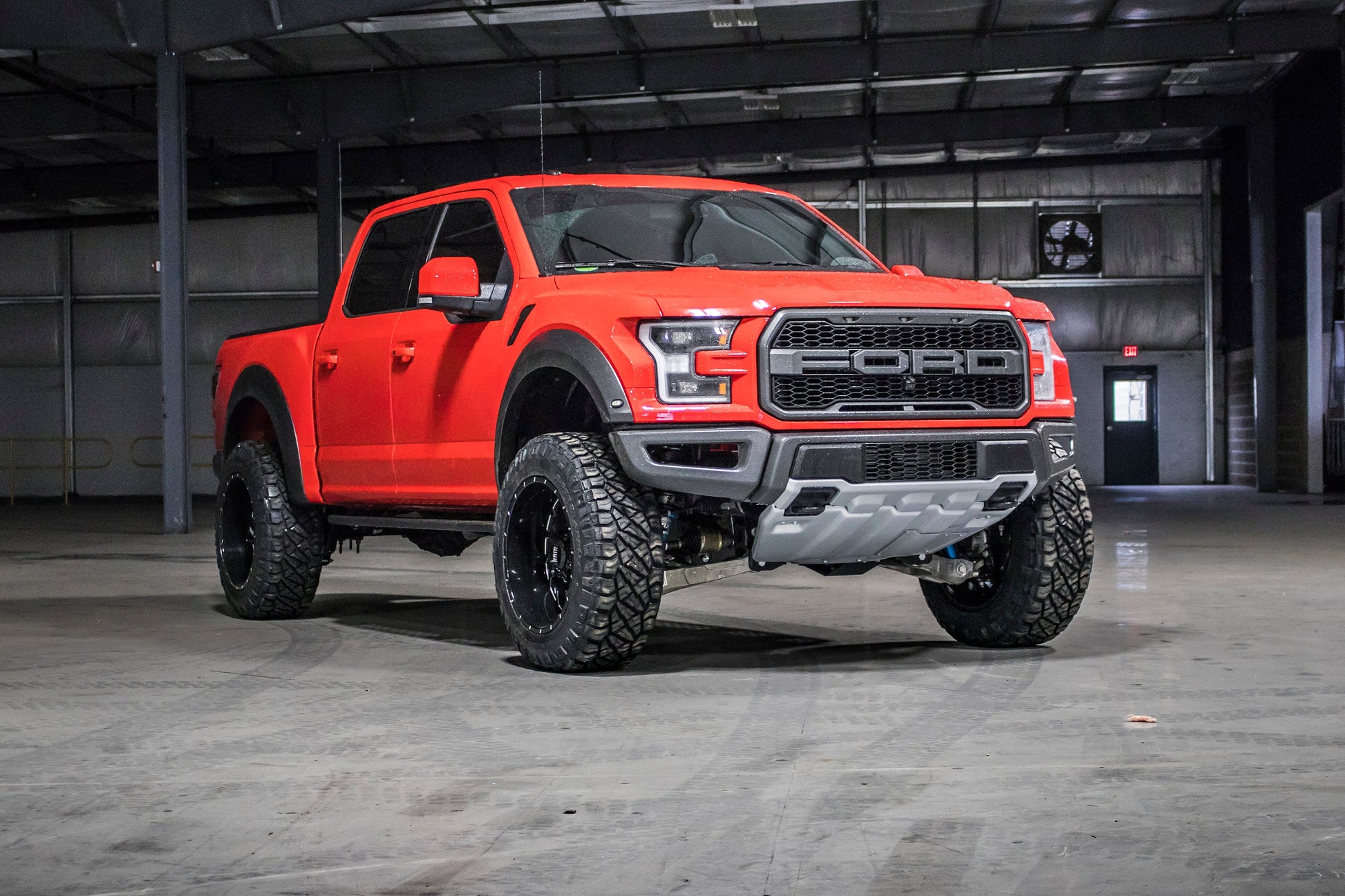

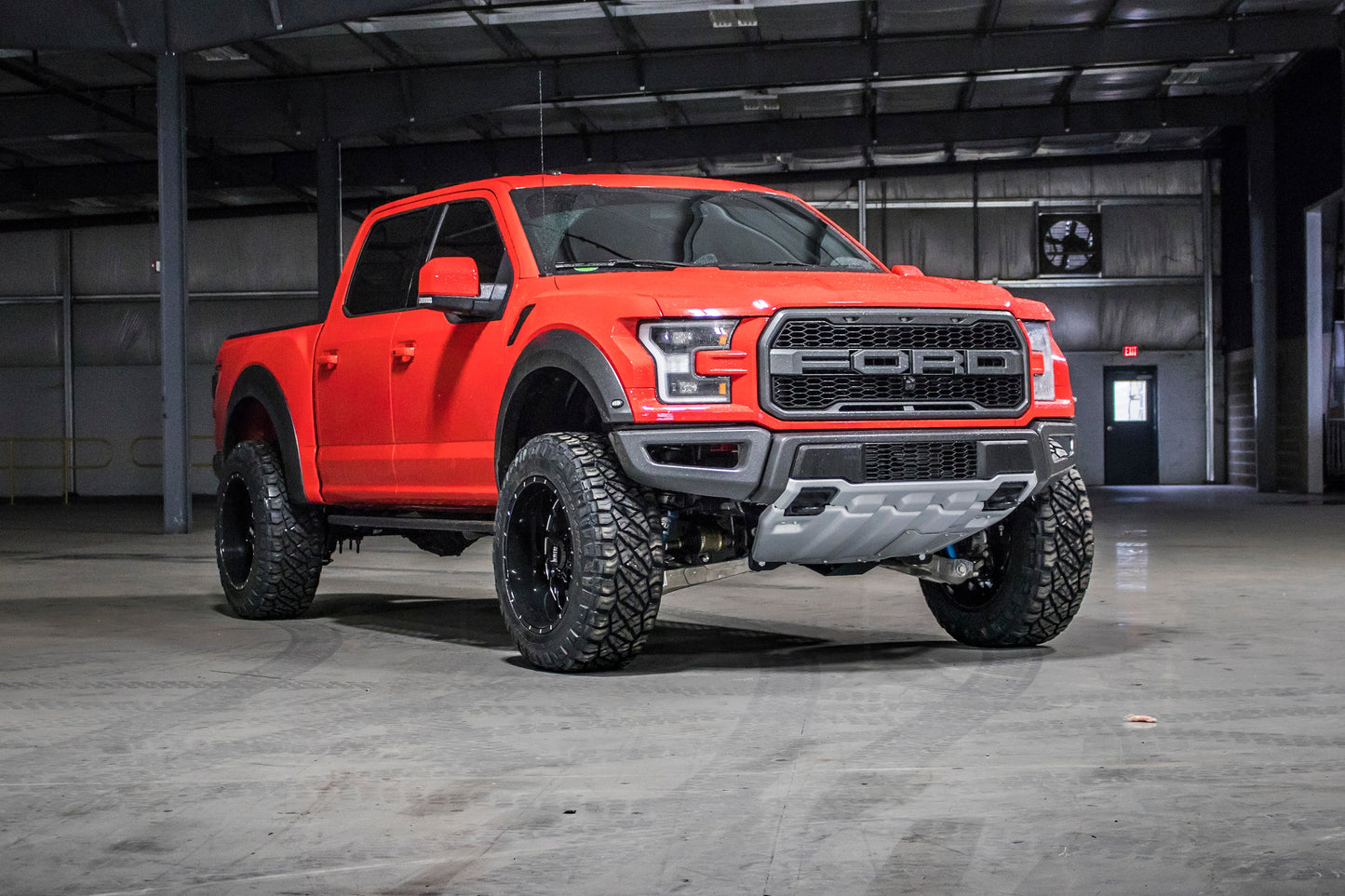

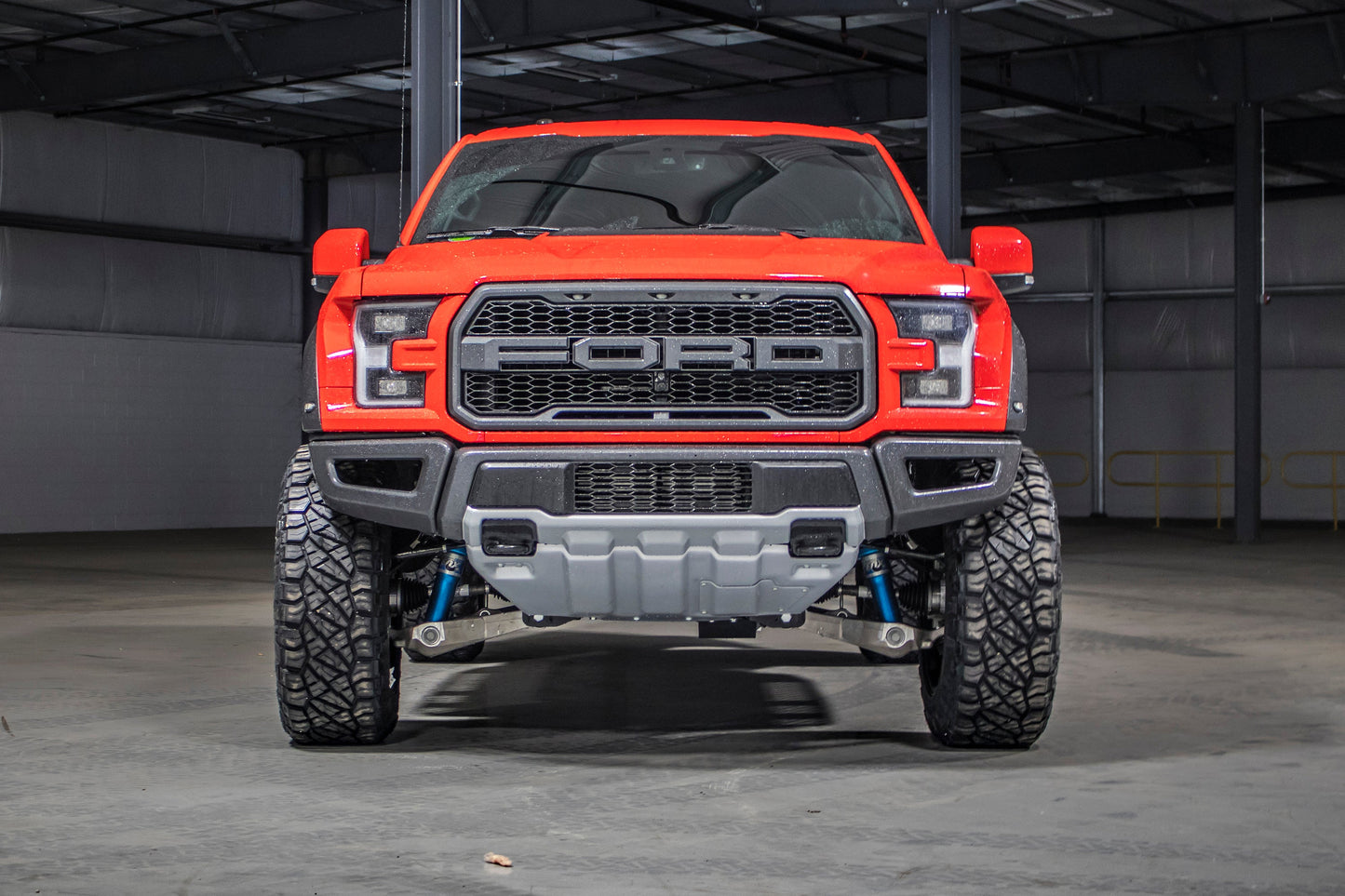

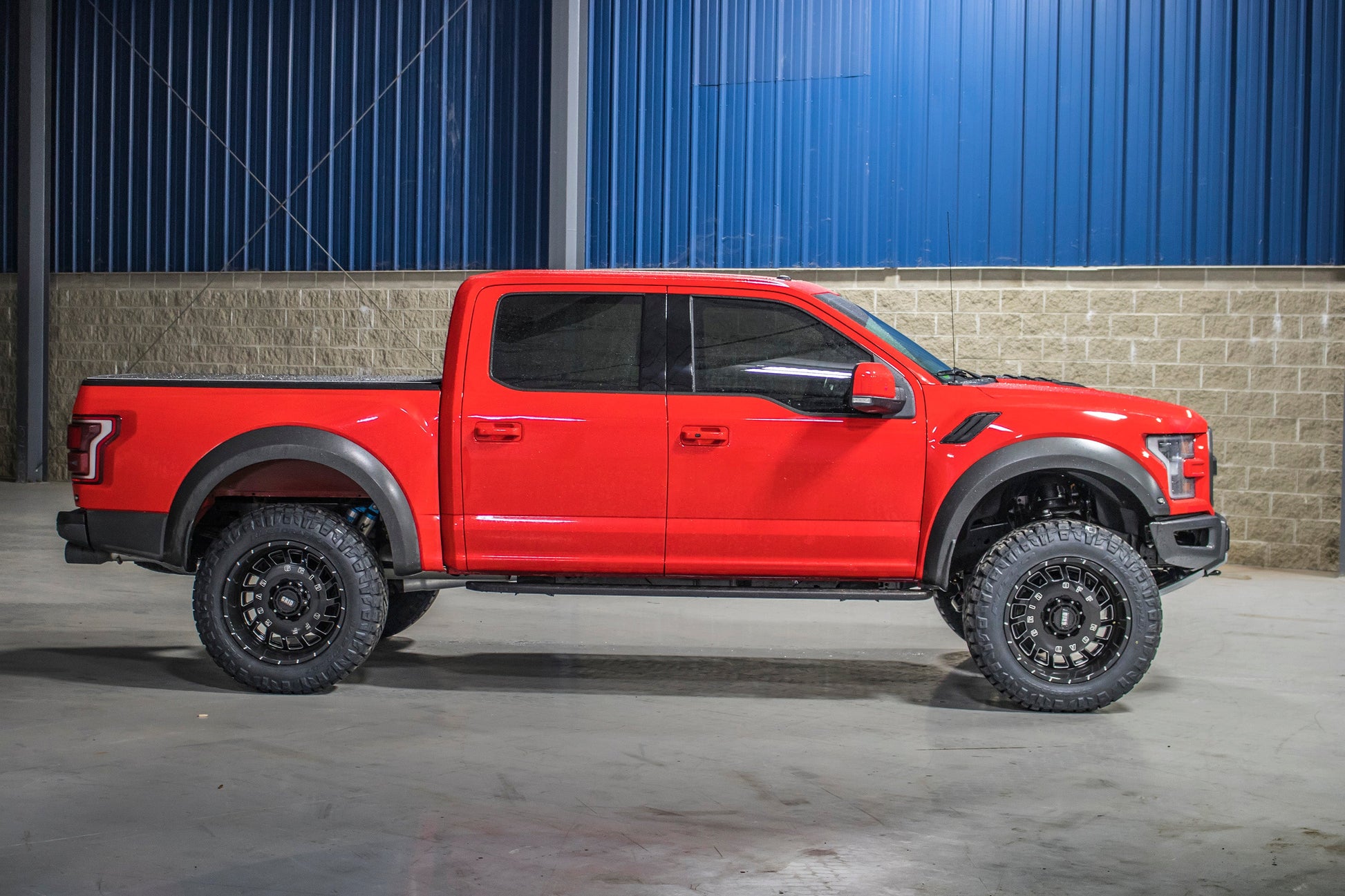

BDS Suspension 4 Inch Lift Kit Ford F150 Raptor (19-20) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 4"
- Shocks No
- Install 10 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Required frame bracket modification and welding.
- Stock wheels cannot be reinstalled with a lift.
- Check for proper tie rod end clearance if using 37x12.50 tires on 18x9 (5" BS) wheels
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1558H |
| UPC / GTIN | 840416403619 |
| Front Lift Height | 4" |
| Front Lift Method | Cross-Member |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Block |
| Shocks Included | No |
| Install time | 10 hrs |
| Difficulty | Moderate |
| Required Tools | Coil Spring Compressor, Cut-off Tool, Reciprocating Saw |

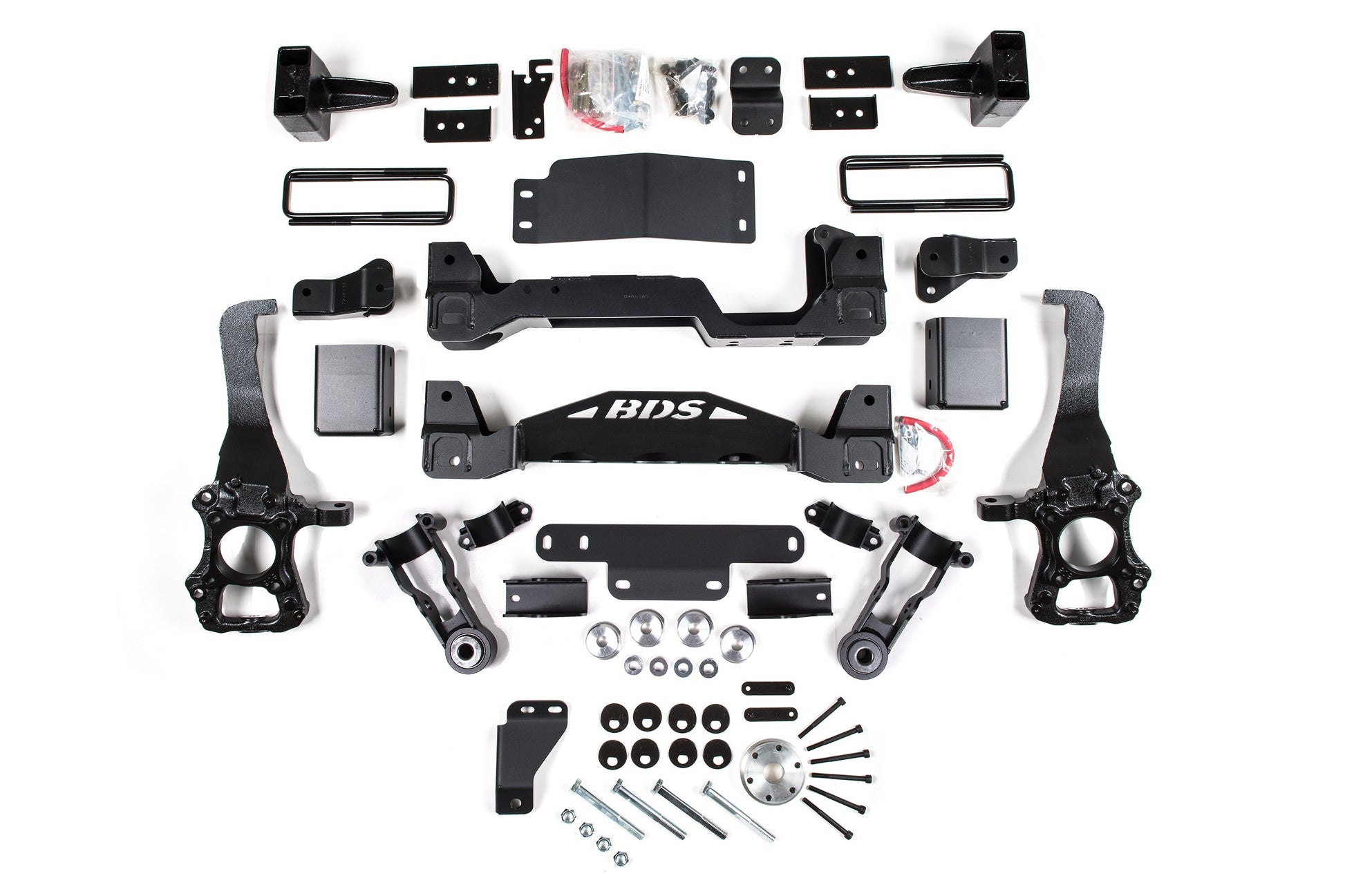

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS013439 | 2015-2020 Ford F150 4" Rear Block Kit |
| 1 | BDS023409 | 19-20 Ford Raptor 4.5" Box Kit |
| 1 | BDS023634 | 2015-2020 Ford F150 Knuckle Box Kit - DS |
| 1 | BDS023635 | 2015-2020 Ford F150 Knuckle Box Kit - PS |
| 1 | BDS023650 | 2015-2020 Ford F150 Front Box Kit (1of2) |
| 1 | BDS023651 | 2015-2020 Ford F150 Front Box Kit (2of2) |
Features
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Shock relocation brackets to maintain factory FOX Shocks
Fitment
| Years | Vehicle |
|---|---|
| 2019–2020 | Ford F-150 Raptor |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time10 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take full advantage of the Raptor's FOX LiveValve shocks when you install a 4-inch suspension lift kit by BDS Suspension on your 2019-2020 Ford F150 Raptor. After months of engineering, BDS determined that the 4" lift height allows for the best use of the factory equipped FOX Shocks and maintain full range of suspension travel allotted by the factory suspension components. This kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, lower strut extension, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength lift blocks and longer u-bolts to lift and level the stance along with rear shock relocation brackets to maintain the FOX internal bypass rear shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
