BDS Suspension 4 Inch Lift Kit Dodge Ram 1500 (2012) 4WD
- Front lift 4"
- Lift 4-5.5"
- Max tire 35 x 12.5
- Rear lift 2"
- Shocks included
- Install 10 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Control Arms
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- These trucks vary from 1"-3" tail high from the factory. Be sure to measure your vehicle before ordering. The 022209, 022309, and 022509 can all be substituted to achieve the desired stance.
- The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
- This kit is FMVSS No.126 Compliant
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1752FS |
| UPC / GTIN | 840416408478 |
| Front Lift Height | 4" |
| Front Lift Method | Cross-Member |
| Lift Height | 4-5.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Coil Spacer |
| Shocks Included | Yes |
| Install time | 10 hrs |
| Difficulty | Moderate |
| Required Tools | Grinder/Sanding Disc, Reciprocating Saw |

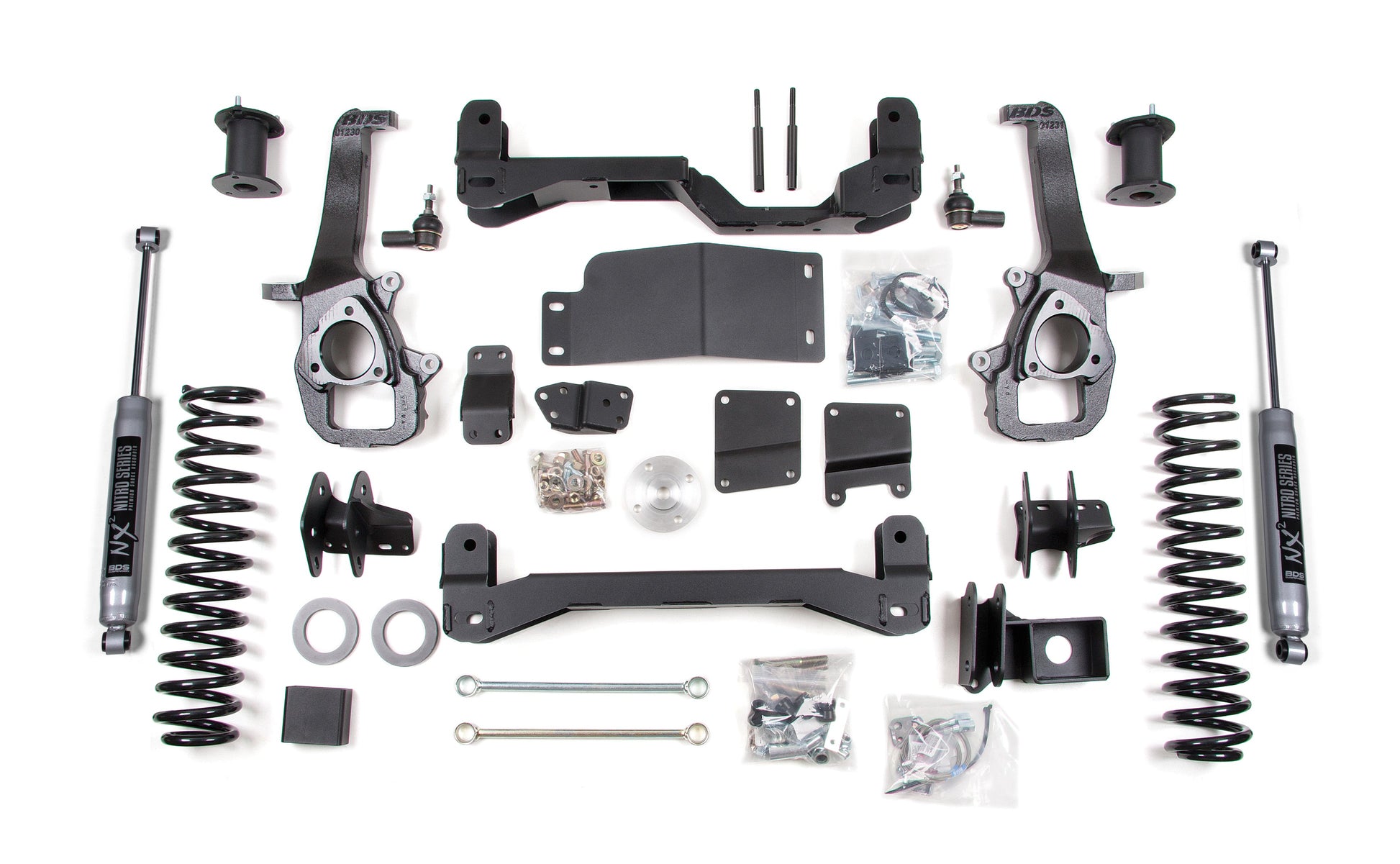

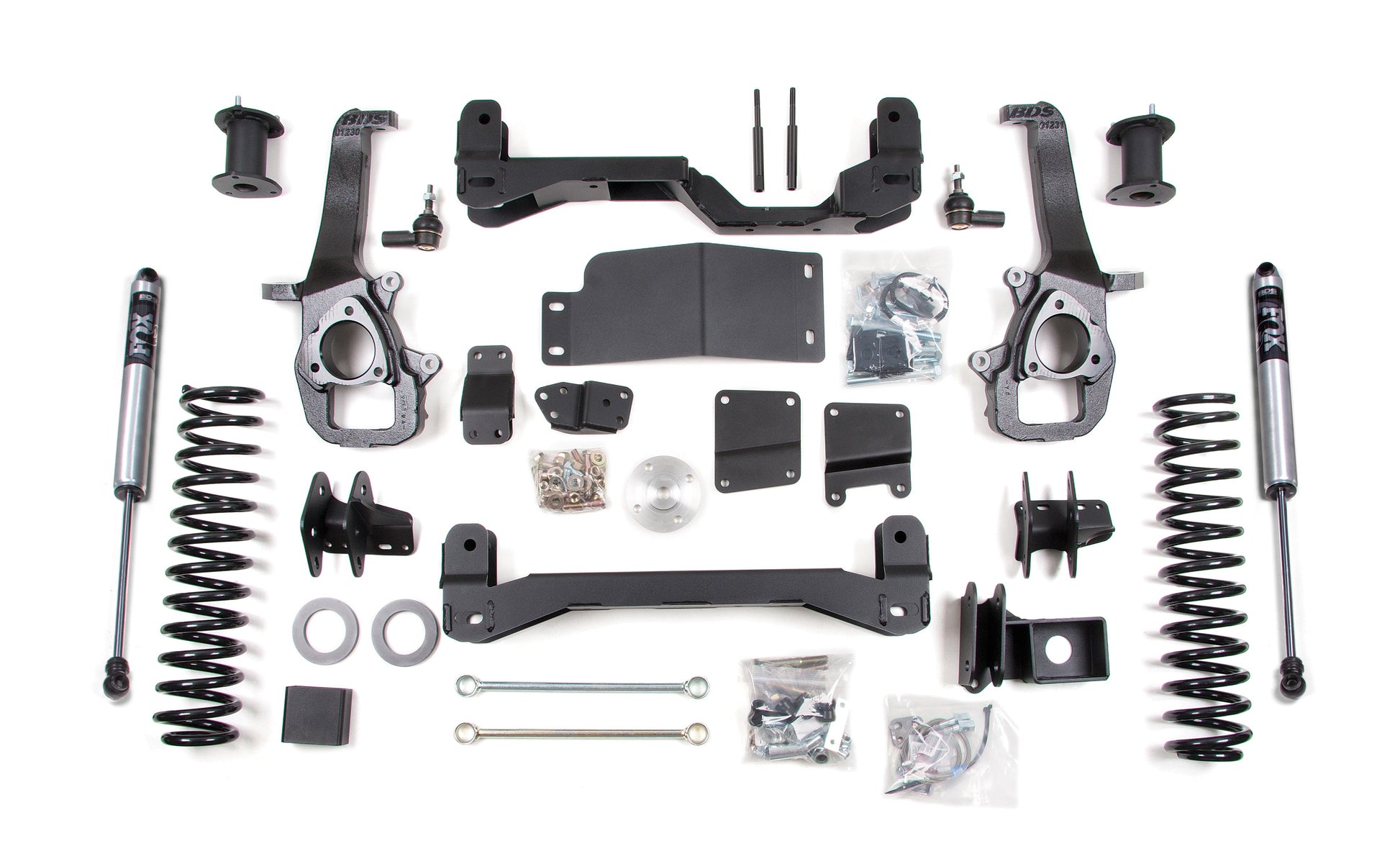

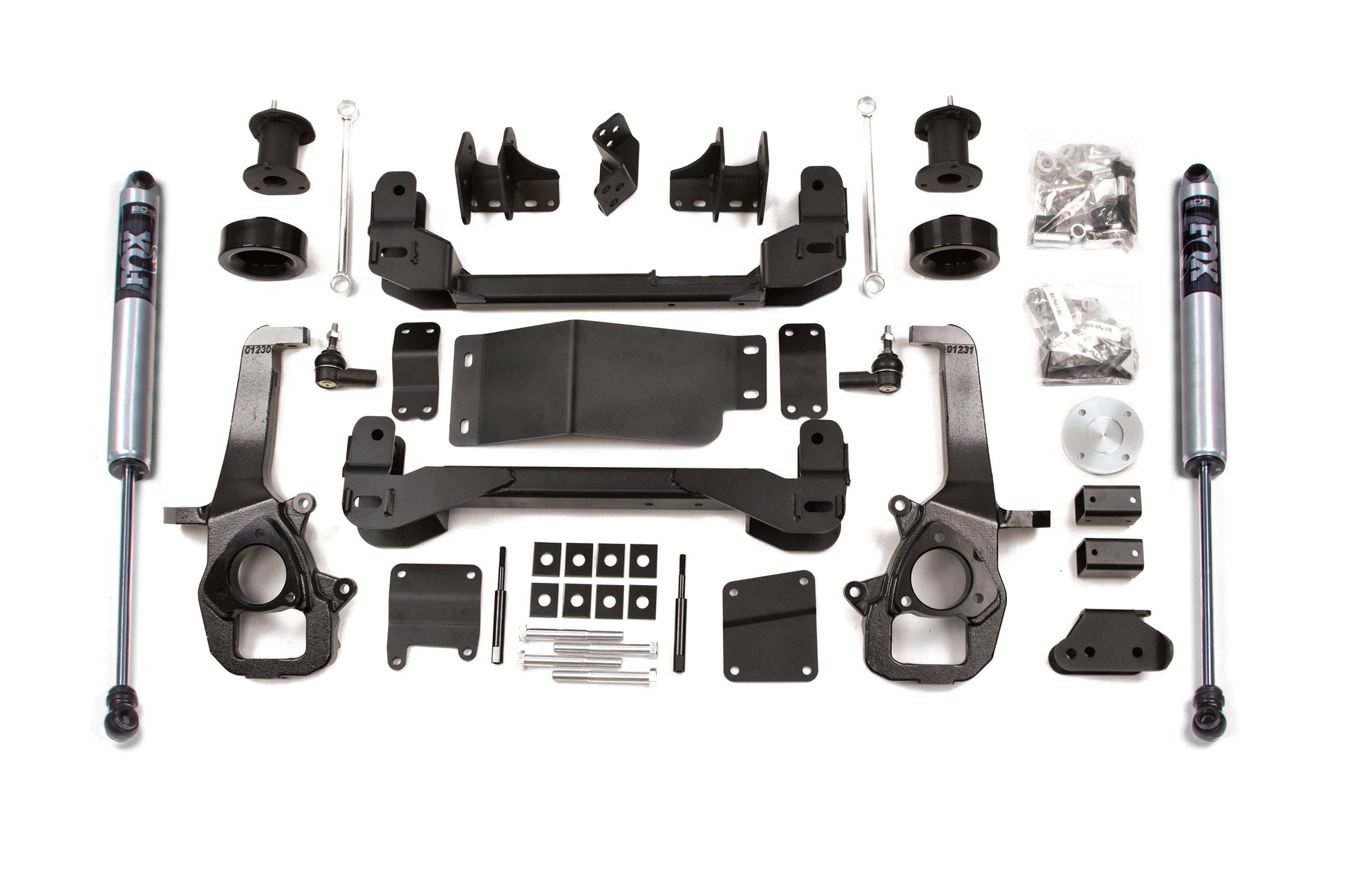

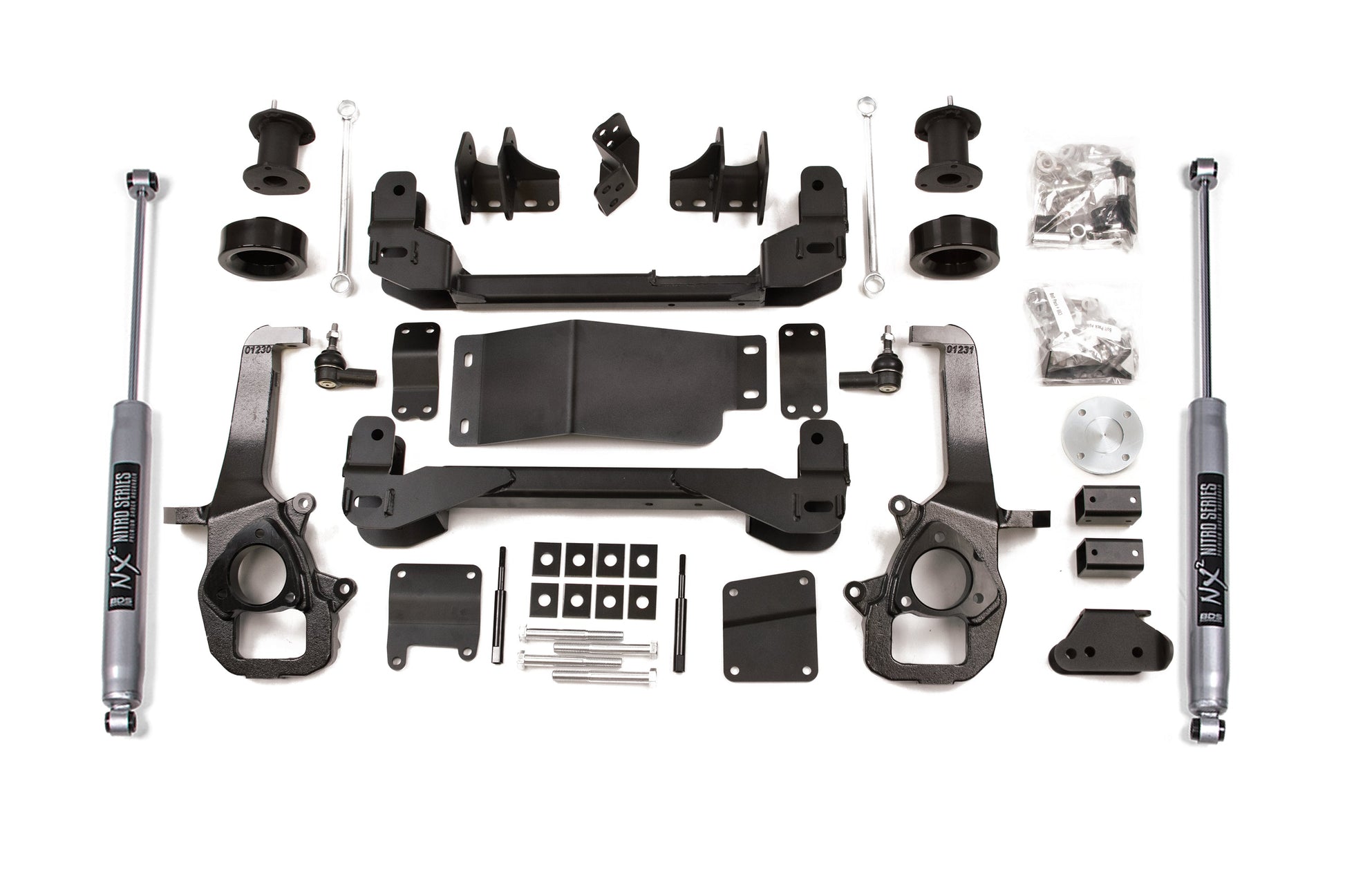

What's in the box
For: 3 Inch Coil Springs / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224758 | FOX 2.0 IFP Shock | Performance Series | 27.95 x 17.35 x 2- EB1/EB1 |
For: 3 Inch Coil Springs / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85758 | NX2 Nitro Shock | Multiple Fitments | 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
For: 2 Inch Coil Spacer / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224758 | FOX 2.0 IFP Shock | Performance Series | 27.95 x 17.35 x 2- EB1/EB1 |
For: 2 Inch Coil Spacer / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85758 | NX2 Nitro Shock | Multiple Fitments | 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
Features
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Fitment
| Years | Vehicle |
|---|---|
| 2012 | Ram 1500 4WD: Big Horn, Express, Laramie, Laramie Longhorn, Outdoorsman, SLT, ST, Sport, Tradesman |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time10 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
BDS steps up the performance and capability of the 2012 RAM 1500 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes a 2" coil spacer, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About BDS Suspension
BDS Suspension offers a wide range of premium suspension parts and components to complete the build of your high-performance truck or Jeep. All BDS products are made in the USA and powder coated for a superior ultra-premium appearance. On or... Shop all BDS Suspension
