BDS Suspension

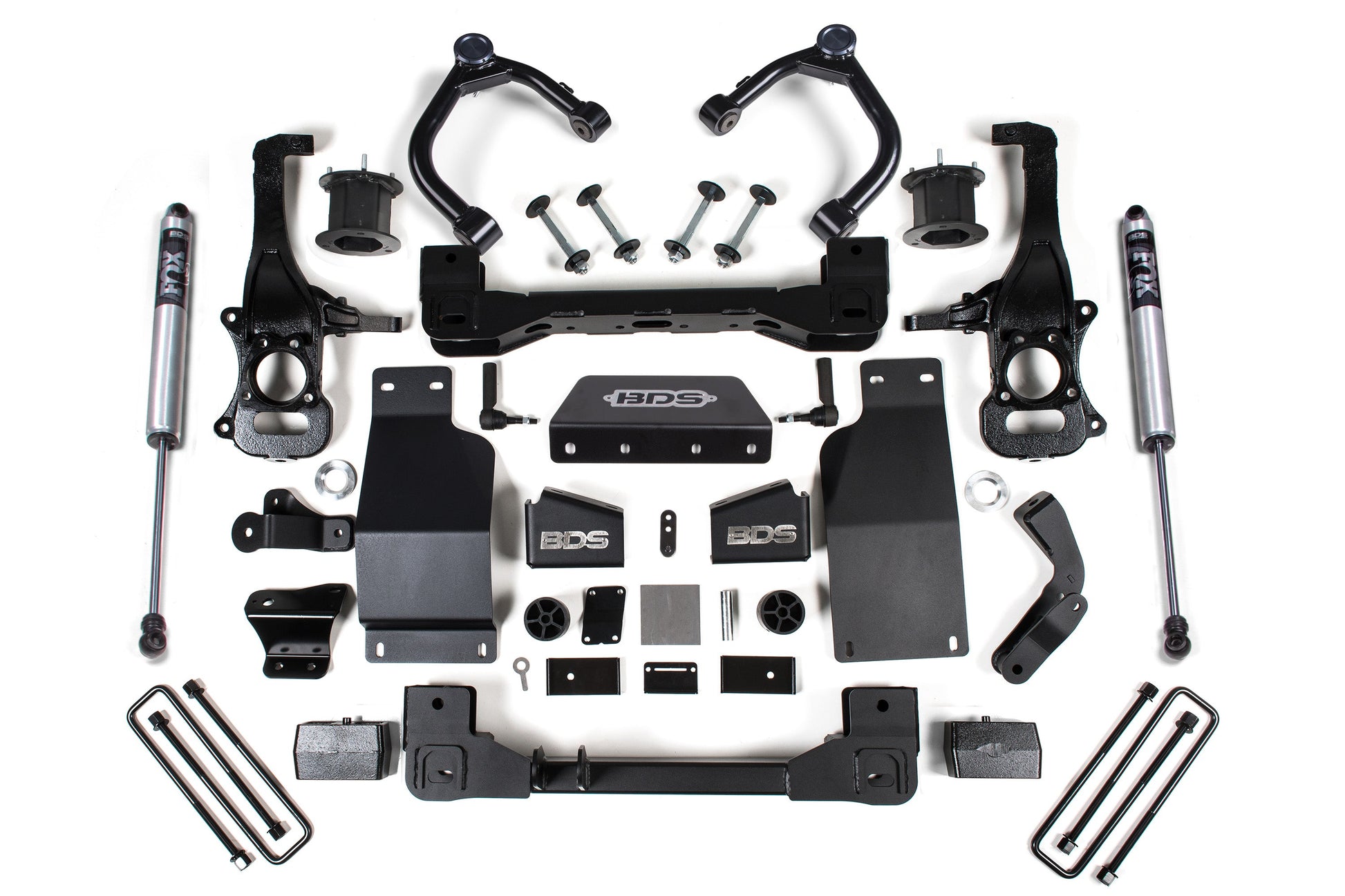

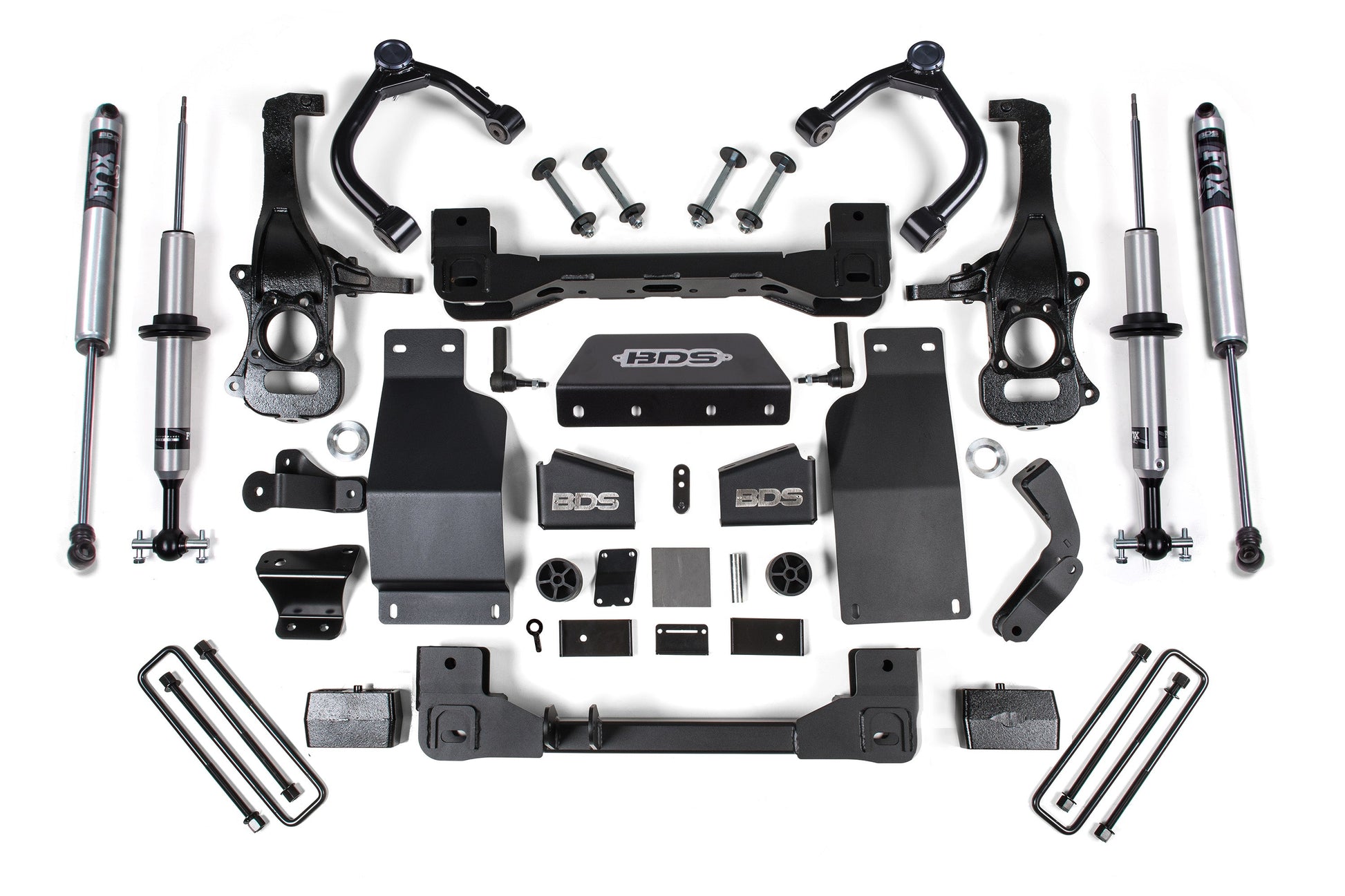

BDS Suspension 4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel

Name: BDS Suspension 4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel
Brand: BDS Suspension
SKU: BDS1802FS
Price: 2412.84 USD
Availability: InStock

BDS Suspension 4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel

PART #

$2,412.84

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Features

High clearance crossmember design maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
High-strength replacement upper control arms provide durability and serviceability
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included

Requires frame bracket modification
Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
2.7L models use Diesel kit for proper skid plate fitment
If equipped with a mono-leaf rear spring please use part #UBT4064.
Will not fit models equipped with ARC

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 20 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 6.25 in. Backspace

Instructions

Estimated Install Time: 8 hrs
Difficulty: Difficult
Required Tools: 36mm Socket, Cut Off Wheel or Equiv., Ball Joint Separation Tool, Reciprocating Saw, Welding Equipment
Instructions 1
