BDS Suspension 4.5 Inch Lift Kit · Long Arm Jeep Wrangler JK Rubicon (07-18) 4-Door
- Front lift 4.5"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 4.5"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will not fit 2WD models.
- The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
- Exhaust modification may be required.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1408FS |
| UPC / GTIN | 840416401127 |
| Front Lift Height | 4.5" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 4.5" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |

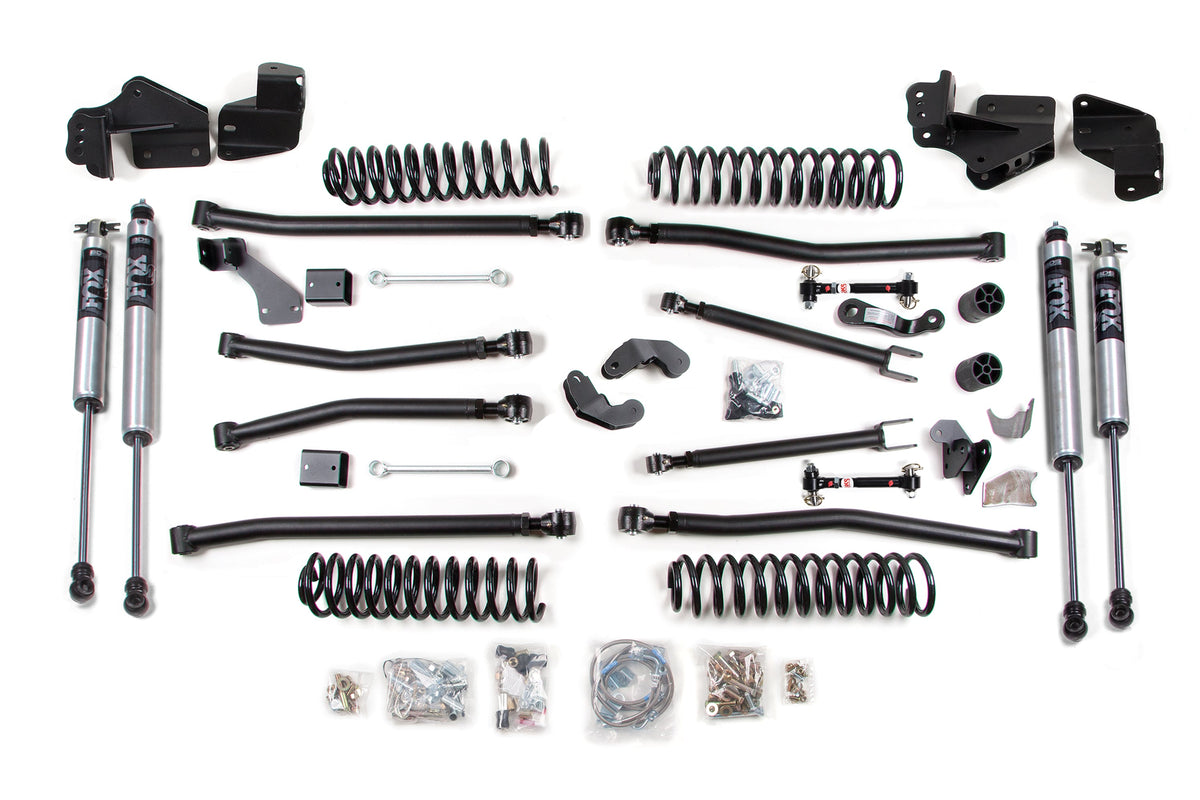

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS034411 | Coil Springs - Front | 5.5 Inch Lift - 2 Door & 4.5 Inch Lift - 4 Door | Jeep Wrangler JK (07-18) |
| 1 | BDS034419 | Coil Springs - Rear | 5.5 Inch Lift - 2 Door & 4.5 Inch Lift - 4 Door | Jeep Wrangler JK (07-18) |
| 1 | BDS124321 | Front Sway Bar Link Kit | Fits 5-6.5 Inch Lift | Jeep Wrangler JK (07-18) |
| 2 | FOX98224922 | FOX 2.0 IFP Front Shock | 4.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
| 2 | FOX98224959 | FOX 2.0 IFP Rear Shock | 4.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
Features
- Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 37" tires
Fitment
| Years | Vehicle |
|---|---|
| 2018 | Jeep Wrangler JK: Unlimited Rubicon |
| 2007-2017 | Jeep Wrangler: Unlimited Rubicon |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with 16 x 8 and 4.5 in. Backspace
Overview
Maximize the capability of your 2007-2018 Jeep Wrangler 4 Door Rubicon with this 4.5-inch lift kit featuring a long-arm conversion from BDS Suspension. Designed to improve stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 4-inch lift kit system enhances the factory 4-link by introducing a redesigned 4-link long arm, which improves articulation and offers better control throughout wheel travel.
Up front, the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the latest heavy-duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4" Pro-Ride coil springs capable of full coil bind, and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry.
In the rear, the kit utilizes new pivot mounts designed to work with the latest heavy-duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Long Arm Conversion
Upgrading the standard control arms to long arms adds strength, improves handling, and takes off-road articulation to the next level. This upgrade consists of massive 1/4" steel frame-mounted brackets to install the oversized upper and lower formed long arms. The arms are designed for maximum tire clearance, allowing the stock control arm tabs to remain in place on the vehicle. The upper arms are made of solid stock, while the heavy-wall tubular lower arms utilize oversized, greaseable polyurethane bushings for superior road vibration isolation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
