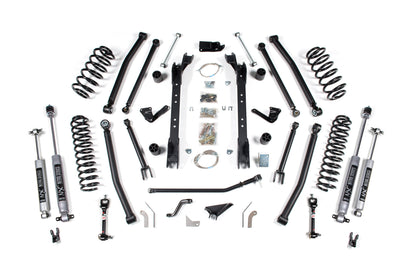

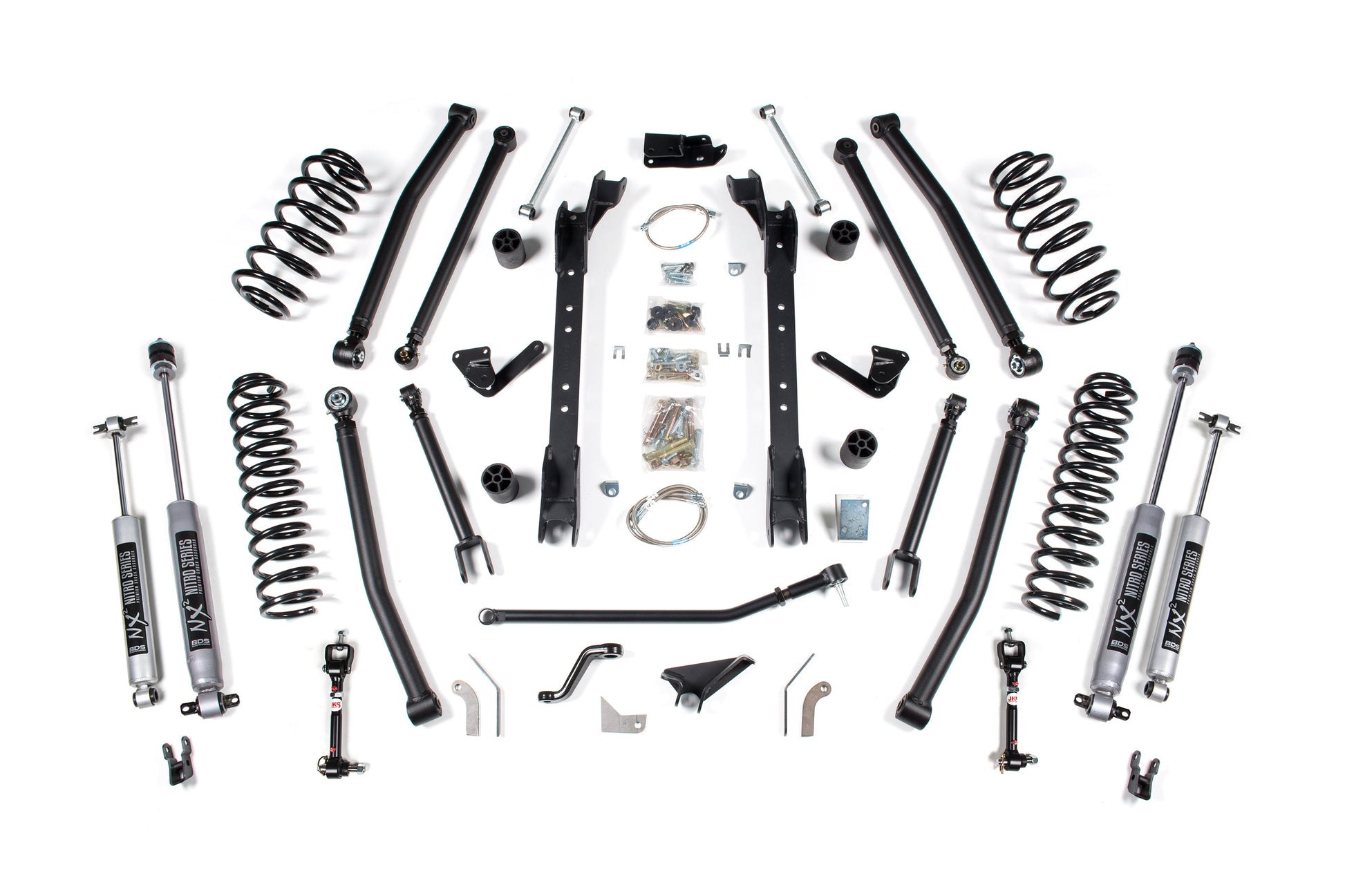

BDS Suspension 4.5 Inch Lift Kit - Long Arm Conversion Jeep Wrangler TJ (97-06)
- Front lift 4.5"
- Lift 4-5.5"
- Max tire 33 x 12.5
- Rear lift 4.5"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- A slip yoke eliminator kit and CV style rear drive shaft is required.
- May require exhaust modification.
- Some welding required.
- Long Arm systems also fit short wheelbase Rubicon models (not Unlimited models)
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS477H |
| UPC / GTIN | 840416416879 |
| Front Lift Height | 4.5" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 4.5" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Difficult |
| Required Tools | Cut Off Wheel or Equiv., Pitman Arm Puller, Reciprocating Saw, Welding Equipment |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS034451 | Coil Springs - Front | 4.5 Inch Lift | Jeep Wrangler TJ (97-06) |
| 1 | BDS034459 | Coil Springs - Rear | 4.5 Inch Lift | Jeep Wrangler TJ (97-06) |
| 2 | BDS85967 | NX2 Nitro Front Shock | 4.5 Inch Lift | Jeep Wrangler TJ/LJ (97-06) |
| 2 | BDS85976 | NX2 Nitro Rear Shock | 4 Inch Lift | Jeep Wrangler TJ/LJ (97-06) |
Features
- Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Front HD track bar to correctly position the front axle and control lateral movement
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 33" tires
Recommended wheels & tires
- 33 x 12.5 with 15 x 8 and 3.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyDifficult
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Maximize the capability of your 1996-2003 Jeep Wrangler TJ with this 4.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your Jeep up right with clearance for up to 33" tires. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimal handling and minimized road forces. The control arm geometry is setup using new subframe braces that incorporates the link mounts and an optional belly pan.
Up front the lift kit includes a subframe pivot mounts, heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4.5" Pro-Ride coil springs capable of full coil bind and bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, ultimate sway bar disconnects, and front adjustable track bar with flex joint fits into the existing frame mount and a drop pitman arm to improve the steering and handling geometry.
The rear kit utilizes Pro-Ride coil springs for maximum travel, stainless braided brake line, and rear track bar relocation bracket. Finish off the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Long Arm Conversion
Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.
Pro-Ride Coil Springs
A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
