BDS Suspension 4.5 Inch Lift Kit Jeep Wrangler JK (12-18) 4-Door
- Front lift 4.5"
- Lift 4-5.5"
- Max tire 37 x 12.5
- Rear lift 4"
- Shocks included
- Install 8 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will not fit 2wd models.
- The fixed front and rear lower control arms can be upgraded to the adjustable flex end arms listed in the accessories.
- The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan.
- Exhaust modification may be required.
- This kit is FMVSS No.126 Compliant
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1405FPE |
| UPC / GTIN | 840416401042 |
| Front Lift Height | 4.5" |
| Front Lift Method | Coil Spring |
| Lift Height | 4-5.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 4" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |
| Install time | 8 hrs |
| Difficulty | Moderately Easy |

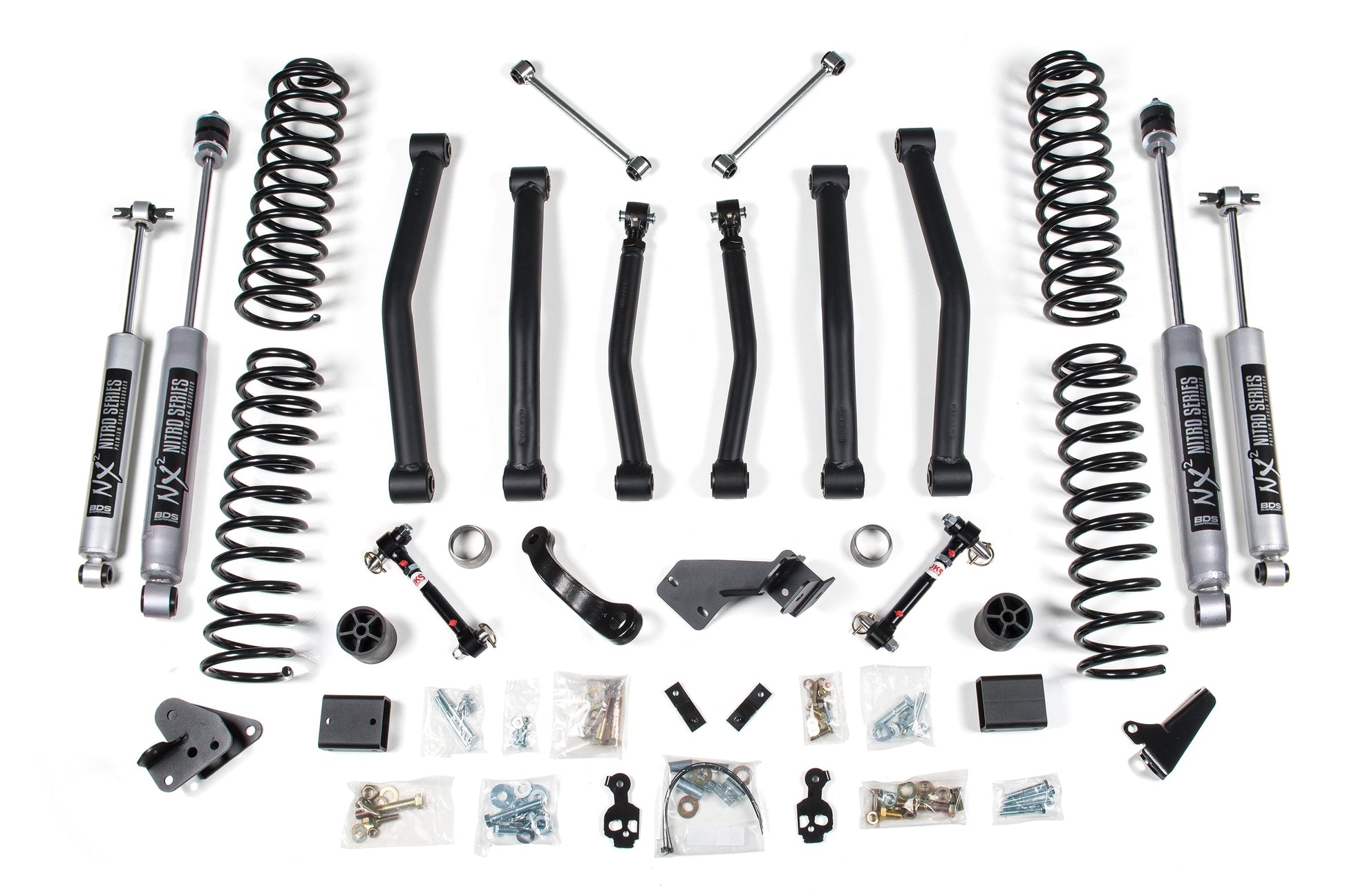

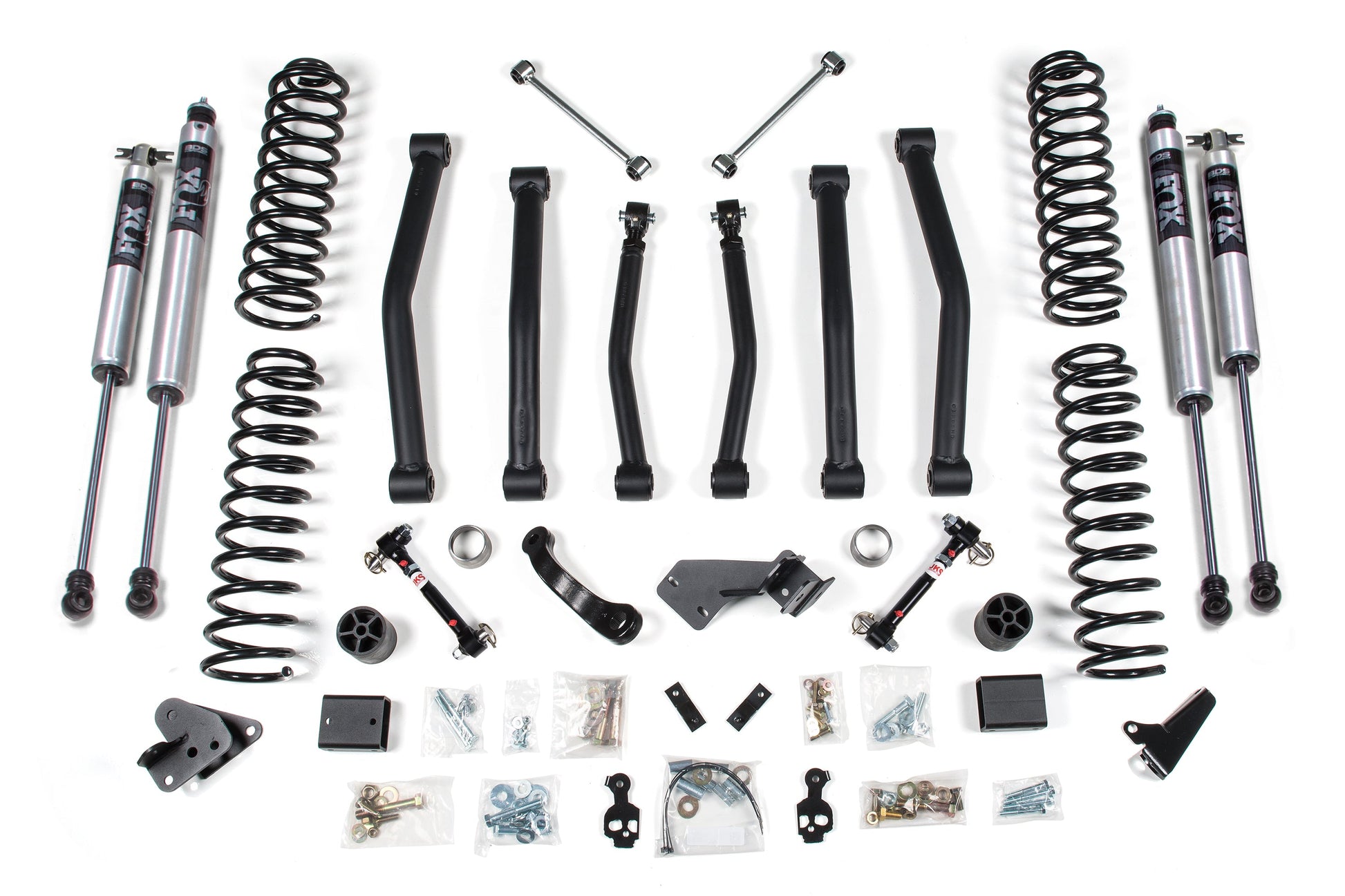

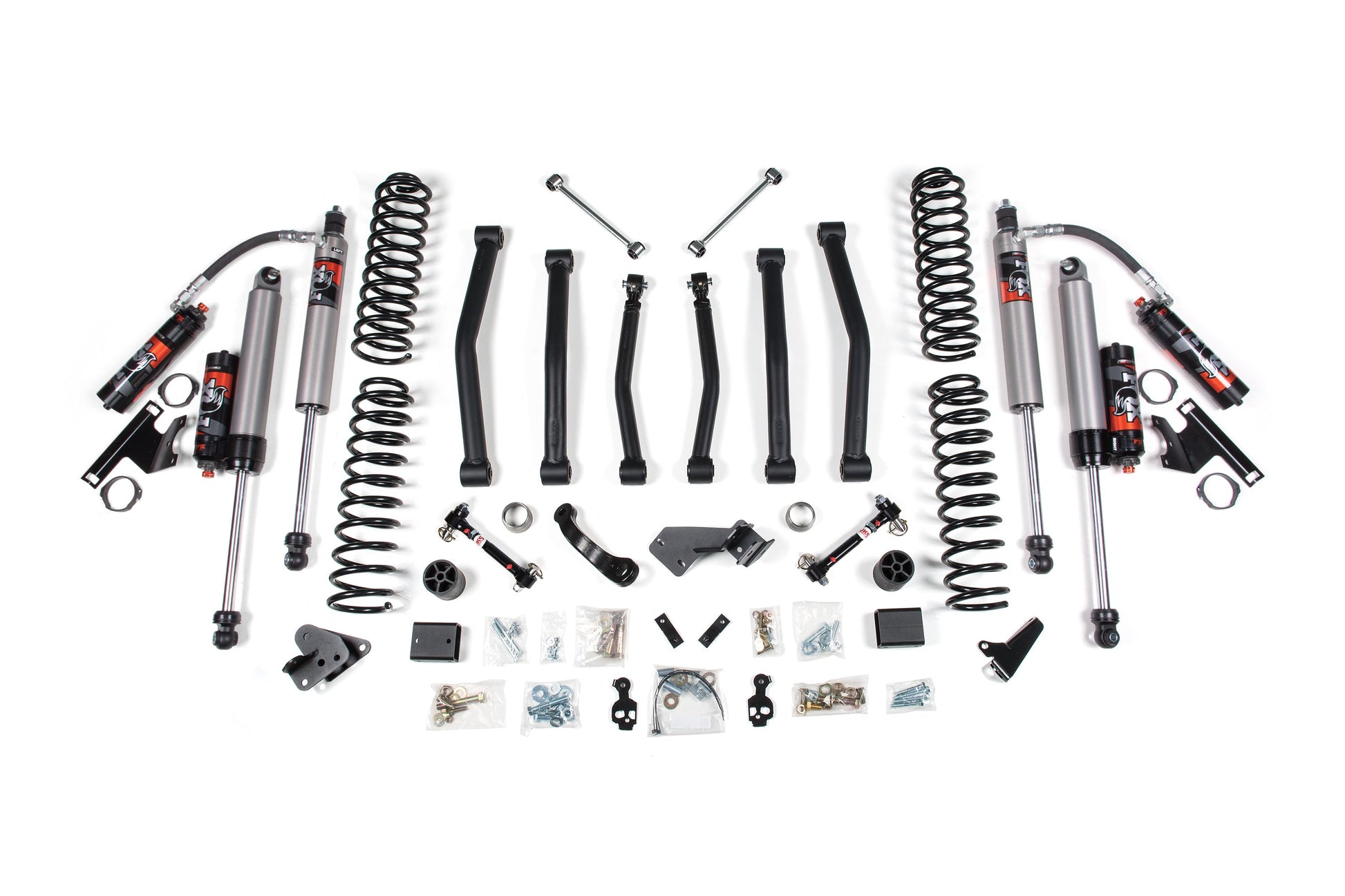

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS034411 | Coil Springs - Front | 5.5 Inch Lift - 2 Door & 4.5 Inch Lift - 4 Door | Jeep Wrangler JK (07-18) |
| 1 | BDS034419 | Coil Springs - Rear | 5.5 Inch Lift - 2 Door & 4.5 Inch Lift - 4 Door | Jeep Wrangler JK (07-18) |
| 1 | BDS124314 | Exhaust Extension Kit | Jeep Wrangler JK (12-18) |
| 1 | BDS124331 | Fixed Control Arms - Rubber Bushing | Front Lower | Jeep Wrangler JK (07-18) |
| 1 | BDS124339 | Fixed Control Arms - Rubber Bushing | Rear Lower | Jeep Wrangler JK (07-18) |
For: FOX 2.5 Performance Elite / Disconnects
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326093 | FOX 2.5 Front Shocks w/ DSC Reservoir | 4.5-6 Inch Lift | Performance Elite Series | Jeep Wrangler JK (07-18) |
| 1 | FOX88326094 | Kit: 2007-2018 Jeep JK Rear, 2.5 Truck PES, P/B, 4.5-6” Lift, DSC |
For: FOX 2.0 Performance Series / Disconnects
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224921 | FOX 2.0 IFP Front Shock | 2-3 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
| 2 | FOX98224959 | FOX 2.0 IFP Rear Shock | 4.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
For: NX2 Nitro Series / Disconnects
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85959 | NX2 Nitro Rear Shock | 4.5 Inch Lift | Jeep Wrangler JK (07-18) |
For: FOX 2.0 Performance Series / Fixed Links
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224921 | FOX 2.0 IFP Front Shock | 2-3 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
| 2 | FOX98224959 | FOX 2.0 IFP Rear Shock | 4.5 Inch Lift | Performance Series | Jeep Wrangler JK (07-18) |
For: NX2 Nitro Series / Fixed Links
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85700 | NX2 Nitro Shock | Multiple Fitments | 25.20 x 15.20 x 2-3/8 - S50/EB2 |
| 2 | BDS85959 | NX2 Nitro Rear Shock | 4.5 Inch Lift | Jeep Wrangler JK (07-18) |
Features
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- New control arms to properly control the front and rear axle positions
- Rear track bar bracket repositions rear axle under vehicle
- Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
- Allows clearance for 37" tires
Fitment
| Years | Vehicle |
|---|---|
| 2018 | Jeep Wrangler JK: Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited Willys Wheeler |
| 2016 | Jeep Wrangler: Unlimited 75th Anniversary, Unlimited Black Bear, Unlimited Sport S |
| 2015 | Jeep Wrangler: Unlimited Altitude, Unlimited Hard Rock |
| 2012-2017 | Jeep Wrangler: Unlimited Rubicon, Unlimited Sahara, Unlimited Sport |
| 2017 | Jeep Wrangler: Unlimited Smoky Mountain, Unlimited Winter Edition |
| 2014 | Jeep Wrangler: Unlimited Willys Wheeler |
| 2012 | Jeep Wrangler: Unlimited, Unlimited Altitude, Unlimited Mountain |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 37 x 12.5 with 16 x 8 and 4.5 in. Backspace
Installation
- Estimated install time8 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2012-2018 Jeep Wrangler JK 4 Door to the next level and improve the ride with this 4.5-inch lift kit from BDS Suspension. Designed to strengthen stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front, the lift kit includes 4" Pro-Ride coil springs, capable of full coil bind, and 3" bump stop extensions to control compression travel while increasing wheel travel. Also included are brake line brackets, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed-length lower control arms featuring OE-grade rubber bushings, which reposition the front axle for proper alignment.
In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle, this kit includes fixed-length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameters. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle, paired with a heavy-duty track bar drop bracket to keep them in phase throughout suspension travel while recentering the front axle.
Lift your 12–18 Jeep Wrangler JK 4-Door 4.5" with Pro-Ride coil springs, NX2 or FOX shocks. Clearance for up to 37" tires.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
