BDS Suspension 3 Inch Lift Kit w/ Radius Arm Ram 3500 (19-24) 4WD · Diesel
- Front lift 3"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 2"
- Shocks included
- Install 4-5 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- 1. Will NOT fit rear air-ride equipped models.
- 2. Diesel models only.
- 3. If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1654FPE |
| UPC / GTIN | 840416405972 |
| Front Lift Height | 3" |
| Front Lift Method | Coil Spring |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 4-5 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS032302 | Coil Springs | 3 Inch Lift - Diesel / 4 Inch Lift - Gas | RAM 2500 (14-27) & 3500 (13-27) |
| 1 | BDS122321 | Radius Arm Upgrade | Ram 2500 (14-27) and 3500 (13-27) 4WD |

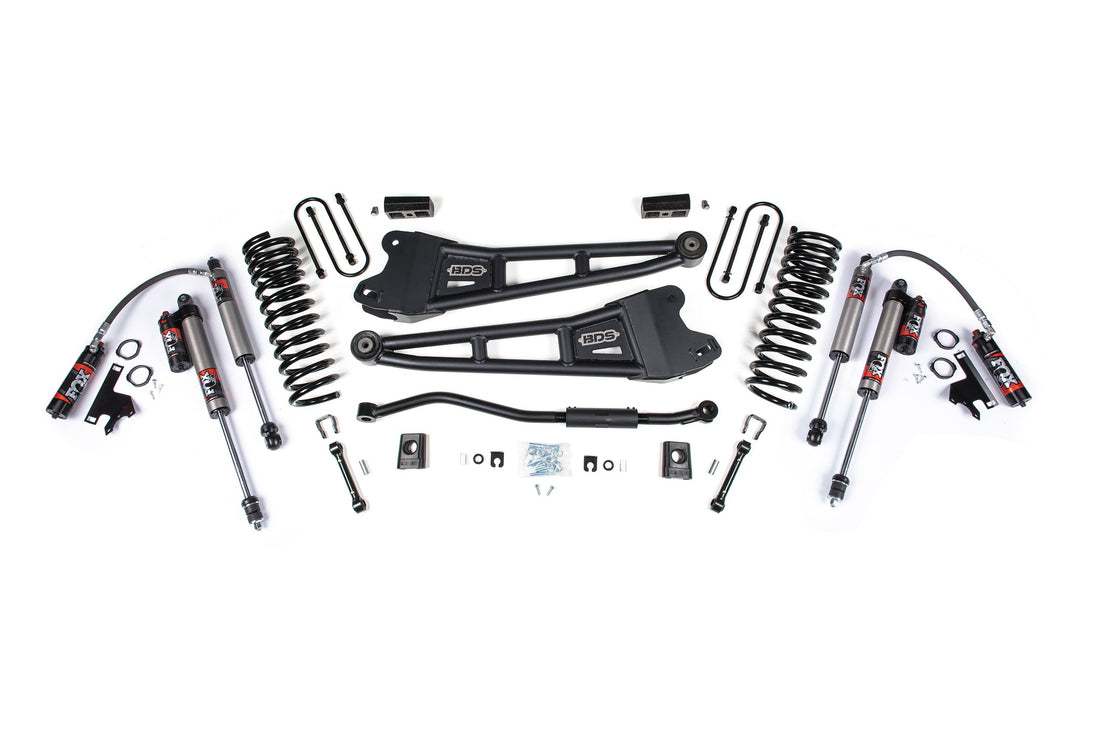

For: With Factory Rear Overload Leaf / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326062 | FOX 2.5 Front Shocks w/ DSC Reservoir | 0-1.5 Inch Lift | Performance Elite Series | Ram 2500 (14-26) and 3500 (13-27) 4WD |
| 1 | FOX88326101 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ram 3500 (13-27) |

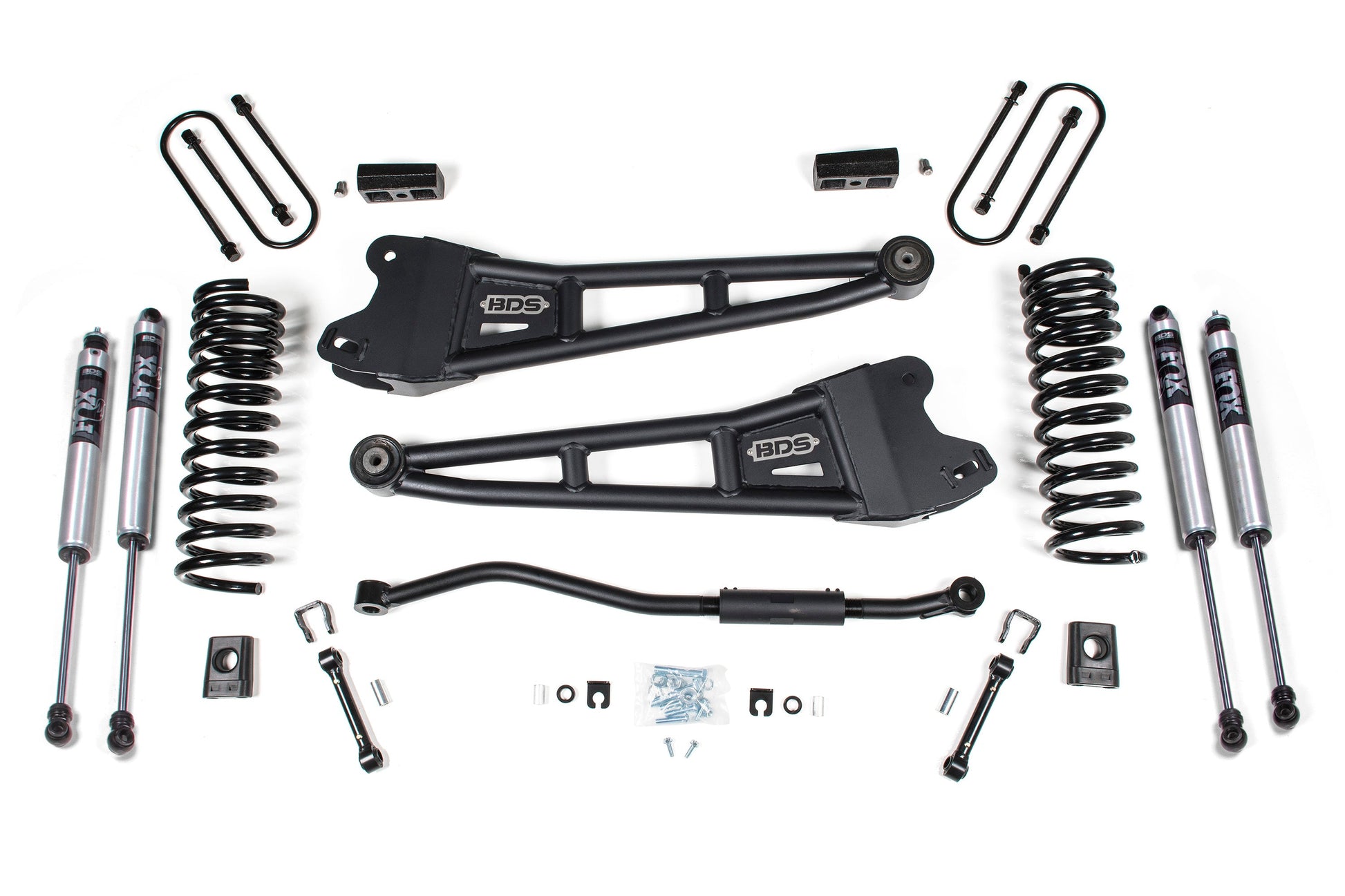

For: With Factory Rear Overload Leaf / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224710 | FOX 2.0 IFP Shock | Performance Series | 22.95 x 14.35 x 2- S50/EB1 |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

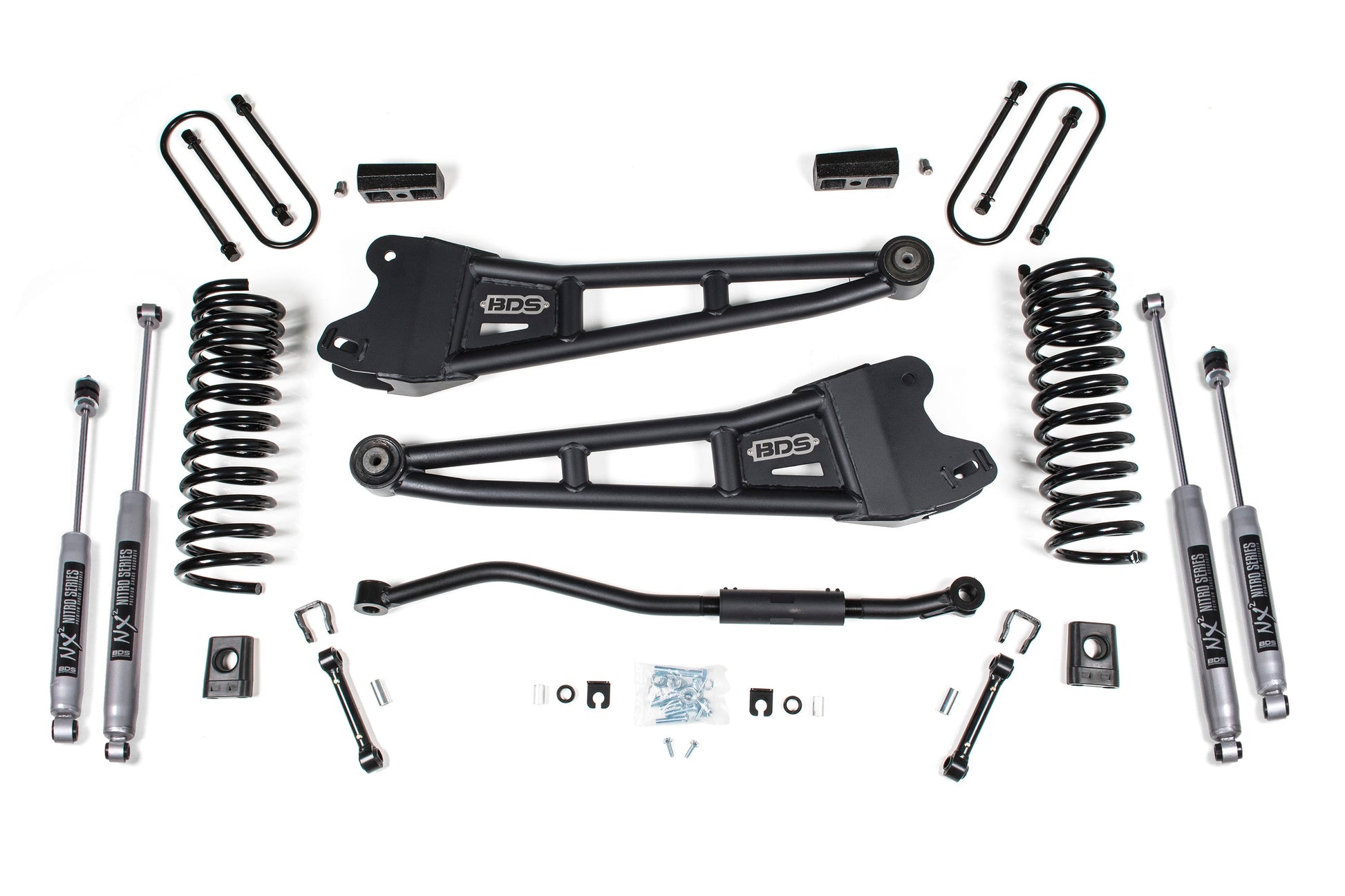

For: With Factory Rear Overload Leaf / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85713 | NX2 Nitro Shock | Multiple Fitments | 23.5 x 14.2 x 2-3/8 - S50/EB2 |
| 2 | BDS85759 | Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
For: Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326062 | FOX 2.5 Front Shocks w/ DSC Reservoir | 0-1.5 Inch Lift | Performance Elite Series | Ram 2500 (14-26) and 3500 (13-27) 4WD |
| 1 | FOX88326101 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ram 3500 (13-27) |
For: Without Factory Rear Overload Leaf / FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224710 | FOX 2.0 IFP Shock | Performance Series | 22.95 x 14.35 x 2- S50/EB1 |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
For: Without Factory Rear Overload Leaf / NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85713 | NX2 Nitro Shock | Multiple Fitments | 23.5 x 14.2 x 2-3/8 - S50/EB2 |
| 2 | BDS85759 | Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Features
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength dual rate coil springs for a great ride on any terrain
- Front adjustable track bar allows you to re-center axle
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended wheels & tires
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time4-5 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Level out and take your RAM 3500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to re-center the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes with bushings and is ready to bolt into the factory mounting points.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
