BDS Suspension

BDS Suspension 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD

Name: BDS Suspension 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD
Brand: BDS Suspension
SKU: BDS2200FPE
Price: 5078.74 USD
Availability: InStock

BDS Suspension 3 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD

PART #

$5,078.74

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

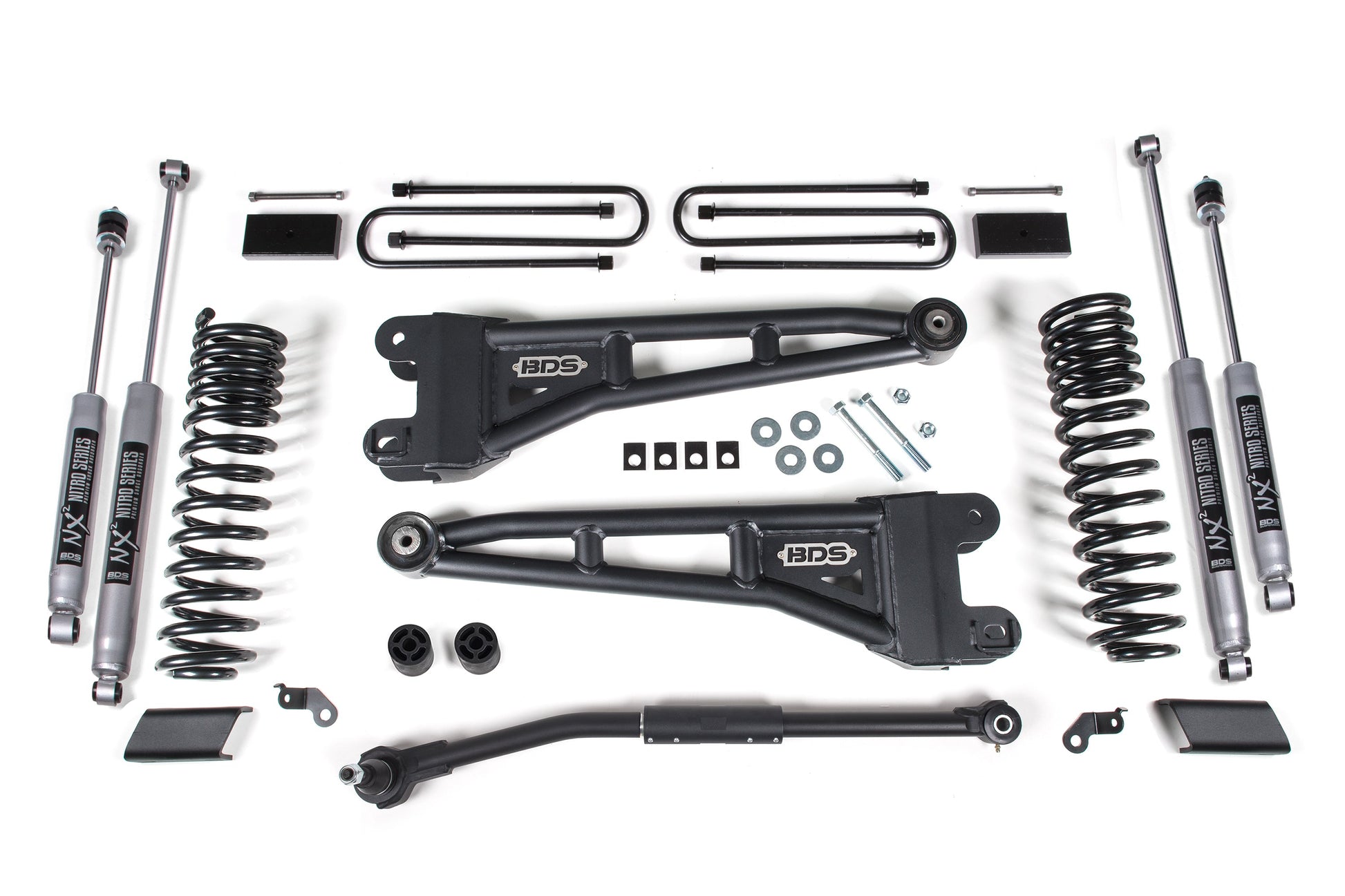

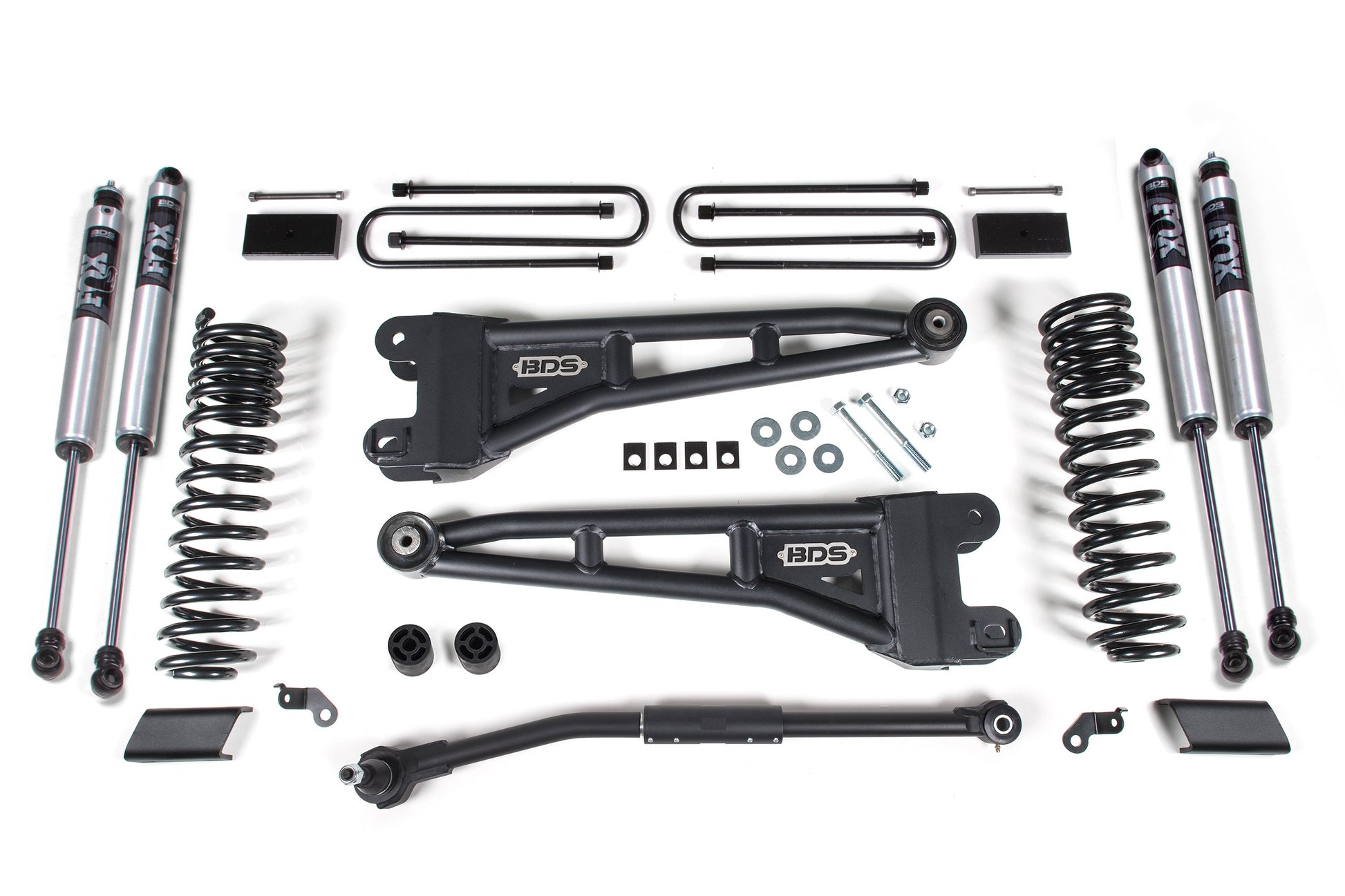

Level your 2023–2026 Ford Super Duty with a 3" BDS radius arm lift kit. Includes Pro-Ride coils, HD radius arms, adjustable track bar, and NX2 or FOX shocks for 35" tires.

Features

Easy, 100% Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
Adjustable solid steel track bar designed to recenter the front axle
Fabricated steel blocks provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control

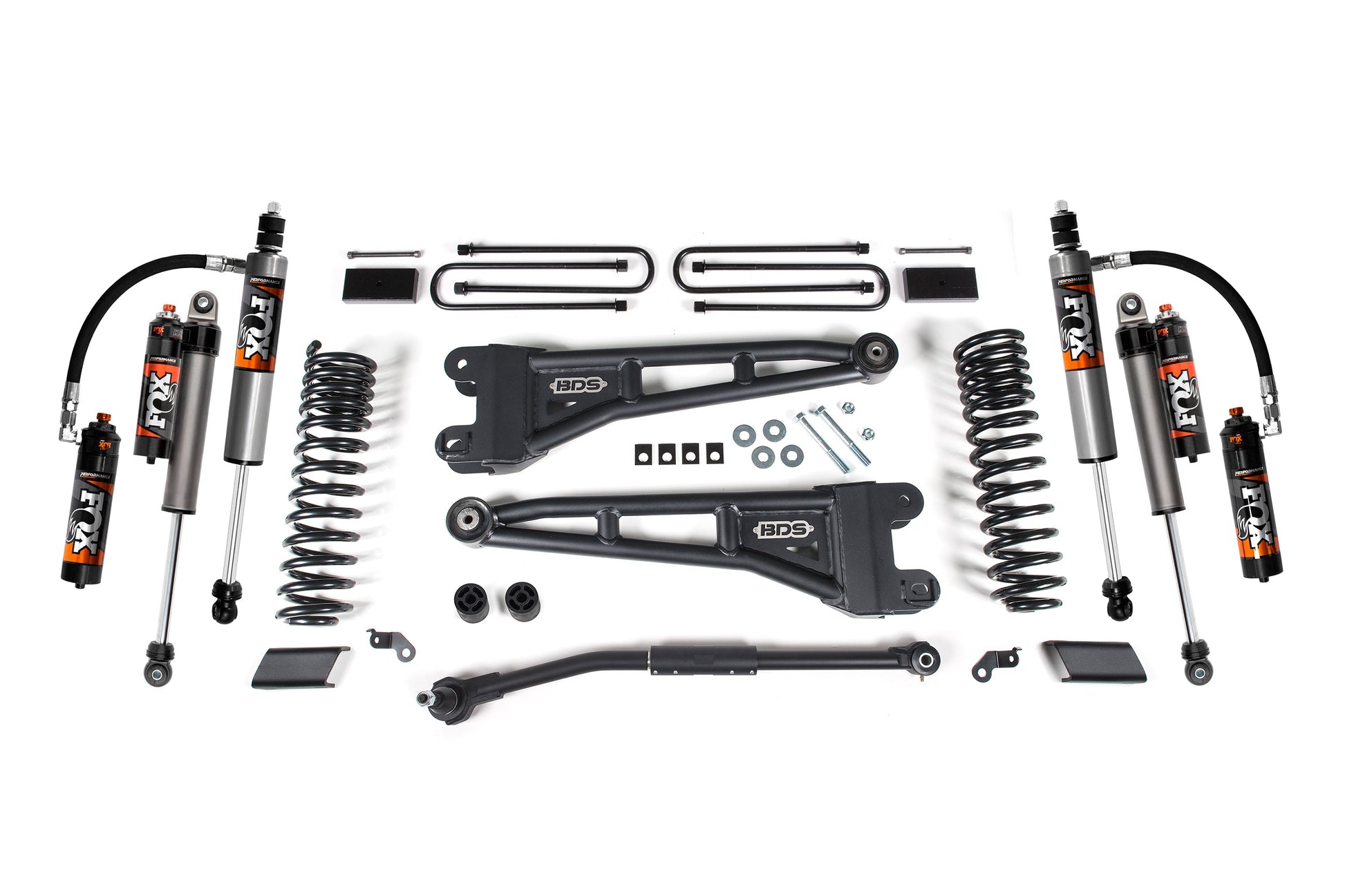

Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Vehicles with radius arm mounted ride height sensors will require BDS123303.
Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
Installation requires a torque wrench capable of 406 ft-lbs.
Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
Fits SRW models only.
Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
35 x 12.5 with 17 x 9 and 5 in. Backspace
35 x 12.5 with 18 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5 in. Backspace

Instructions

Estimated Install Time: 5 hrs
Difficulty: Moderate
Required Tools: 30mm Socket, Pitman Arm Puller
Instructions 1
Instructions 2
Instructions 3
