BDS Suspension 3 Inch Lift Kit Ram 2500 w/ Rear Air Ride (19-24) 4WD · Diesel
- Front lift 3"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 2"
- Shocks included
- Install 6 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- When installing this rear air ride system in conjunction with a 4-Link or radius arm drop bracket system. Use the provided air tank spacers in this box kit to provide clearance to the brackets.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1713FS |
| UPC / GTIN | 840416407686 |
| Front Lift Height | 3" |
| Front Lift Method | Coil Spring |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Spacer |
| Shocks Included | Yes |
| Install time | 6 hrs |
| Difficulty | Moderately Easy |

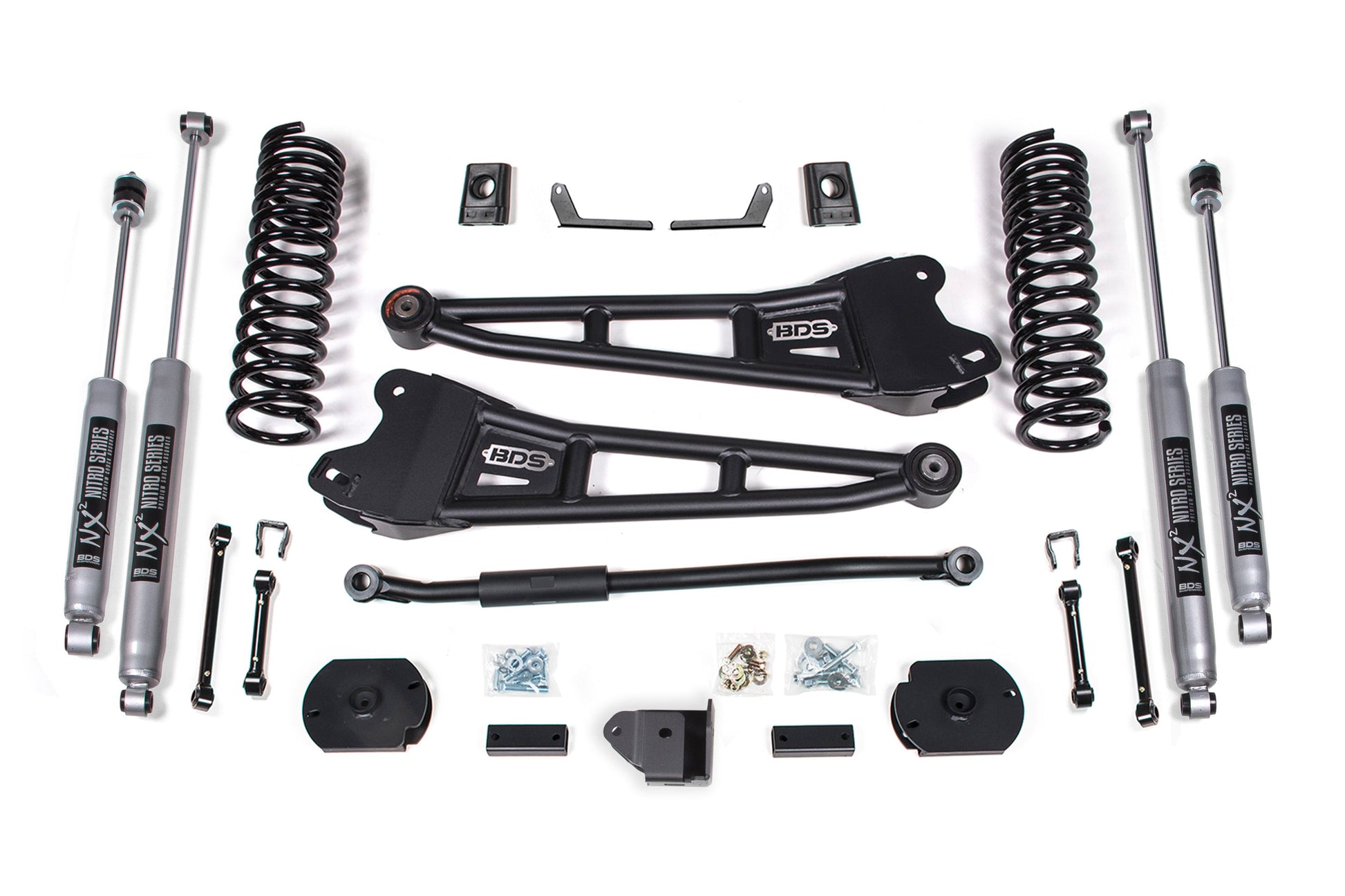

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS032302 | Coil Springs | 3 Inch Lift - Diesel / 4 Inch Lift - Gas | RAM 2500 (14-27) & 3500 (13-27) |
| 1 | BDS122321 | Radius Arm Upgrade | Ram 2500 (14-27) and 3500 (13-27) 4WD |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224706 | FOX 2.0 IFP Rear Shock | 1-3.5 Inch Lift | Performance Series | Ram 2500 (14-25) 4WD |
| 2 | FOX98224710 | FOX 2.0 IFP Shock | Performance Series | 22.95 x 14.35 x 2- S50/EB1 |
For: NX2 Nitro Series
| Qty | Part | Description |
|---|---|---|
| 2 | BDS85713 | NX2 Nitro Shock | Multiple Fitments | 23.5 x 14.2 x 2-3/8 - S50/EB2 |
| 2 | BDS85764 | NX2 Nitro Rear Shock | 3.5 Inch Lift | Ram 2500 (14-18) 4WD |
Features
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front adjustable track bar allows you to re-center axle
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended wheels & tires
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
Installation
- Estimated install time6 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Level out and take your RAM 2500 diesel powered truck, equipped with factory rear air ride, with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated coil spacer, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8"" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
