BDS Suspension 3 Inch Lift Kit | FOX 2.5 Performance Series HTO Coil-Over | Ford Bronco (21-25)

Questions about fitment?

Talk to a TRU specialist

We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT

Call 866-235-4715 Live chat

Important notes before you order

Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
Will not work with models with a height sensor attached to the UCA.
Does not fit Bronco Sport models.
Not compatible with Raptor Models.
Is compatible with HOSS 3.0 Bronco Models

TRU specialist notes

From the Trucks R Us fitment and install team, beyond the manufacturer's information.

Plan for a professional wheel alignment after installing any lift or leveling kit.
Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.

Specifications

Brand	BDS Suspension
Part number	BDS1905FPS
UPC / GTIN	840416435658
Front Lift Height	3"
Front Lift Method	Coil-Over
Lift Height	2-3.5"
Max Tire Size	37 x 12.5
Rear Lift Height	3"
Rear Lift Method	Coil-Over
Shocks Included	Yes
Install time	3-4 hrs
Difficulty	Moderately Easy

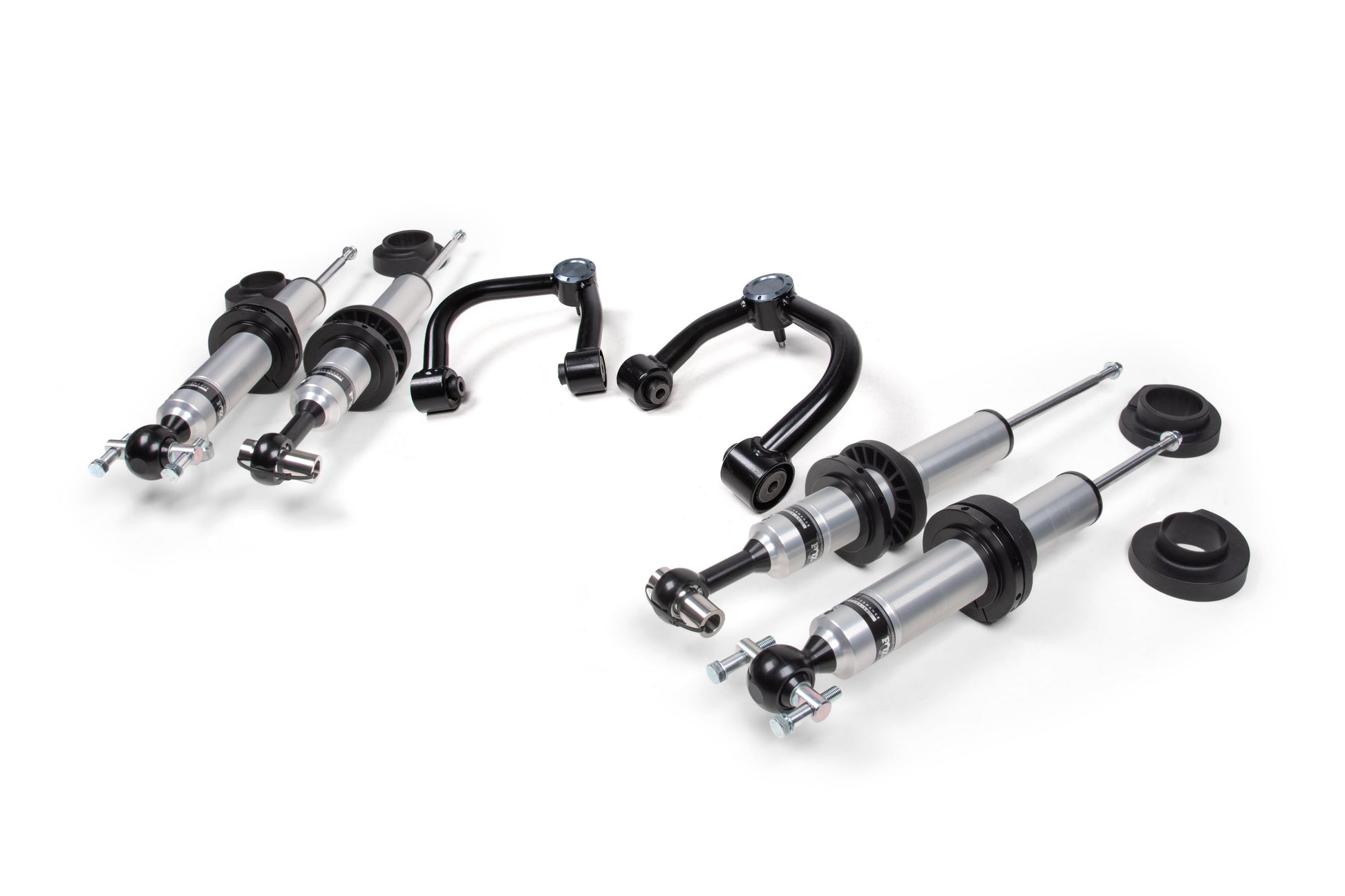

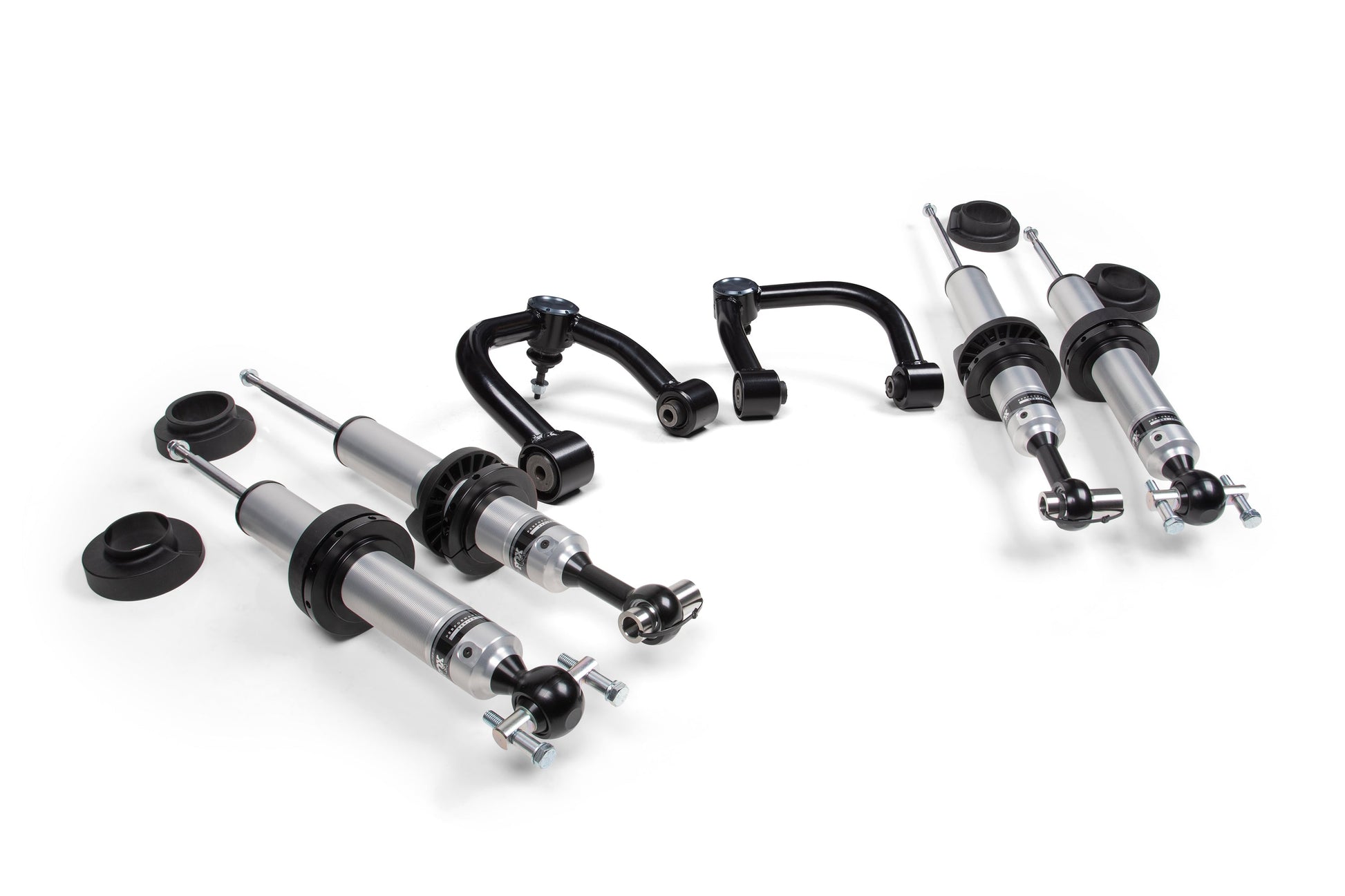

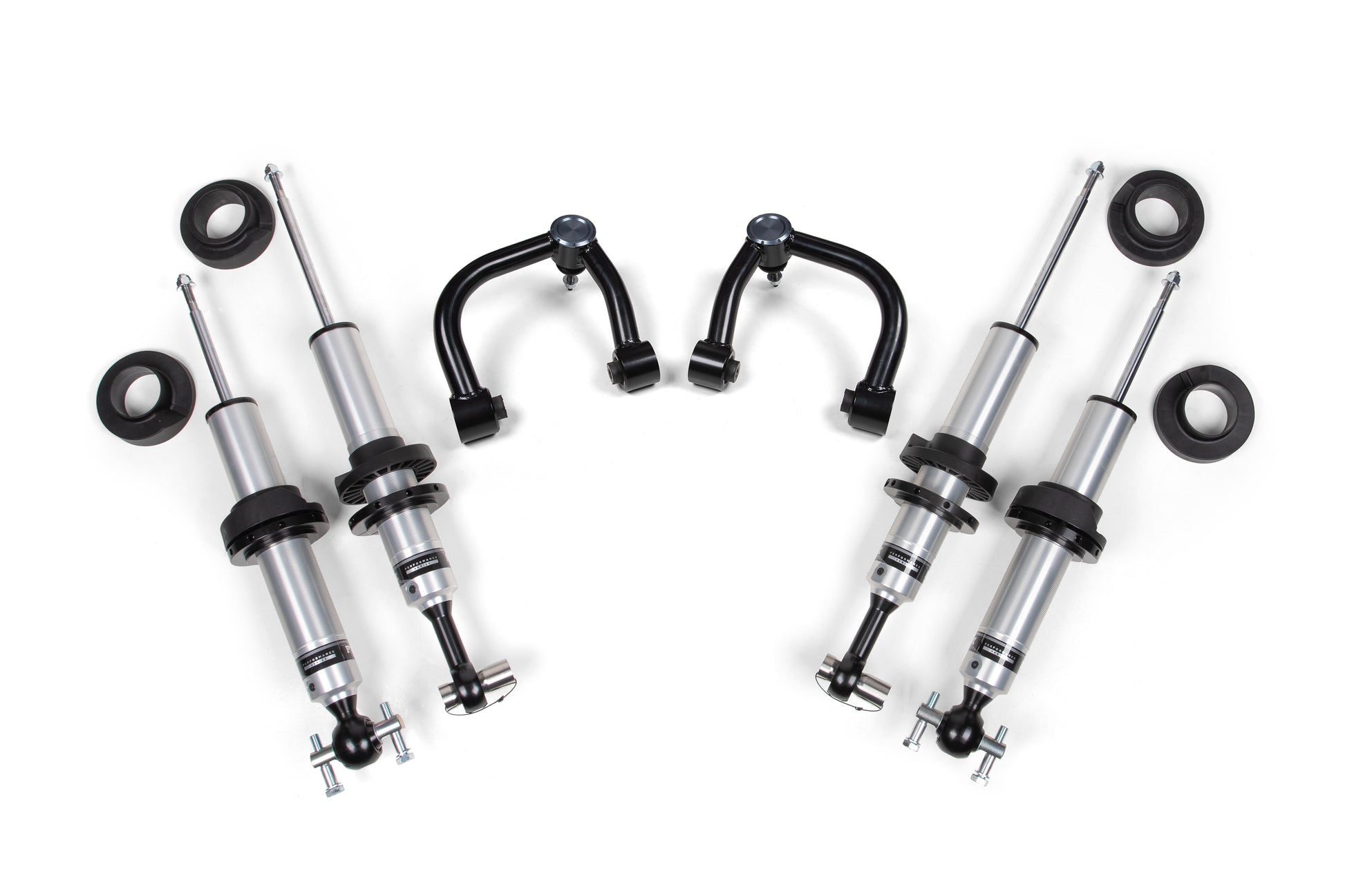

What's in the box

Qty	Part	Description

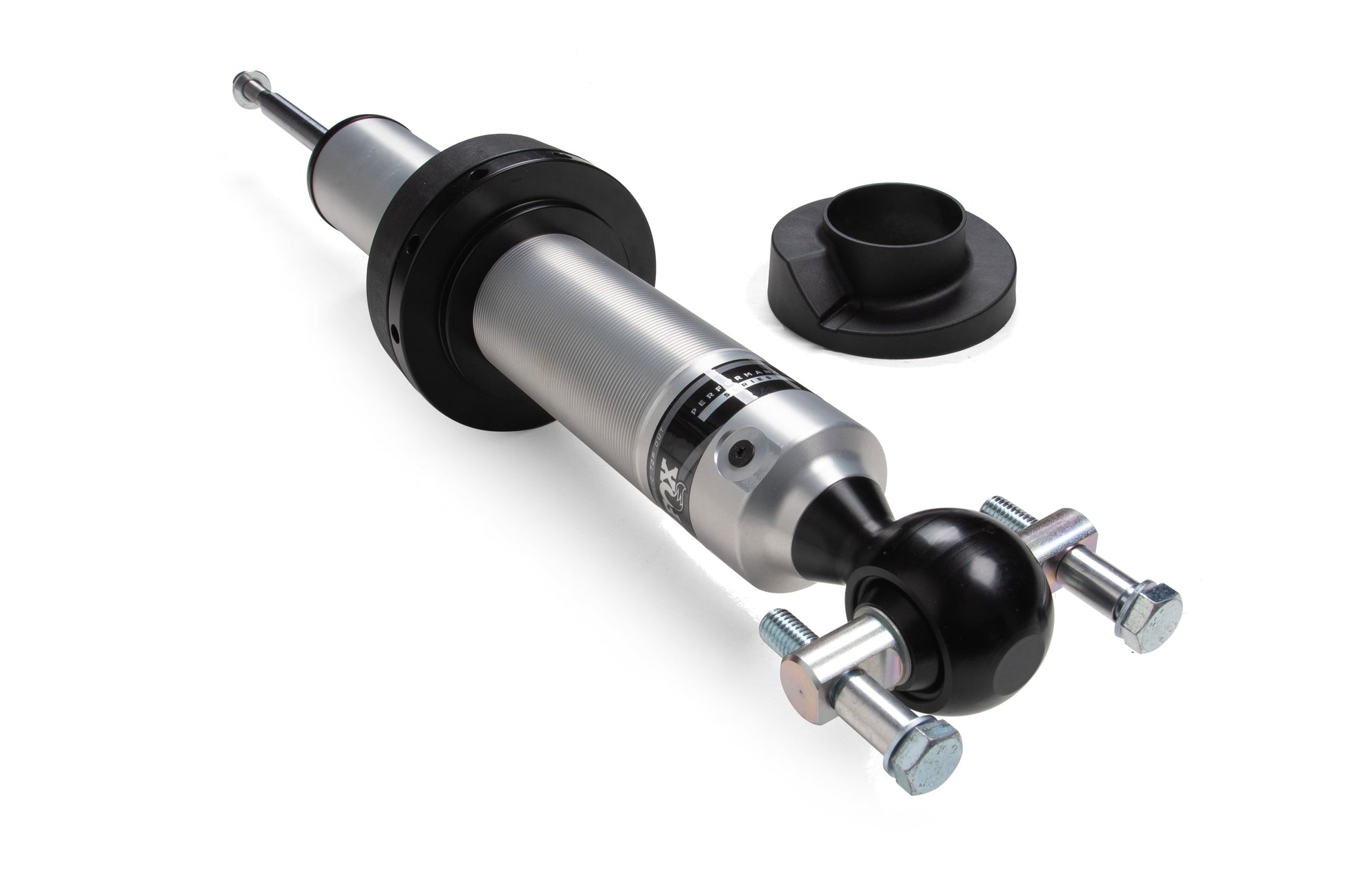

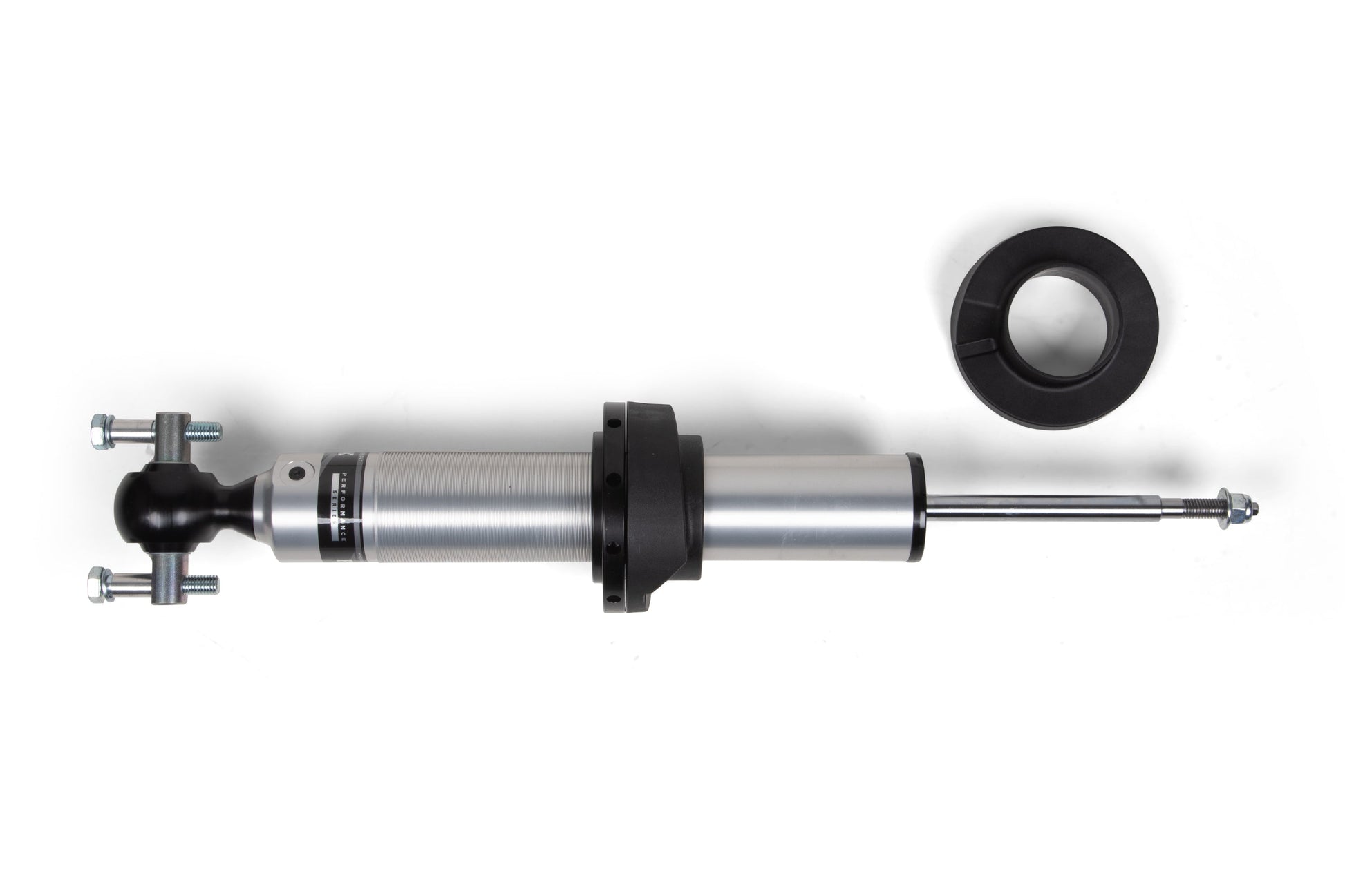

2	FOX98762000	FOX 2.5 IFP Front Coilover \| 0-3 Inch Lift \| Performance Series HTO \| Ford Bronco (21-26)

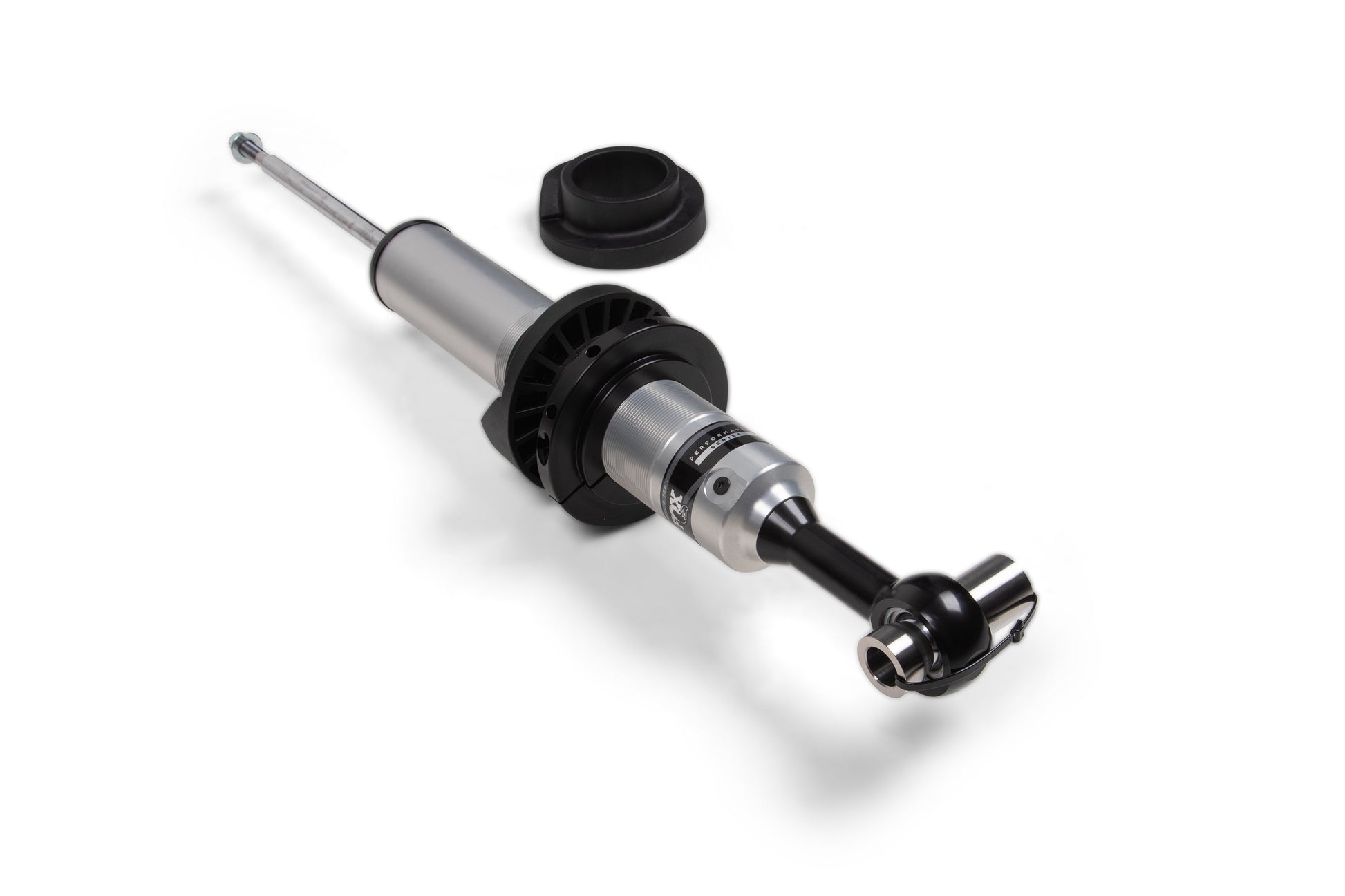

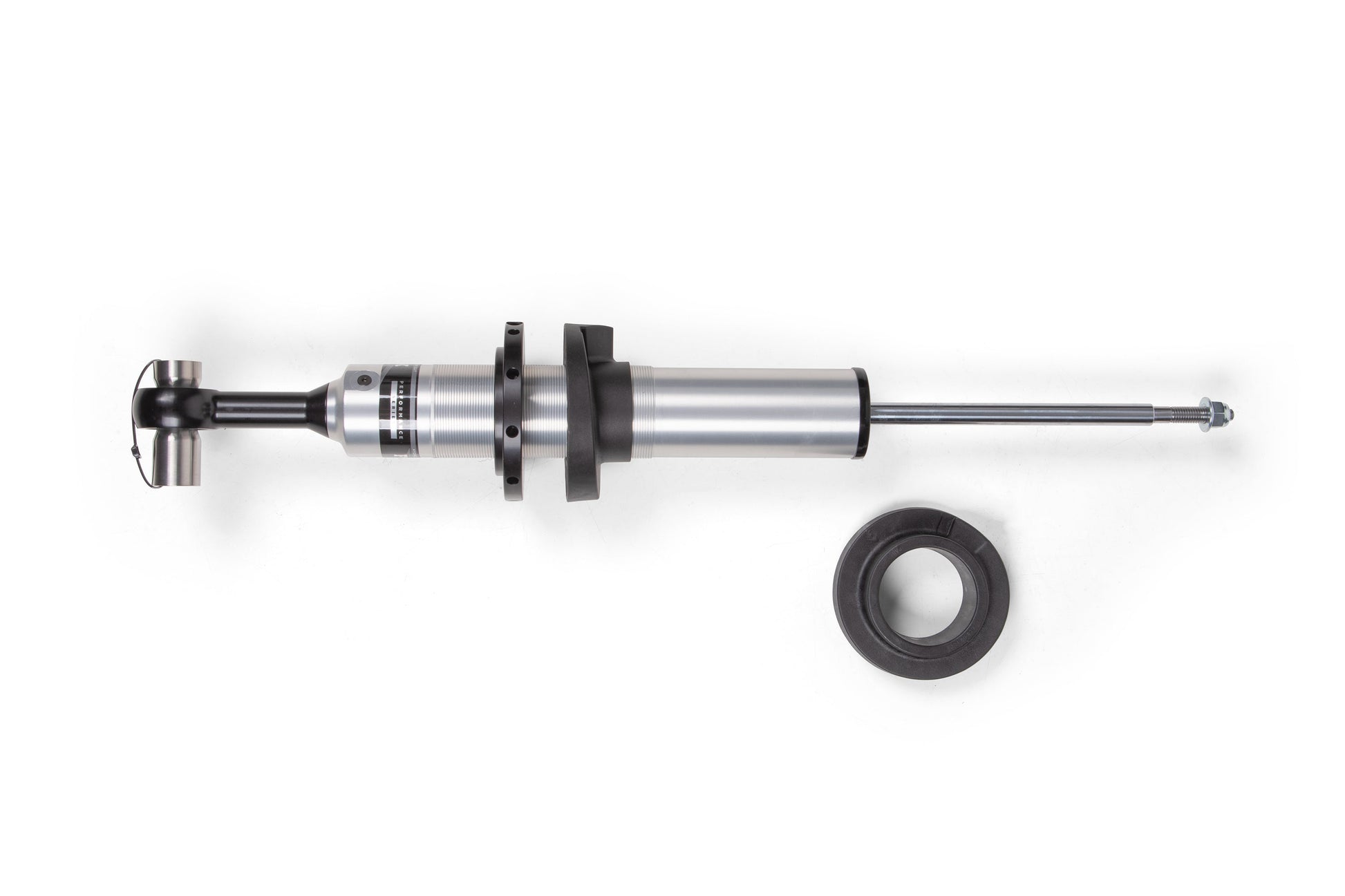

2	FOX98762001	FOX 2.5 IFP Rear Coilover \| 0-3 Inch Lift \| Performance Series HTO \| Ford Bronco (21-26)

For: Uniball

Qty	Part	Description
1	BDS123254	Upper Control Arm Kit \| Uniball \| Ford Bronco (21-26)

For: Ball Joint

Qty	Part	Description
1	BDS123264	Upper Control Arm Kit \| Ball Joint \| Ford Bronco (21-26)

Features

Features Fox 2.5 PS IFP Coil over shocks front and rear.
Performance UCAs with with your choice of uniball or ball joints increase strength and allow for more suspension travel
FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Factory Protection Plus drivetrain warranty included
Easy, 100% Bolt on installation

Recommended wheels & tires

37 x 12.5 with 17 x 9 and 5.5 in. Backspace
37 x 12.5 with 18 x 9 and 5.5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Installation

Estimated install time3-4 hrs
DifficultyModerately Easy

Instructions 1 (PDF)Instructions 2 (PDF)Instructions 3 (PDF)

Free install support from the Trucks R Us tech team, for you or your shop.

Overview

Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed high-stength uniball or ball joint to correct the joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality uniball or greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Questions

Will this fit my truck?

Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.

Do you help with installation?

Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.

What if the part has a problem?

We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.

Can I return it?

Most items can be returned within 30 days. See our return policy for details.

Do I need an alignment after installing?

Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.

No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.

BDS Suspension 3 Inch Lift Kit · FOX 2.5 Performance Series HTO Coil-Over Ford Bronco (21-25)
