BDS Suspension 3 Inch Lift Kit · FOX 2.5 Performance Elite Series Toyota Tundra (22-25) 4WD
- Front lift 3"
- Lift 2-3.5"
- Max tire 305 / 55
- Rear lift 1"
- Shocks included
- Install 4-5 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- TRD Sports will achieve the same amount of lift but will have a lower stance than other models in the front
- Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles
- Will not work with Air Ride models
- Will not work with TRD Pro models
- For regular off-road use, it recommended to upgrade Non TRD Off-Road trucks half axles (CVs) to Toyota TRD's (Driver Part# 434100C020, Passenger Part# 434100C020. Not including TRD Pro models.
- Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
- For replacement ball joints, order BDS088200. Ball joints are directional and need to be positioned correctly when installed on the upper control arm.
- The ADAS system in some vehicles needs to be recalibrated by a certified shop. The vehicle may warn the driver of potential collision from lower bridges, overhead signs/wires, and signs in windy conditions. Most windshield repair shops (Safelite) and dealers are capable of doing this.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS838FPE |
| UPC / GTIN | 840416400274 |
| Front Lift Height | 3" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 305 / 55 |
| Rear Lift Height | 1" |
| Rear Lift Method | Springs |
| Shocks Included | Yes |
| Install time | 4-5 hrs |
| Difficulty | Moderate |
| Required Tools | Basic Hand Tools, Hydraulic Floor Jack and Jack Stands |

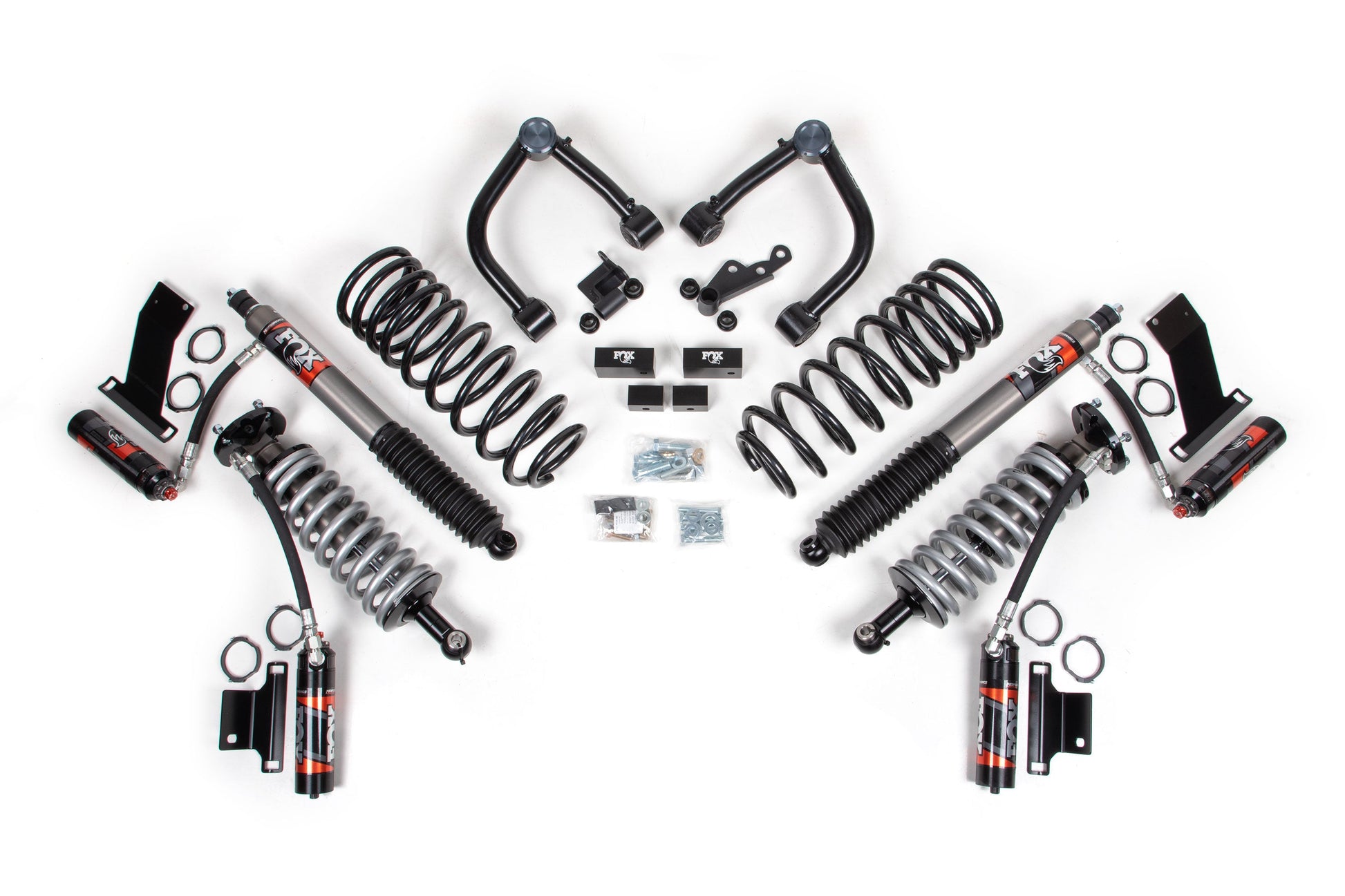

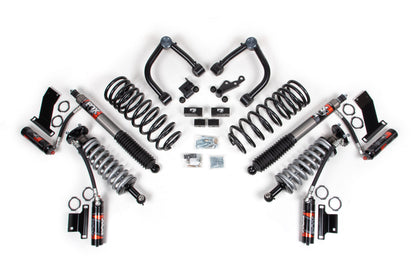

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS038156 | 2022 Toyota Tundra, 1-3/4" Rear Coil Spring |
| 1 | BDS128254 | Upper Control Arm Kit | Toyota Tundra (22-26) |
| 1 | FOX88326139 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 0-1.5 Inch Lift | Performance Elite Series | Toyota Tundra (22-26) |
| 1 | FOX88406318 | FOX 2.5 Remote Reservoir Front Coilover | 0-3 Inch Lift | Performance Elite Series | Toyota Tundra (22-26) |
Features
- Choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite with DSC coil overs and rear shocks.
- BDS performance UCAs increase strength and allow for more suspension travel
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended wheels & tires
- 305 / 55 with 20 x 9 and 5 in. Backspace
- 285 / 65 with 20 x 9 and 6.18 in. Backspace
- 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
Installation
- Estimated install time4-5 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Take your 2022-2025 Toyota Tundra truck to the next level and improve the ride with this 0-3-inch lift kit featuring FOX 2.5 Performance Elite Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

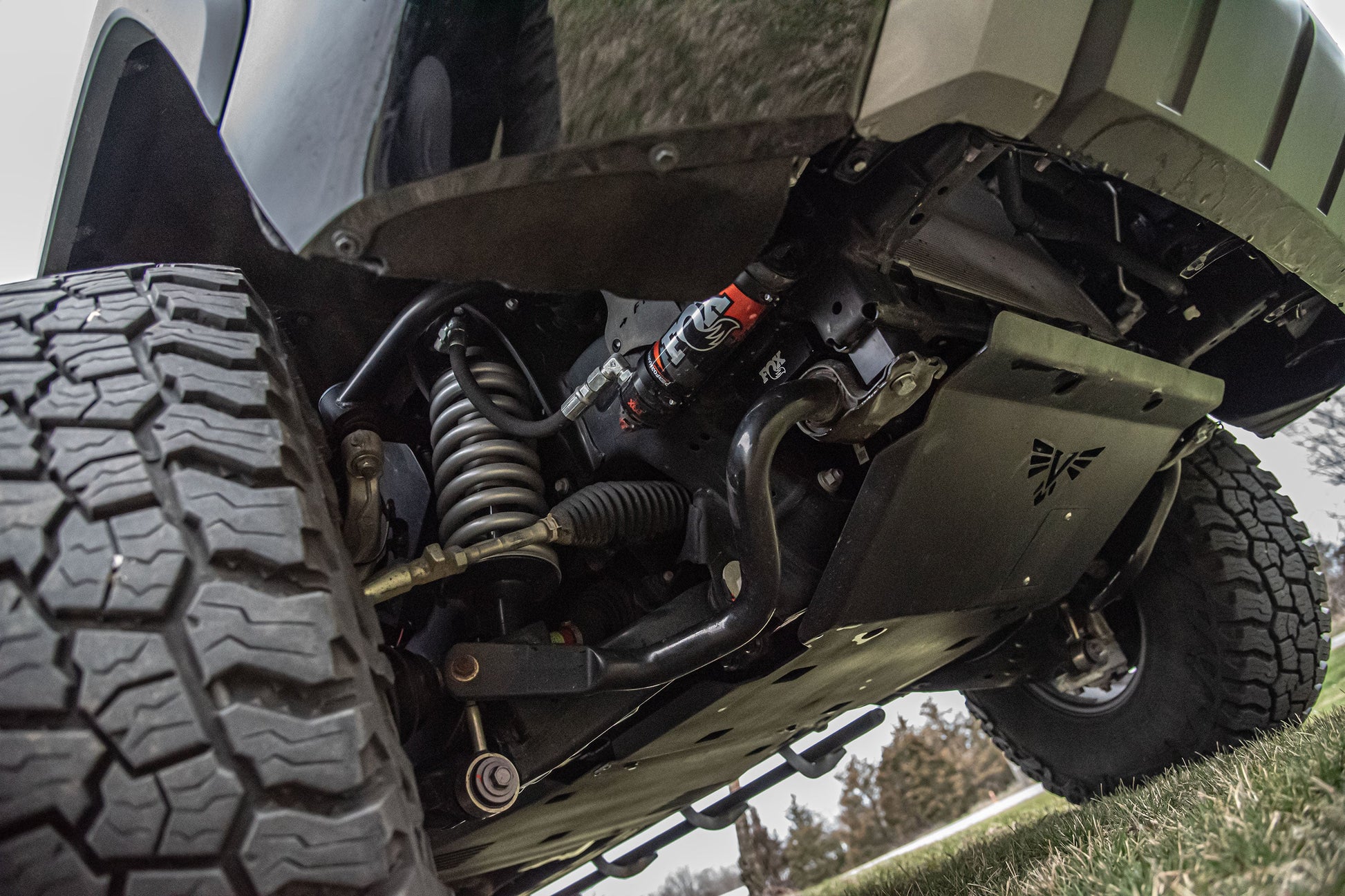

Up front the lift kit includes FOX 2.5 Performance Elite Coilovers with DSC remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks. In the rear this kit utilizes 1- 3/4" BDS heavy duty coil springs and a set of FOX 2.5 Performance Elite shocks with DSC remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.
DSC Adjustment
FOX 2.5 Performance Elite front coilovers and rear shocks come equipped with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Upgrade your 2022-2025 Toyota Tundra 4WD with BDS 3" lift kit featuring FOX 2.5 Performance Elite coilovers, HD UCAs, and DSC-adjustable shocks for ultimate control.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
