BDS Suspension 3 Inch Lift Kit · FOX 2.5 Performance Elite Coilover Ford Bronco (21-25)
- Front lift 3.5"
- Lift 2-3.5"
- Max tire 37 x 12.5
- Rear lift 3-5"
- Shocks No
- Install 3-4 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Control Arms
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
- Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
- Will not work with models with a height sensor attached to the UCA.
- Does not fit Bronco Sport models.
- Not compatible with Raptor Models.
- Is compatible with HOSS 3.0 Bronco Models
- Will provide the following lift amounts:
- 2 Door | Without Sasquatch Package - 4.5" Lift
- 4 Door | Without Sasquatch Package - 4" Lift
- 2 Door | With Sasquatch Package - 3.5" Lift
- 4 Door | With Sasquatch Package - 3" Lift
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1905FPE |
| UPC / GTIN | 840416410549 |
| Front Lift Height | 3.5" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 37 x 12.5 |
| Rear Lift Height | 3-5" |
| Rear Lift Method | Coil-Over |
| Shocks Included | No |
| Install time | 3-4 hrs |
| Difficulty | Moderately Easy |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88306212 | FOX 2.5 Front Coilover Shocks w/ DSC Reservoir | 3-4 Inch Lift | Performance Elite Series | Ford Bronco (21-26) 4 Door w/ UCA |
| 1 | FOX88306213 | FOX 2.5 Rear Coilover Shocks w/ DSC Reservoir | 2-3 Inch Lift | Performance Elite Series | Ford Bronco (21-26) 4 Door |
For: Uniball
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123254 | Upper Control Arm Kit | Uniball | Ford Bronco (21-26) |
For: Ball Joint
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123264 | Upper Control Arm Kit | Ball Joint | Ford Bronco (21-26) |
Features
- FOX 2.5 Performance Elite series coilovers offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
- Factory Protection Plus drivetrain warranty included
- Easy, 100% bolt-on installation
Recommended wheels & tires
- 37 x 12.5 with 17 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Installation
- Estimated install time3-4 hrs
- DifficultyModerately Easy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

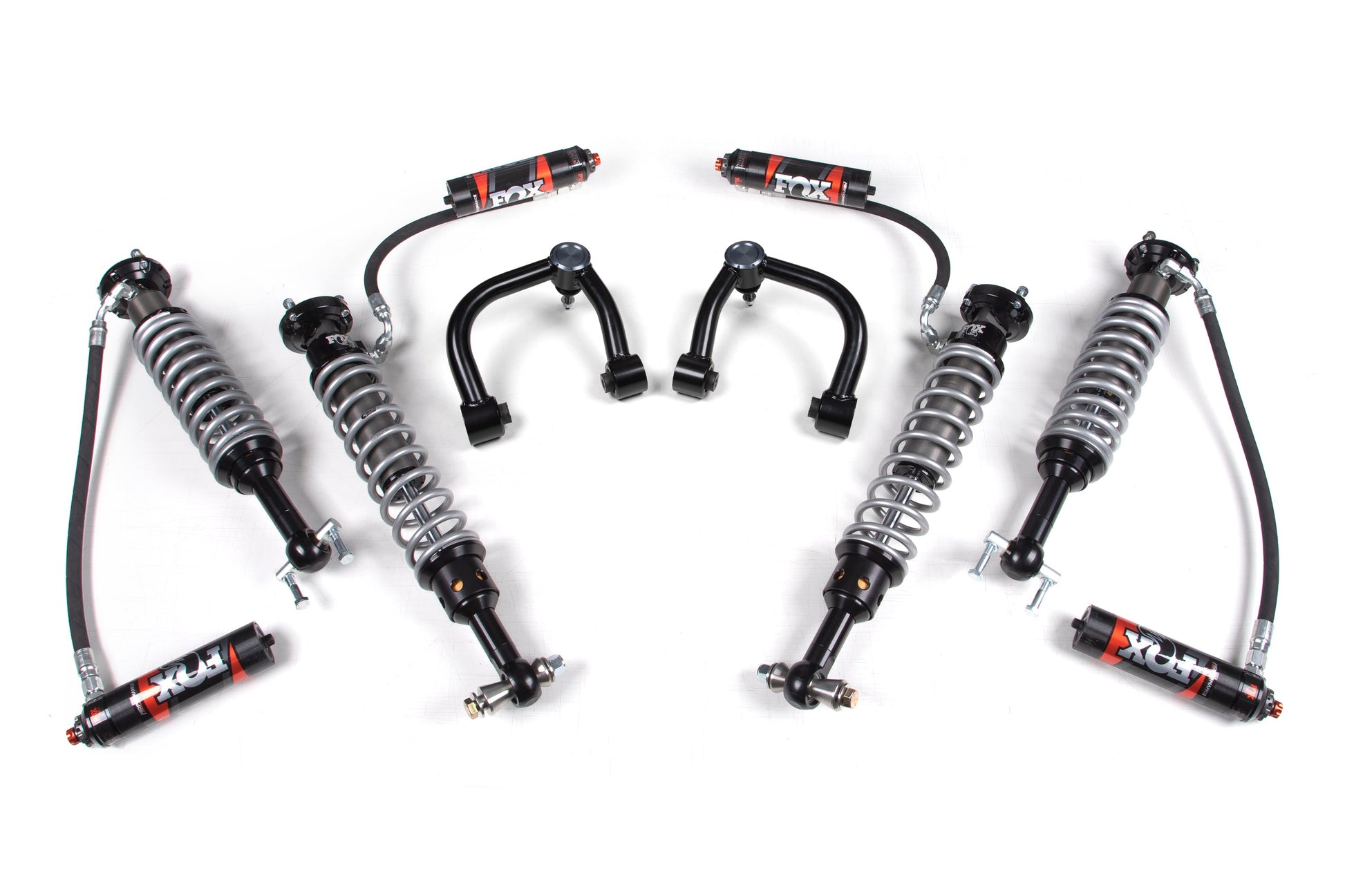

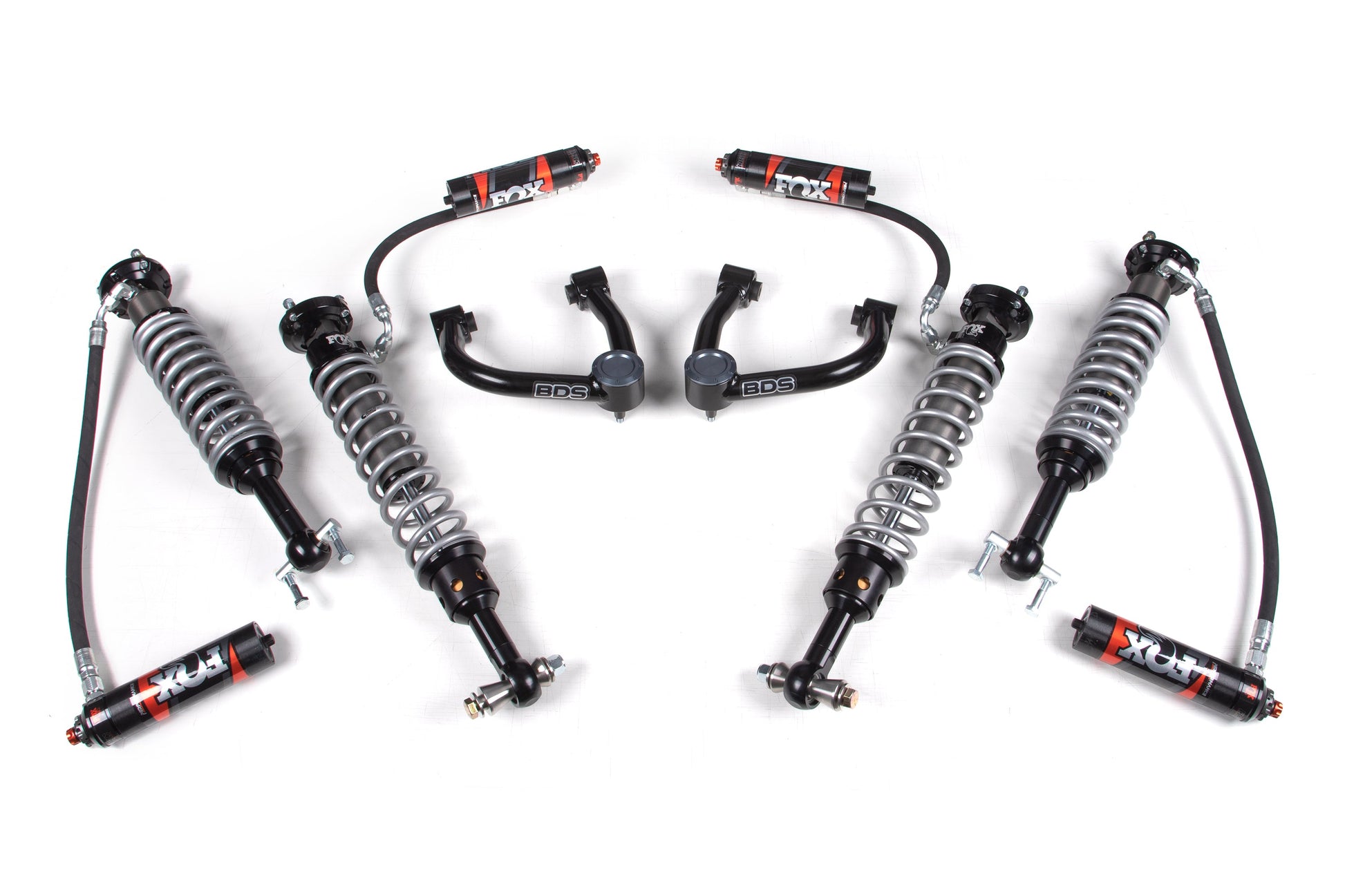

Up the ante in your 2021-2025 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front, the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.
Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next-level performance for on-road and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity, keeping your shocks cool so you can push the limits in rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels. It features a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed high-strength uniball or ball joint to correct the joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation, while at the other end, quality greaseable ball joints ensure smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.
Upgrade your 2021–2025 Ford Bronco’s stance and capability with a 3" BDS lift kit featuring FOX 2.5 Performance Elite coilovers and heavy-duty upper control arms.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
