BDS Suspension 3 Inch Lift Kit · FOX 2.5 Performance Elite Coil-Over Ram 1500 (19-26) 4WD
- Front lift 3"
- Lift 2-3.5"
- Max tire 33 x 12.5
- Rear lift 1.5"
- Shocks included
- Install 3-4 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Control Arms
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will not work with stock rims with a 12.50" wide tire, the tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock-size tire ONLY!
- The ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. The ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise, damage may occur
- Vehicles equipped with Offroad or Rebel Package will not achieve the full 3" of lift, net ride height change will be around 2" above stock.
- 2025+ Ram 1500 Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
- Will not fit models with factory air ride.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1708FPE |
| UPC / GTIN | 840416407600 |
| Front Lift Height | 3" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 33 x 12.5 |
| Rear Lift Height | 1.5" |
| Rear Lift Method | Coil Spring |
| Shocks Included | Yes |
| Install time | 3-4 hrs |
| Difficulty | Easy |
| Required Tools | Torque Wrench, Ball Joint Separation Tool |

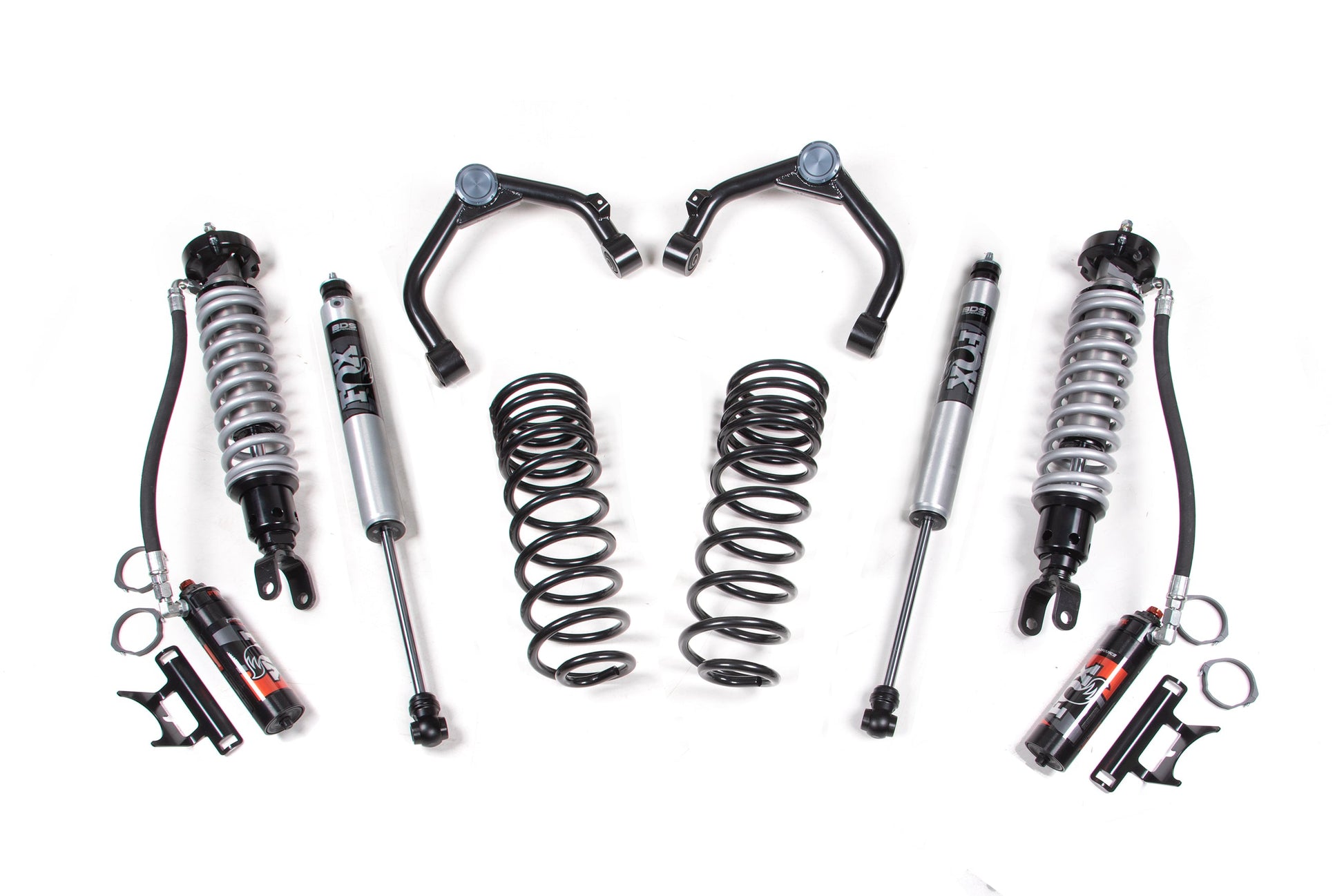

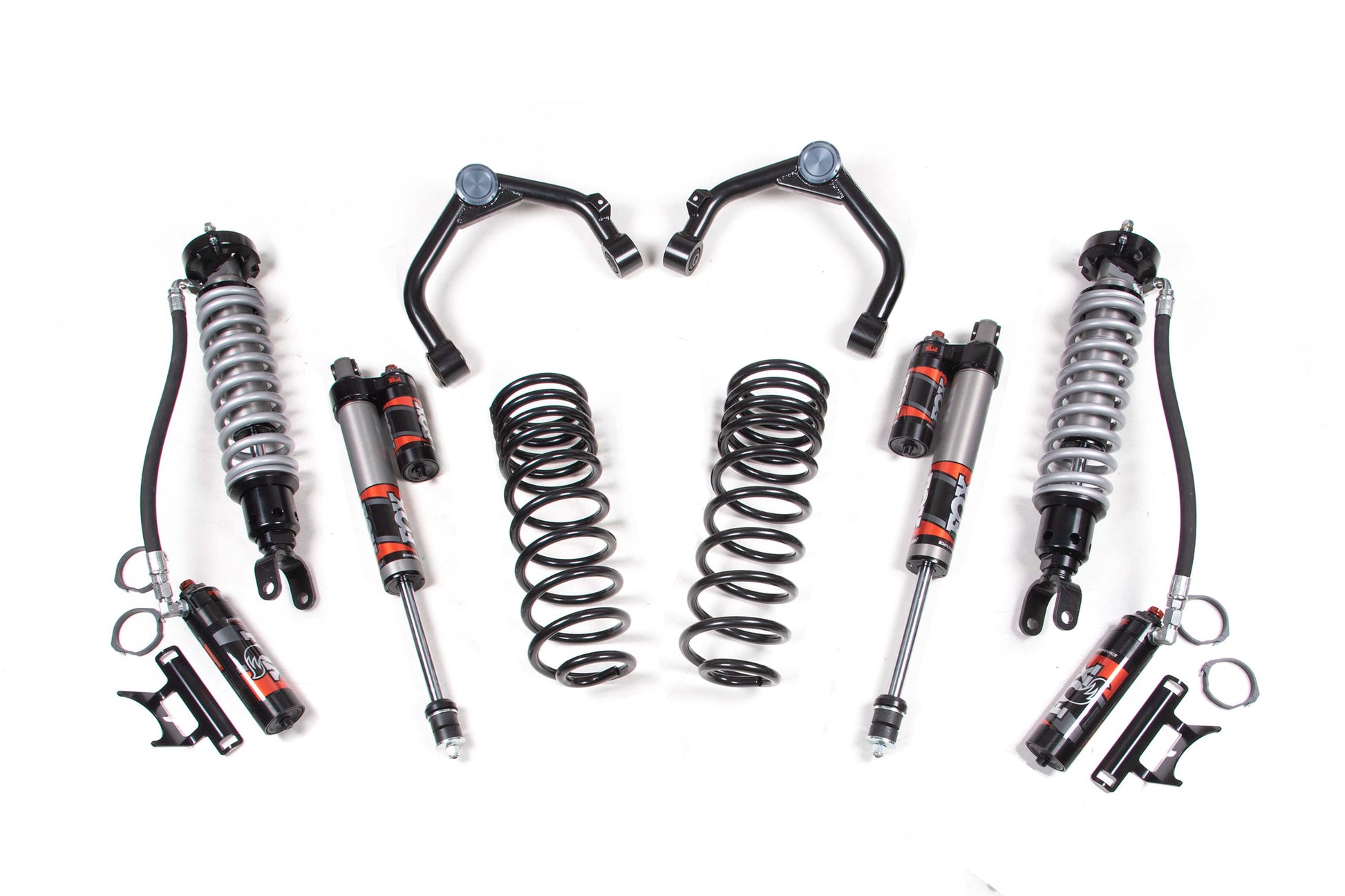

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88306166 | FOX 2.5 Coilover Shocks w/ DSC Reservoir Adjuster | 2-3 Inch Lift | Performance Elite Series | Ram 1500 (19-26) 4WD |
For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326079 | FOX 2.5 Rear Shocks w/ DSC Reservoir | 0-2 Inch Lift | Performance Elite Series | Ram 1500 (19-24) 4WD |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224806 | FOX 2.0 IFP Rear Shock | 4 Inch Lift | Performance Series | Ram 1500 Rebel (19-26) 4WD with Air-Ride |
Features
- FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended wheels & tires
- 305 / 65 with 18 x 9 and 4-5" in. Backspace
- 295 / 65 with 20 x 9 and 4-5" in. Backspace
- Stock with Stock and in. Backspace
Installation
- Estimated install time3-4 hrs
- DifficultyEasy
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Up the ante in your 2019-2026 RAM 1500 4WD truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear the stance is leveled out with a pair of 1.5" dual rate coil springs designed for exceptional ride quality and additional load capacity over stock. Your choice of rear FOX 2.0 Performance Series IFP gas shocks or upgrade FOX 2.5 Performance Elite Series DSC reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
