BDS Suspension 3 Inch Lift Kit · FOX 2.5 Coil-Over Conversion Dodge Ram 2500/3500 (03-13) 4WD
- Front lift 3"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 2"
- Shocks included
- Install 6-8 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Measure rear axle tube before ordering. Some 4" axle models have dual overloads that will require #4063 u-bolts.
- Rear lift options will not fit dually applications.
- Not recommended for Power Wagon models.
- Will not fit commercial chassis (Cab and Chassis) models.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1775F |
| UPC / GTIN | 840416408966 |
| Front Lift Height | 3" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 2" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 6-8 hrs |
| Difficulty | Moderate |
| Required Tools | Cut Off Wheel or Equiv. |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88402109 | FOX 2.5 Coil-Over Shocks w/ Reservoir | 3 Inch Lift | Factory Series | Dodge Ram 2500 (03-13) and 3500 (03-12) 4WD |
| 2 | FOX98224759 | Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
Features
- FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
- Heavy duty tubular short arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front HD adjustable track bar to re-position axle
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improve ride and offroad performance
Recommended wheels & tires
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
Installation
- Estimated install time6-8 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Maximize the capability of your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel truck with this 3-inch lift kit with FOX 2.5 Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Additionally, BDS engineered fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

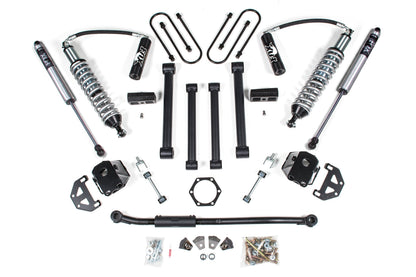

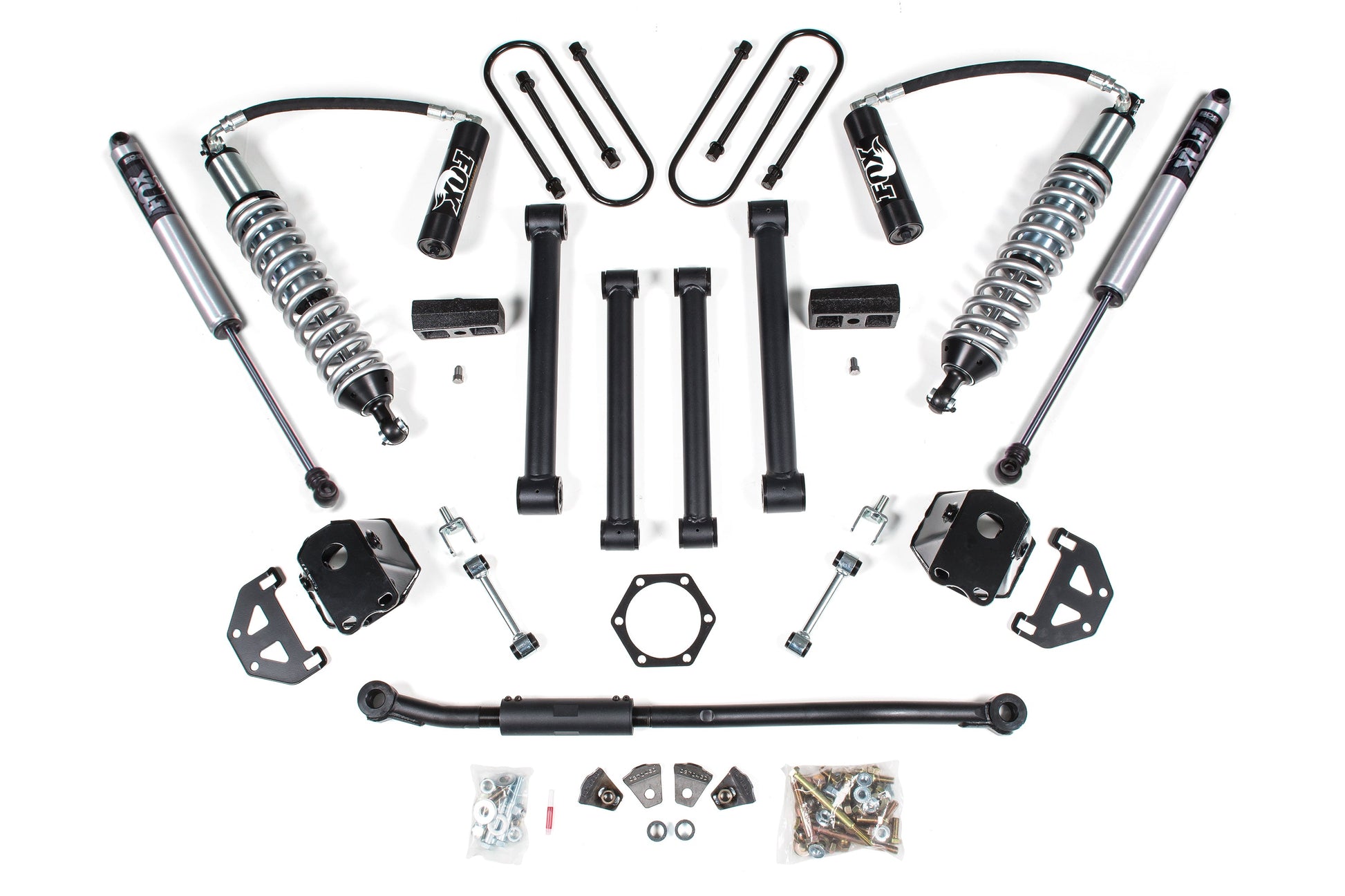

Up front the lift kit includes FOX 2.5 Coil-Over shocks, coil-over mounting brackets, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of FOX 2.0 Performance shocks.
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
