BDS Suspension 2 Inch Lift Kit · FOX 2.5 Coil-Over Toyota Tacoma (16-23) 4WD
- Front lift 2"
- Lift 2-3.5"
- Max tire 285 / 70
- Rear lift 2"
- Shocks included
- Install 3-4 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- 1. 285/75R16 with 4.5" back space will require trimming.
- 2. 285/70R17 with 4.5" back space will require trimming.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS835FPE |
| UPC / GTIN | 840416421897 |
| Front Lift Height | 2" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 285 / 70 |
| Rear Lift Height | 2" |
| Rear Lift Method | Add-A-Leaf |
| Shocks Included | Yes |
| Install time | 3-4 hrs |
| Difficulty | Moderate |
| Required Tools | 35mm Axle Nut Socket, Cut-off Tool |

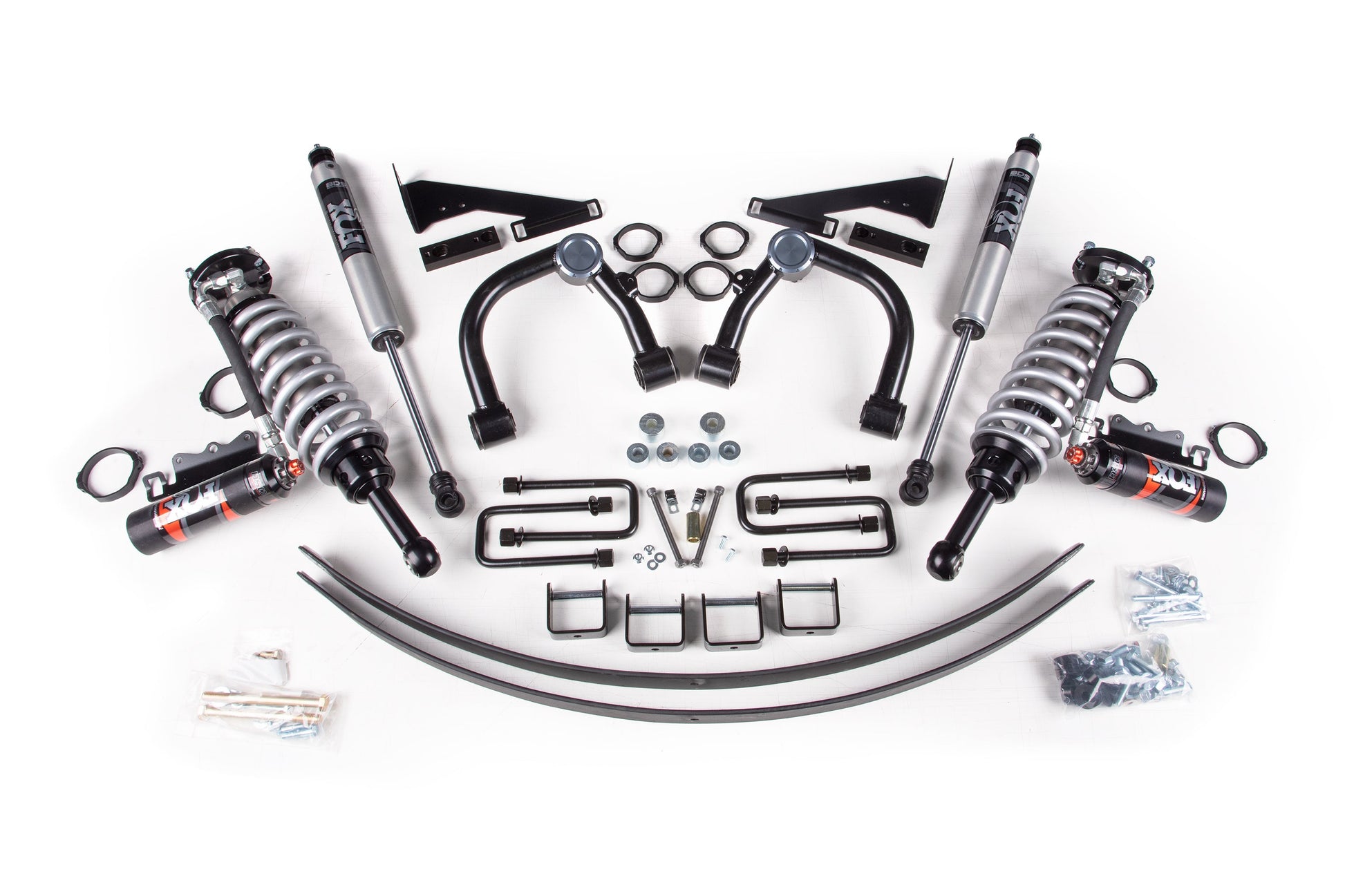

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS018217 | Add-A-Leaf Kit | Toyota Tacoma (05-23) |
| 1 | FOX88306178 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 2-3 Inch Lift | Performance Elite Series | Toyota Tacoma (05-23) 4WD w/ UCA |
For: FOX 2.0 Performance Series
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98024670 | FOX 2.0 IFP Rear Shock | 0-1 Inch Lift | Performance Series | Toyota Tacoma (05-23) |

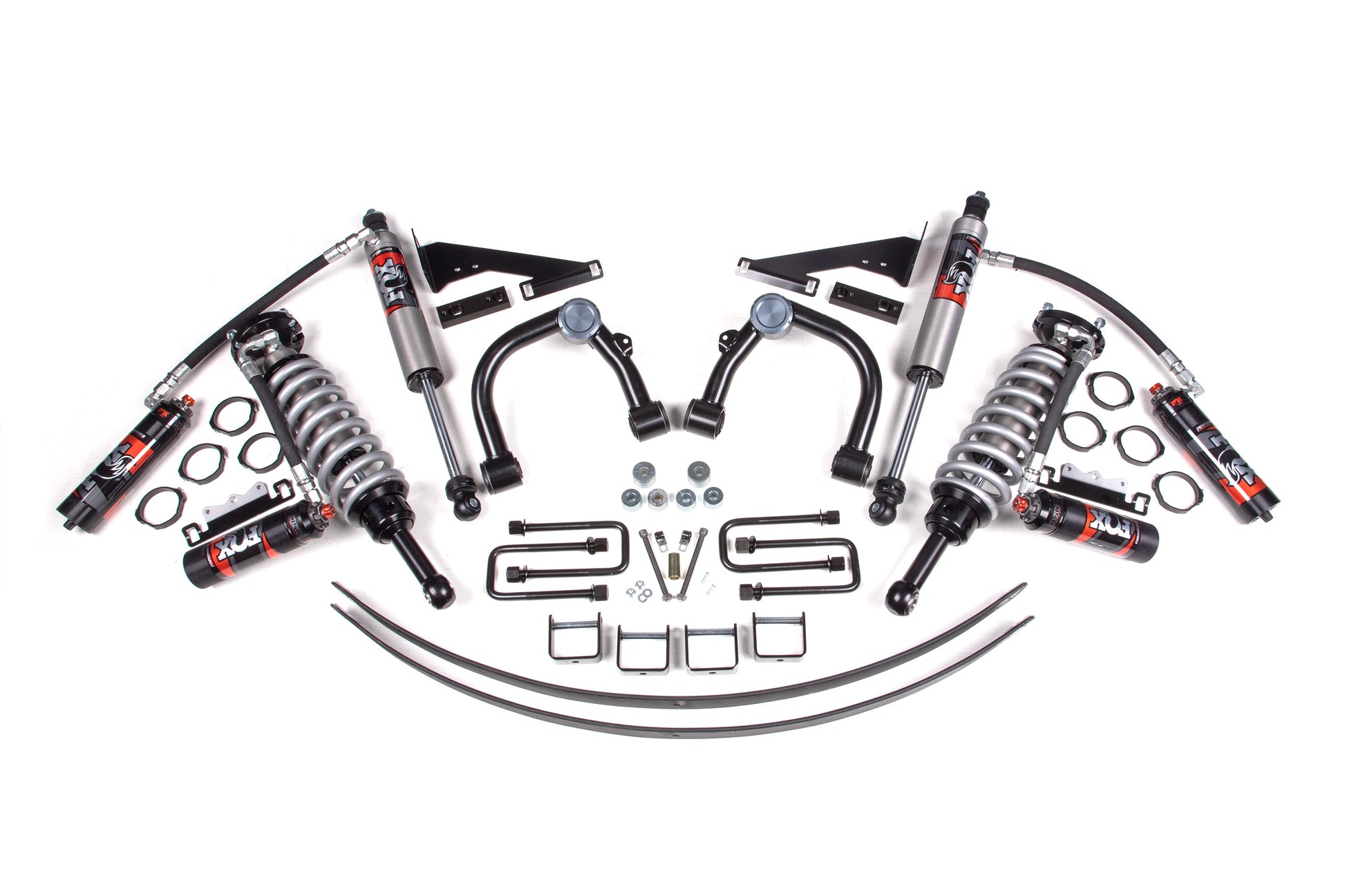

For: FOX 2.5 Performance Elite
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326112 | FOX 2.5 Rear Shocks w/ DSC Reservoir | 0-1.5 Inch Lift | Performance Elite Series | Toyota Tacoma (05-23) 4WD |
Features
- FOX 2.5 Factory series coilovers offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended wheels & tires
- 285 / 70 with 16 x 8 and 4.5 in. Backspace
- 285 / 70 with 17 x 8 and 4.5 in. Backspace
Installation
- Estimated install time3-4 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Up the ante in your 2016-2023 Toyota Tacoma truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1" front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.
In the rear, BDS supplies a set of add-a-leafs to provide 1" of lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride. Optional rear FOX 2.5 DSC reservoir shocks are available for maximum off road capabilities.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
