BDS Suspension 2 Inch Leveling Kit · FOX 2.5 Coilover Ford F150 (14-20) 4WD
- Front lift 2"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 0"
- Shocks included
- Install 3 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
- Will not fit HD models (7 lug).
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1553FDSC |
| UPC / GTIN | 840416403459 |
| Front Lift Height | 2" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 0" |
| Rear Lift Method | Stock |
| Shocks Included | Yes |
| Install time | 3 hrs |
| Difficulty | Moderate |
| Required Tools | 204-592 Ball Joint Separator (Recommended), Basic Hand Tools, Jack / Jack Stands |

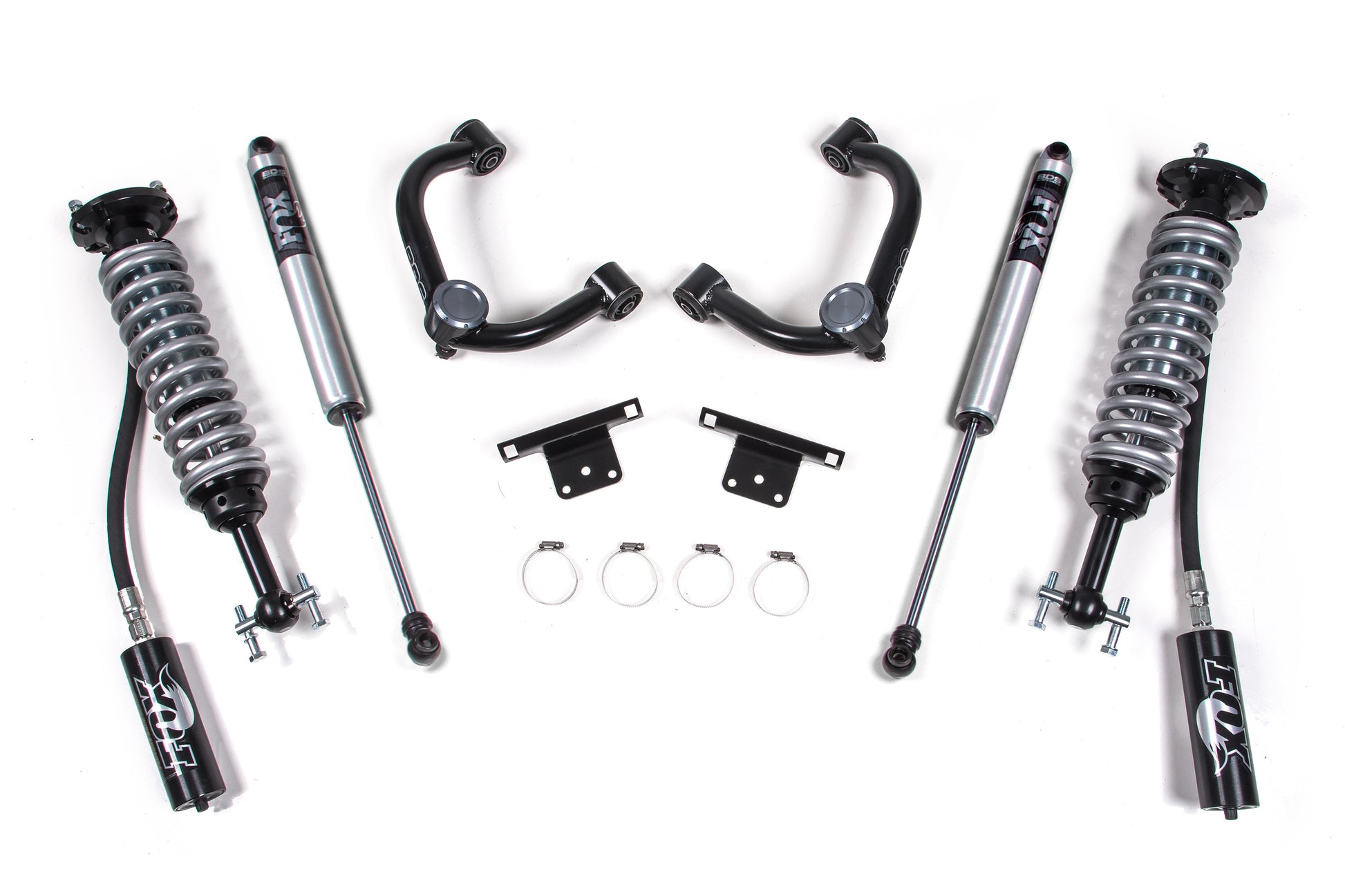

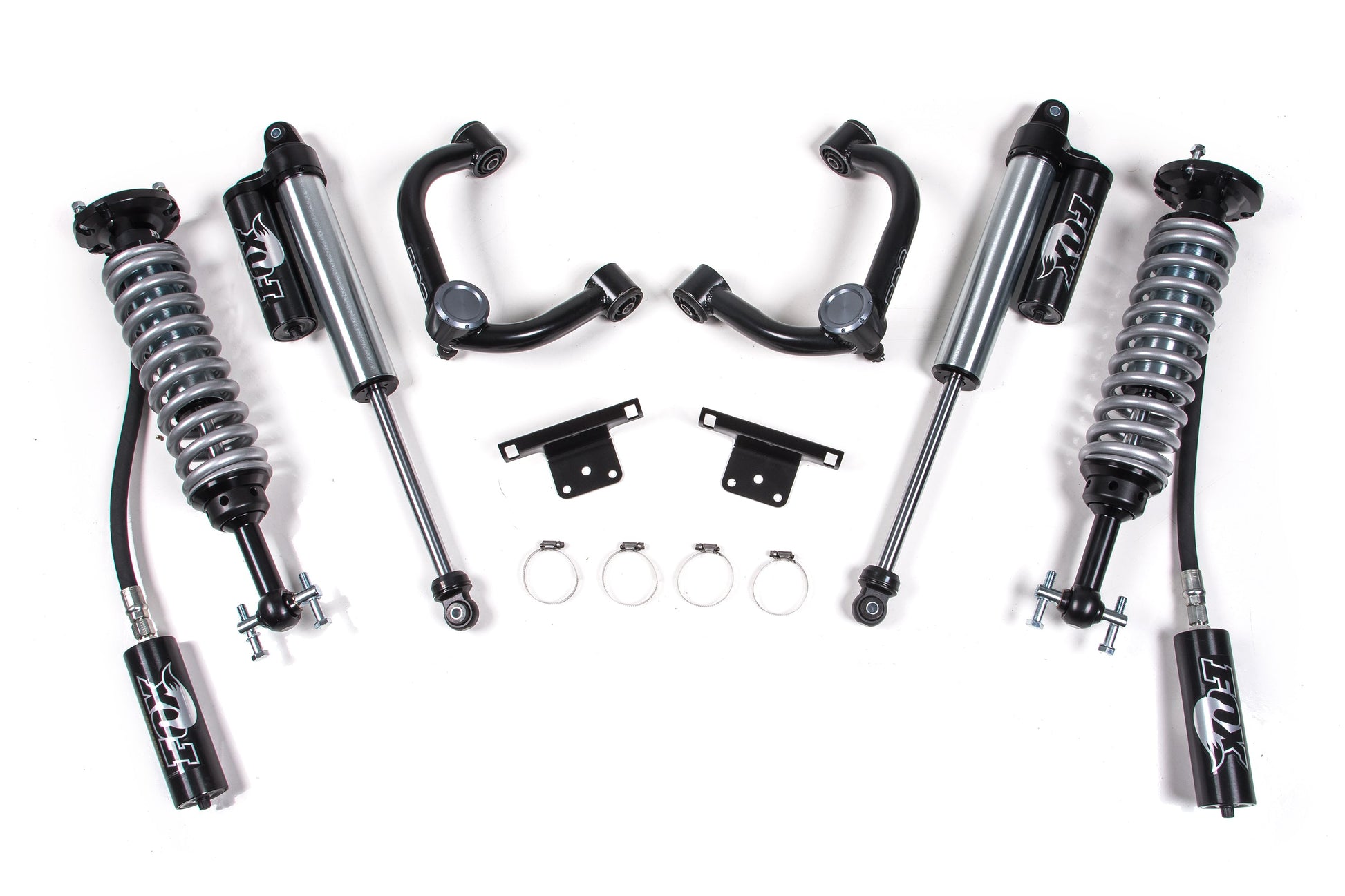

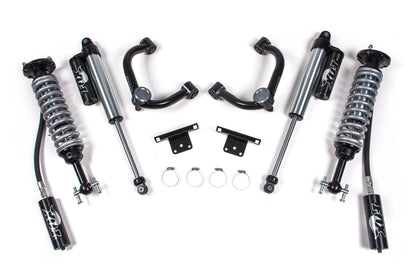

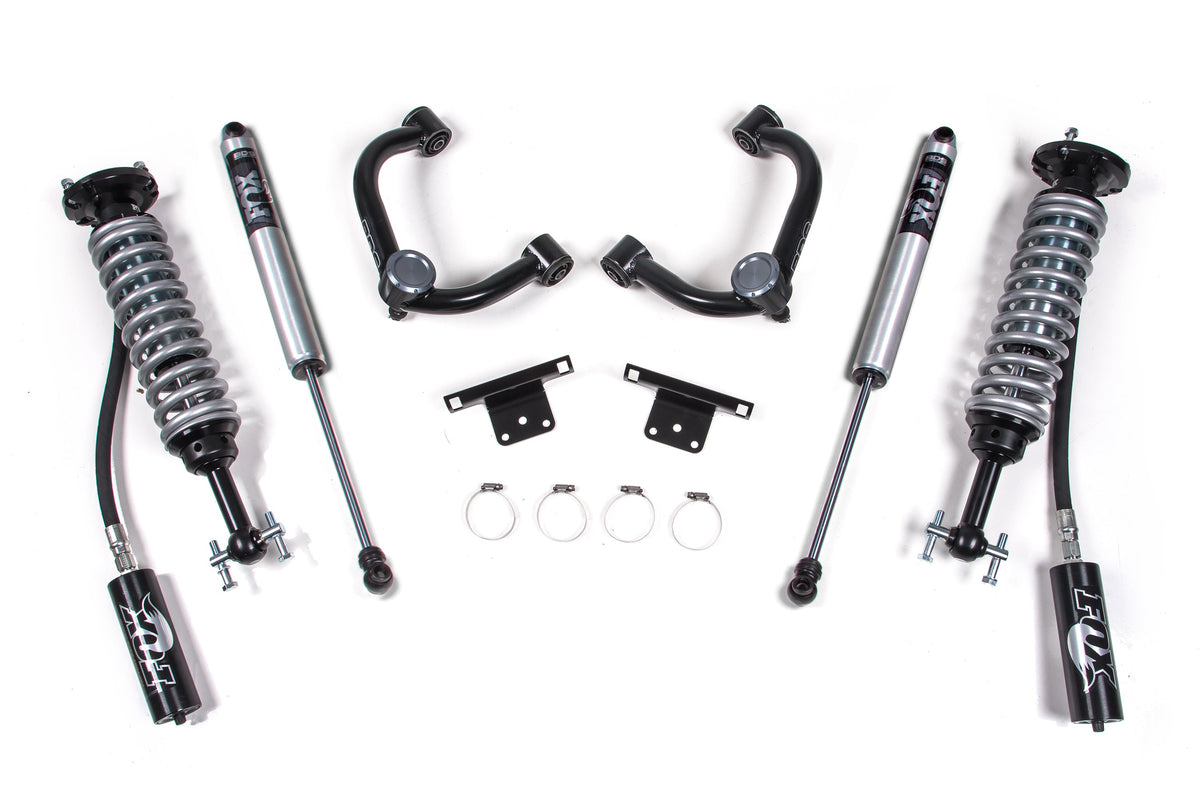

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123253 | Upper Control Arm Kit | Ford F150 (04-20) |
| 1 | FOX88306132 | FOX 2.5 Coilover Shocks w/ DSC Reservoir Adjuster | 0-2 Inch Lift | Factory Series | Ford F150 (15-25) 4WD |
For: FOX 2.5 Piggyback DSC / FOX 2.5 Coil-Overs with DSC Adjuster
| Qty | Part | Description |
|---|---|---|
| 1 | FOX88326002 | FOX 2.5 Rear Shocks w/ DSC Reservoir Adjuster | 0-1.5 Inch Lift | Factory Series | Ford F150 (04-20) |
For: FOX 2.0 Performance Series / FOX 2.5 Coil-Overs with DSC Adjuster
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98224651 | FOX 2.0 IFP Rear Shock | 0 Inch Lift | Performance Series | Ford F150 (04-20) 4WD |
Features
- FOX reservoir shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- HD Upper control arms provide superior strength and proper alignment
- Adjustable height to fine tune
- Provides level stance from front to rear
- Easy, 100% Bolt On installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended wheels & tires
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Installation
- Estimated install time3 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Level out your 2014-2020 Ford F150 truck and improve the ride with this 2-inch lift kit featuring FOX 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
DSC Adjustment
FOX 2.5 coilovers are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Upgrade your 2014–2020 Ford F150 4WD with this 2" BDS kit featuring FOX 2.5 coilovers, HD UCAs, and FOX 2.0 rear shocks. Clears up to 35" tires.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
