BDS Suspension 2 Inch Leveling Kit · FOX 2.0 Coilover Ford F150 (21-25) 4WD
- Front lift 2"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 0"
- Shocks included
- Install 3 hrs
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Will work on models with or without ride height sensors
- Works with bar pin lower strut mounts. For eye-style lower strut mounts use 2009-13 model kits.
- Sensor mounts are designed to keep the sensor arm in the stock position (the same position as the OE control arm).
- Not designed to work with trucks with CCD.
- Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use the appropriate ball joint separation tool.
- For replacement ball joints, use BDS081203. The ball joint is directional and must be installed with the dot facing either inward or outward on the vehicle, otherwise, damage may occur.
- Special Service Tool 204-592 is recommended to dislodge the ball joint.
- Tremor Models will net zero inches of lift with this kit.
- Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1911FSL |
| UPC / GTIN | 840416410754 |
| Front Lift Height | 2" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 0" |
| Rear Lift Method | Stock |
| Shocks Included | Yes |
| Install time | 3 hrs |
| Difficulty | Moderate |
| Required Tools | Ball Joint Separation Tool |

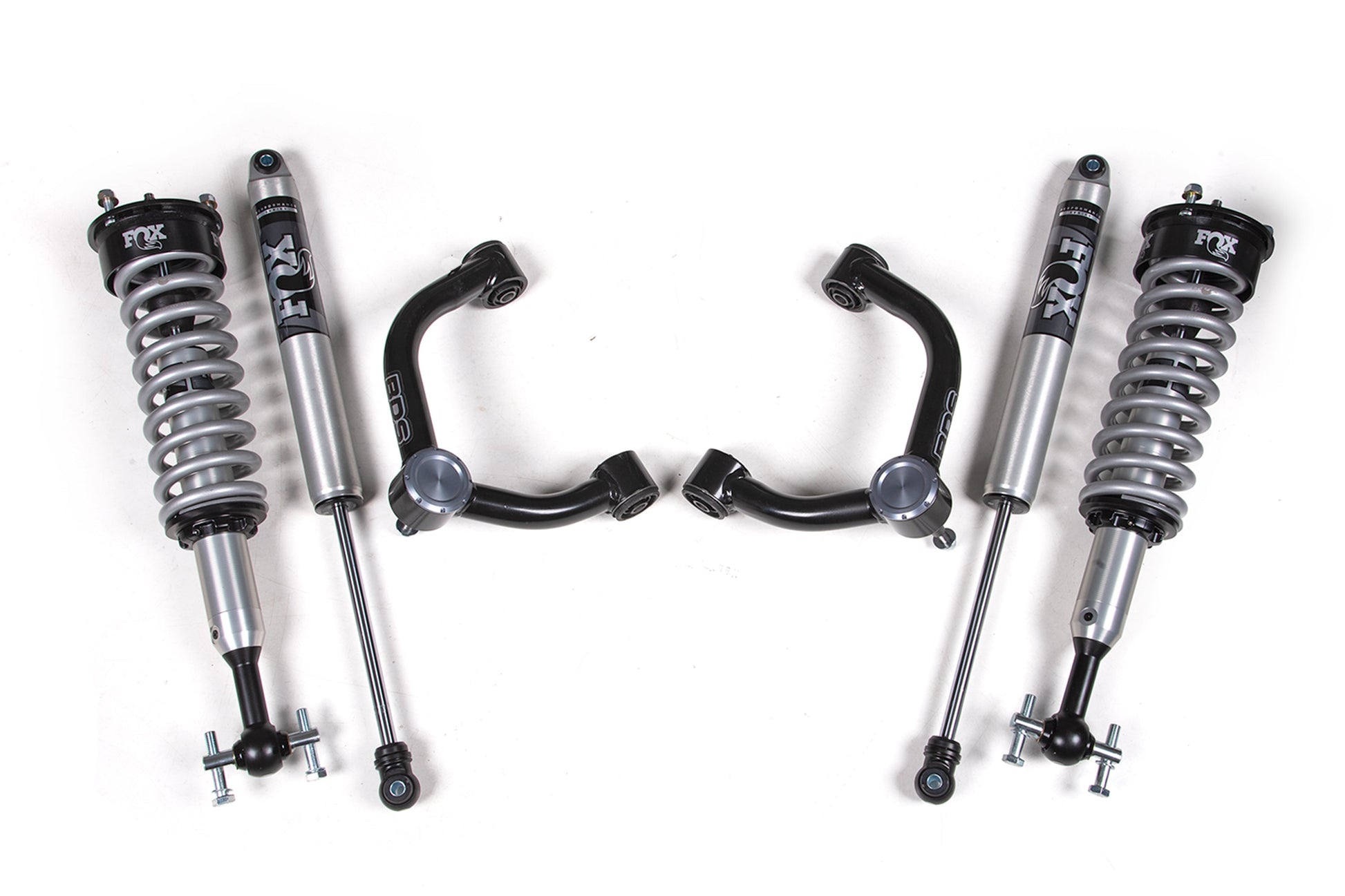

What's in the box
| Qty | Part | Description |
|---|---|---|
| 2 | FOX98502146 | FOX 2.0 Coilover IFP Shock | 0-2 Inch Lift | Performance Series | Ford F150 (21-25) 4WD |
| 2 | FOX98524265 | FOX 2.0 IFP Rear Shock | 0-1 Inch Lift | Performance Series | Ford F150 (21-25) 4WD |
| 1 | BDS123262 | Upper Control Arm Kit | Ford F150 (21-26) | With Sensor |
Features
- FOX Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- HD Upper control arms provide superior strength and proper alignment
- Adjustable height to fine tune
- Provides level stance from front to rear
- Easy, 100% Bolt On installation
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
- Functions with Blue Cruise
Recommended wheels & tires
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Installation
- Estimated install time3 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
Level out your 2021-2025 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Coilover Shocks
These FOX 2.0 Performance Series coilovers offer impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.
HD Upper Control Arms
Built for strength, performance, and increased travel, these upper control arms are ready to bolt in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning, allowing additional down travel and camber adjustment. At the frame mounting ends, durometer-specific rubber bushings provide maintenance-free operation. At the other end, a quality greaseable ball joint ensures smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap, ready for installation right out of the box.
Level your 2021–2025 Ford F150 4WD with FOX 2.0 coilovers. Includes HD UCAs, rear FOX shocks, and maintains factory ride while allowing up to 35" tires.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
