BDS Suspension 2.5 Inch Lift Kit W/ Radius Arm · FOX 2.5 Performance Elite Coilover Conversion Ford F450 Super Duty (23-26) 4WD
- Front lift 2.5"
- Lift 2-3.5"
- Max tire 35 x 12.5
- Rear lift 1"
- Shocks included
- Install 5 hrs
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Traction Bars
Steering Stabilizers
Accessories
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Fits diesel models only
- These kits are designed for the F-450 style front end . They do not work with the standard Ford Super Duty F-250/350 axle width.
- Vehicles with radius arm mounted ride height sensors will require BDS123303
- Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
- Wheel/Tire Specs:
- - Max Tire Size: 35x12.50
- - Front Wheel: 20x8.25, 8.76" BS
- - Rear Outer: 20x8.25, -3.33" BS
- - Rear Inner: 20x8.25, 9.11" BS
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS1307FPE |
| UPC / GTIN | 840416400793 |
| Front Lift Height | 2.5" |
| Front Lift Method | Coil-Over |
| Lift Height | 2-3.5" |
| Max Tire Size | 35 x 12.5 |
| Rear Lift Height | 1" |
| Rear Lift Method | Block |
| Shocks Included | Yes |
| Install time | 5 hrs |
| Difficulty | Moderate |
What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS123263 | Radius Arm Upgrade | Ford F250 / F350 Super Duty (23-26) & Ford F450 / F550 / F600 Super Duty (23-26) 4WD |
| 1 | FOX88326096 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 0-1.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88326097 | FOX 2.5 Remote Reservoir Front Shocks - DSC | 2-3.5 Inch Lift | Performance Elite Series | Ford F250/F350 Super Duty (17-26) 4WD |
| 1 | FOX88406426 | FOX 2.5 Coilover Shocks w/ DSC Reservoir | 2.5-3.5 Inch Lift | Performance Elite Series | Ford F250 / F350 Super Duty (2.5 Inch Lift: 05-19) | (3.5 Inch Lift: 20-26) 4WD |
Features
- FOX 2.5 Coilover mounts in factory coil bucket location
- Adds additional secondary FOX 2.5 Performanc Elite shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Recommended wheels & tires
- 35 x 12.5 with and in. Backspace
Installation
- Estimated install time5 hrs
- DifficultyModerate
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

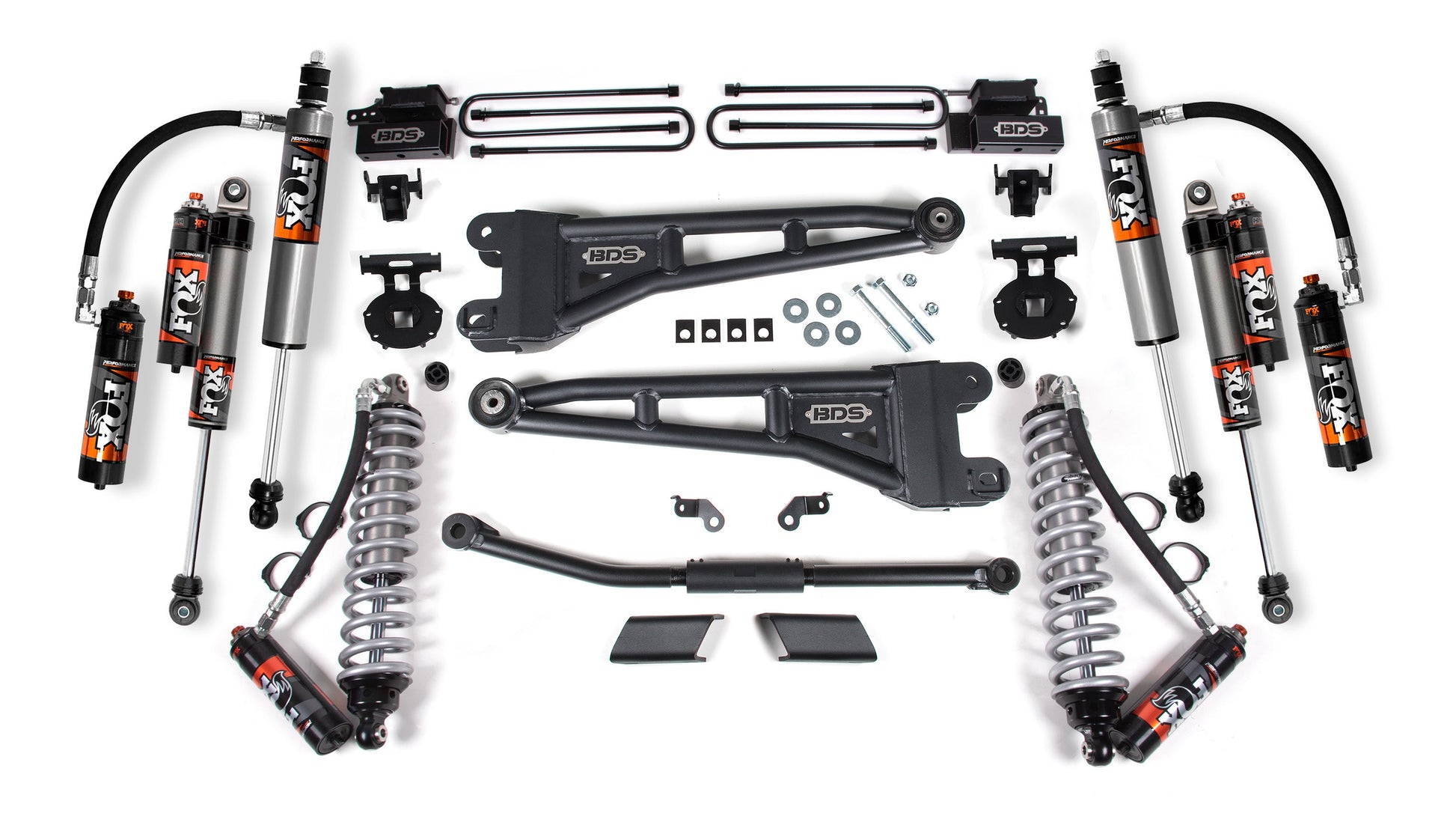

Build the ultimate 2023-2026 Ford F450 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.5 Performance Elite shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX 2.5 Performance Elite shocks.
FOX Performance Elite Coilover
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Upgrade your 2023–2026 Ford F450 with a 2.5" BDS radius arm lift kit featuring FOX 2.5 Performance Elite coilovers, HD radius arms, and full steering correction.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
