BDS Suspension 1 Inch Leveling Kit · FOX 2.5 Performance Elite Series Toyota Tundra TRD Pro (22-26) 4WD
- Front lift 1"
- Lift 0-1.5"
- Max tire 295 / 65
- Rear lift 0"
- Shocks included
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3” Lift)
- Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals.
- For replacement ball joints, order BDS088200. Ball joints are not directional allow for max range of motion with 2”-3” lifts.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Plan for a professional wheel alignment after installing any lift or leveling kit.
- Going to bigger tires as well? Speedometer recalibration may be needed, and some tire and wheel combinations need trimming. Check the recommended wheels and tires, or ask us before you order.
Specifications
| Brand | BDS Suspension |
|---|---|
| Part number | BDS844PES |
| UPC / GTIN | 840416435603 |
| Front Lift Height | 1" |
| Front Lift Method | Coil-Over |
| Lift Height | 0-1.5" |
| Max Tire Size | 295 / 65 |
| Rear Lift Height | 0" |
| Rear Lift Method | Stock |
| Shocks Included | Yes |

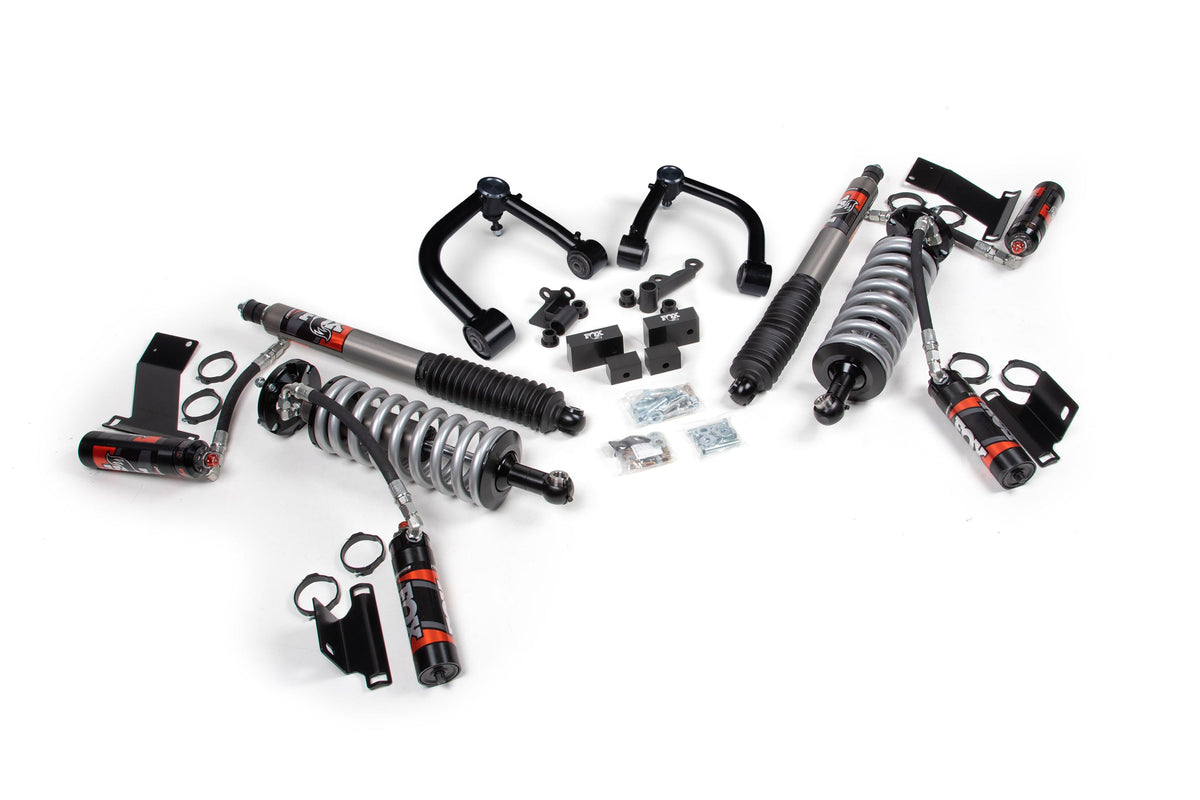

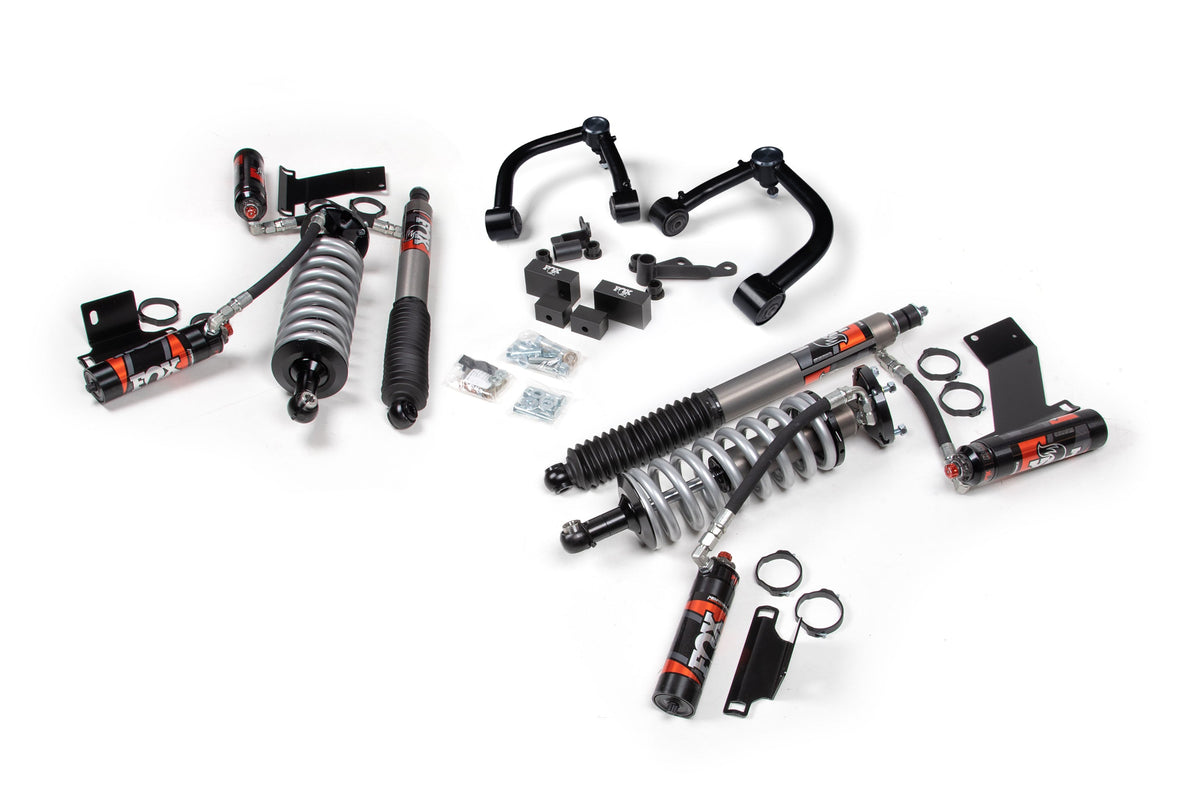

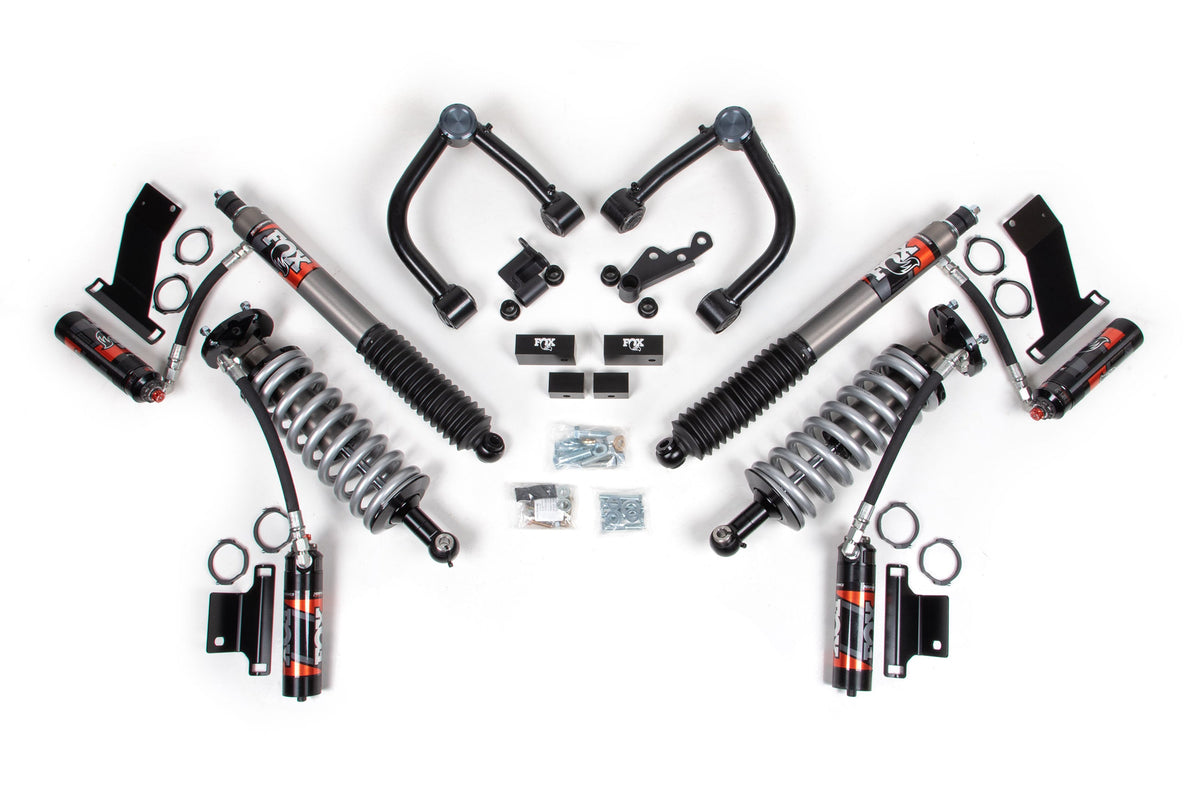

What's in the box
| Qty | Part | Description |
|---|---|---|
| 1 | BDS128254 | Upper Control Arm Kit | Toyota Tundra (22-26) |
| 1 | FOX88406318 | FOX 2.5 Remote Reservoir Front Coilover | 0-3 Inch Lift | Performance Elite Series | Toyota Tundra (22-26) |
| 1 | FOX88326139 | FOX 2.5 Remote Reservoir Rear Shocks - DSC | 0-1.5 Inch Lift | Performance Elite Series | Toyota Tundra (22-26) |
Features
- FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock
- BDS performance UCAs increase strength and allow for more suspension travel
- FOX 2.5 Performance Elite series DSC rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Fitment
| Years | Vehicle |
|---|---|
| 2022-2026 | Toyota Tundra: TRD Pro |
Use the fit check above with your truck selected, or ask a specialist if your trim isn't listed.
Recommended wheels & tires
- 295 / 65 with 20 x 9 and Stock in. Backspace
- 285 / 75 with 18 x 9 and 6.125" in. Backspace
- 295 / 60 with 20 x 9 and 5.5 in. Backspace
Overview
Unleash the potential of your TRD PRO with with this 1" Coilover Lift Kit. Whether you're looking to improve ground clearance, enhance suspension travel, or simply add a more aggressive stance, this kit delivers performance without compromise.
FOX Performance Elite Coilovers & Rear Shocks:
Tuned for precision and durability, the FOX Performance Elite series offers excellent on-road comfort and exceptional off-road control. These coilovers are adjustable and built with race-proven technology to handle everything from daily driving to serious trail duty.All the FOX Coil-Over Advantages Plus:
- Dual Speed Compression (DSC) Adjuster Increases both low and high-speed compression levels up to 25%
- Easy twist knobs for Low-Speed and High-Speed Compression adjustment
- Provides added control and comfort for on-road use
- More aggressive damping for use off-road
BDS Upper Control Arms:
High-strength BDS UCAs provide superior durability and articulation while maintaining proper alignment geometry. These arms are specifically engineered to work seamlessly with the FOX coilovers and factory suspension.Front Differential Drop Kit Included:
Designed to maintain optimal CV angles, the included differential drop kit corrects front driveline geometry, ensuring smooth, reliable performance and extending component life under load.Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
Do I need an alignment after installing?
Yes. Any lift or leveling kit changes suspension geometry, so get a professional alignment after installation.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
