BDS Suspension 1-2 Inch Leveling Kit | Performance Spring | Ford F250/F350 Super Duty (1 Inch Lift: 17-19) | (2 Inch Lift: 20-26) | 4WD | Diesel & Gas

BDS Suspension 1-2 Inch Leveling Kit | Performance Spring | Ford F250/F350 Super Duty (1 Inch Lift: 17-19) | (2 Inch Lift: 20-26) | 4WD | Diesel & Gas

PART #

$1,229.33

SALE CALL OR CHAT TO ORDER

Shipping calculated at checkout.

Product variants

Quantity

Inventory: Call or Live-Chat

View full details

Important: Always read the entire product description, including Features, Important Notes, Specifications, and Fitment data, before making a purchase. Components contained in images and descriptions may change based upon your selections.

Simply level out your Ford F250 and F350 Super Duty truck with this performance spring 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

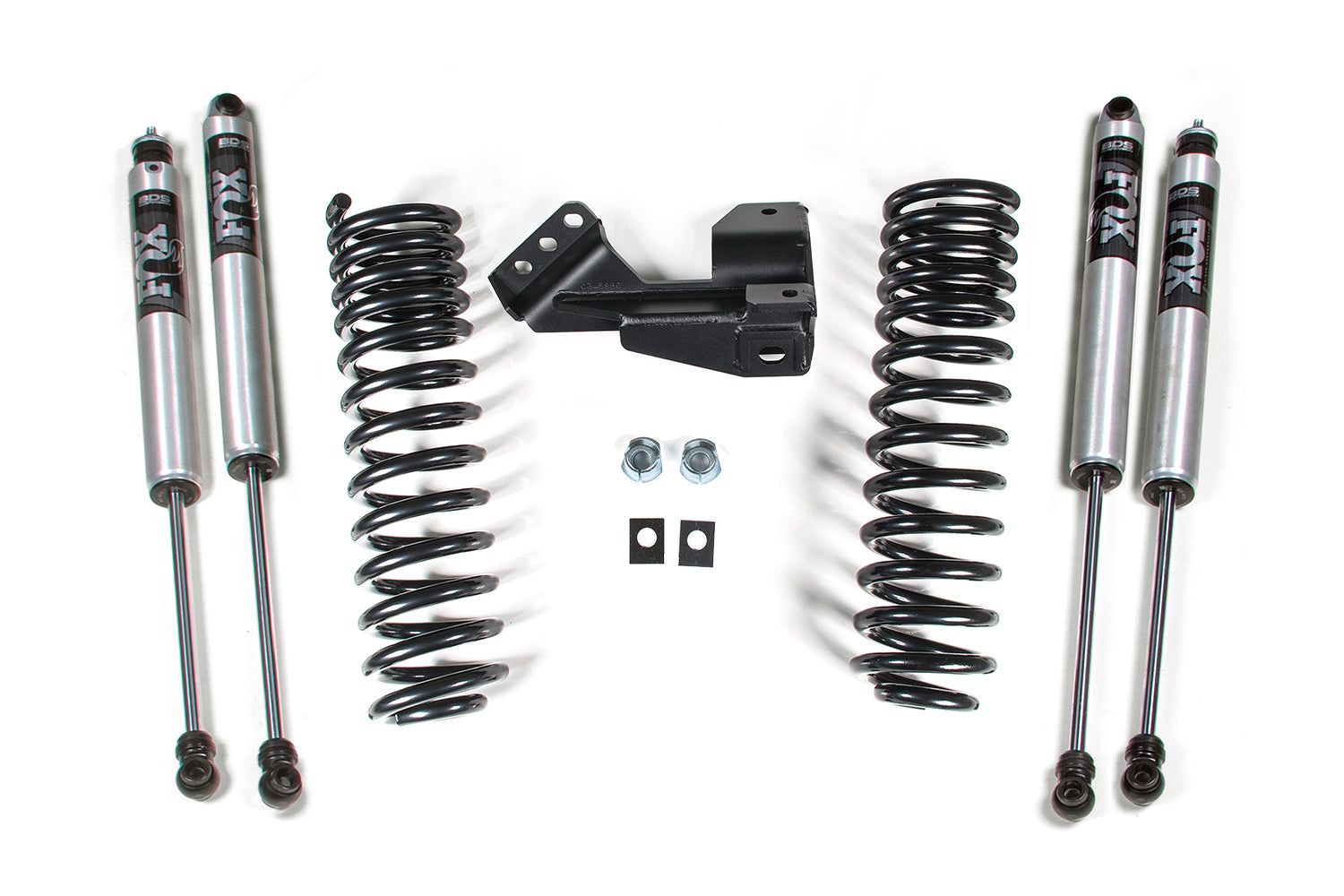

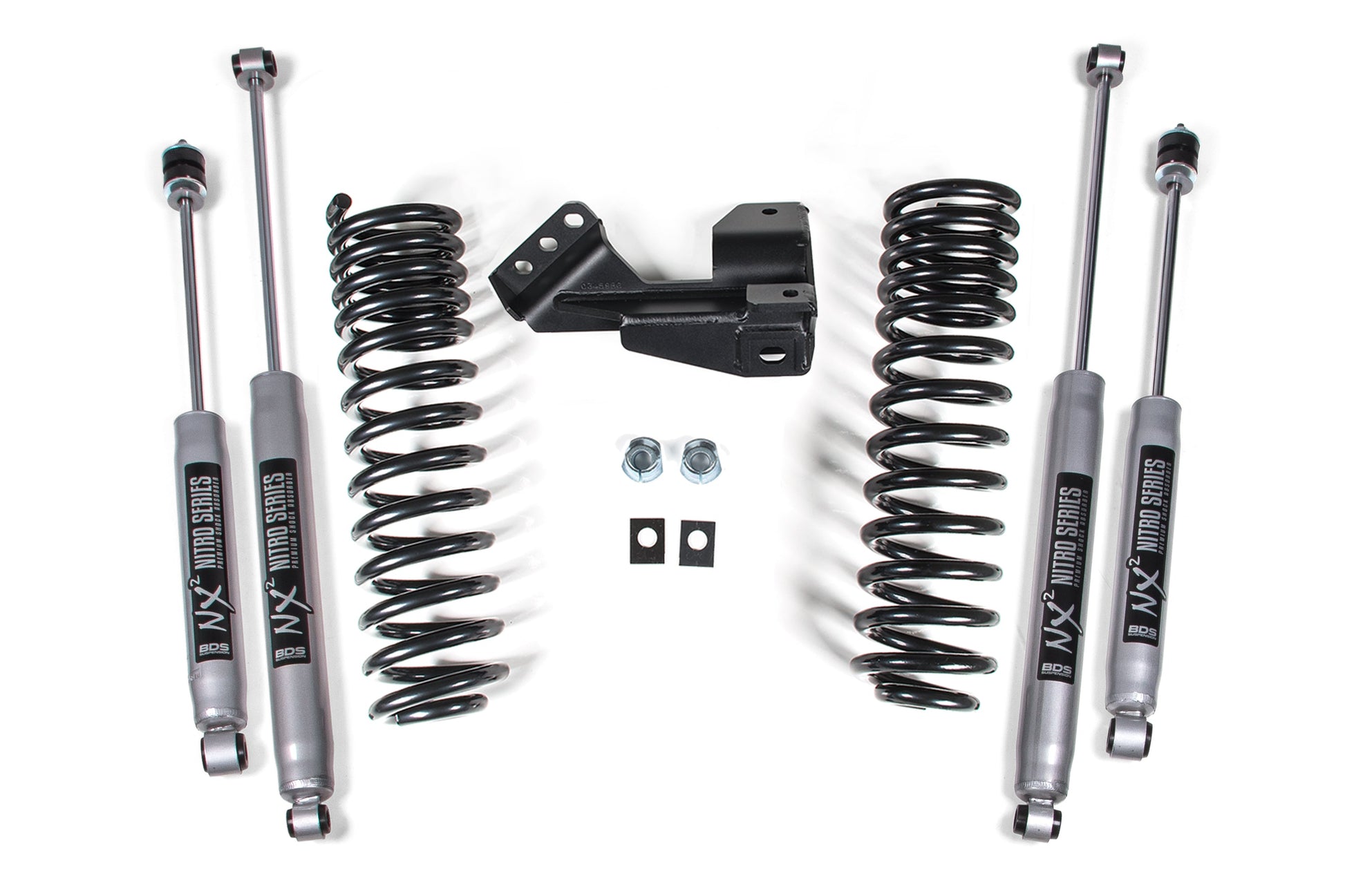

Up front, the kit includes dual rate Pro-Ride coil springs, track bar relocation bracket for steering correction, and alignment cams. With your choice of NX2 twin tube gas or FOX 2.0 Performance Series monotube IFP shocks, you'll be able to further dial in the comfort and control of your F250/F350.

Pro-Ride Coil Springs

A pair of full-length Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. These dual rate springs utilize a softer intial spring rate over factory for improved on-road comfort, while also using a higher secondary spring rate to provide stability and performance in harsh terrains.

BDS 1–2" leveling kit for 2017–2026 Ford F-250/F-350 includes Pro-Ride coil springs, track bar bracket, and premium shock options.

Features

Easy, 100% Bolt-on installation
Pro-Ride dual rate coil springs ride smooth through any terrain
Heavy duty track bar relocation bracket designed to recenter the front axle
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

2017-2019 models net 1" of lift height; requires an additional 1" coil spring spacer to sit level.
2020-2025 models net 2".
Kit designed for diesel models; Gas models will achieve approx. 1/2" more ride height.
2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional Information.
Fits SRW models only.
Vehicles with radius arm mounted ride height sensors will require BDS123303.
2023+ Models: Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.

Quick Specs

Recommended Wheels and Tires

Note: trimming may be required.
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Instructions

Estimated Install Time: 4 hrs
Difficulty: Moderately Easy
Required Tools: 30mm Socket
Instructions 1
Instructions 2
