JKS Manufacturing

JKS Steering & Caster Correction Geometry Upgrade Kit | Wrangler JK

JKS Steering & Caster Correction Geometry Upgrade Kit | Wrangler JK

PART #

$529.95
$529.95
SALE Backordered
Shipping calculated at checkout.

Inventory: Live-Chat or Call
View full details

Important: Always read the entire product description, including Important Notes and Fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

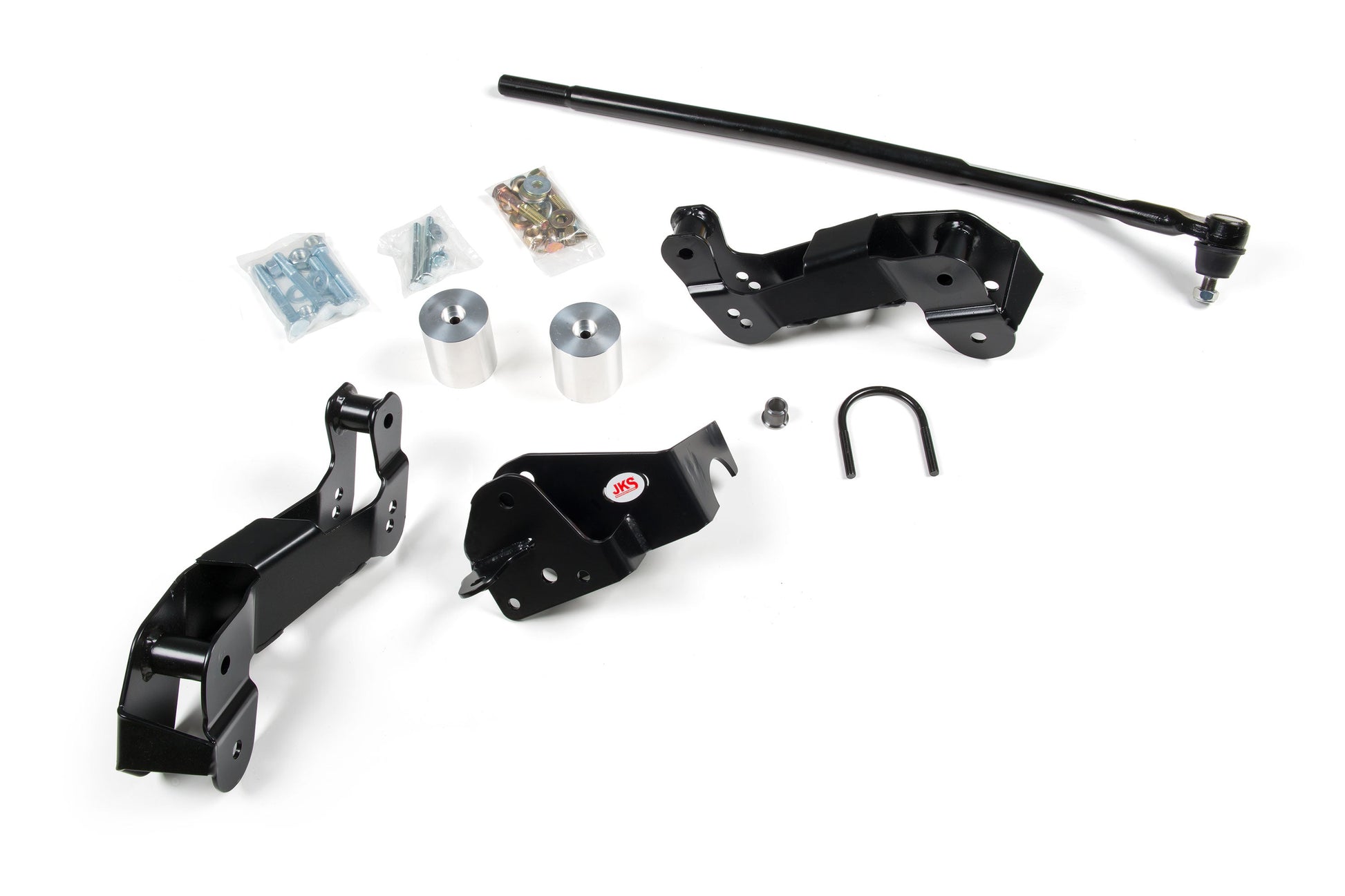

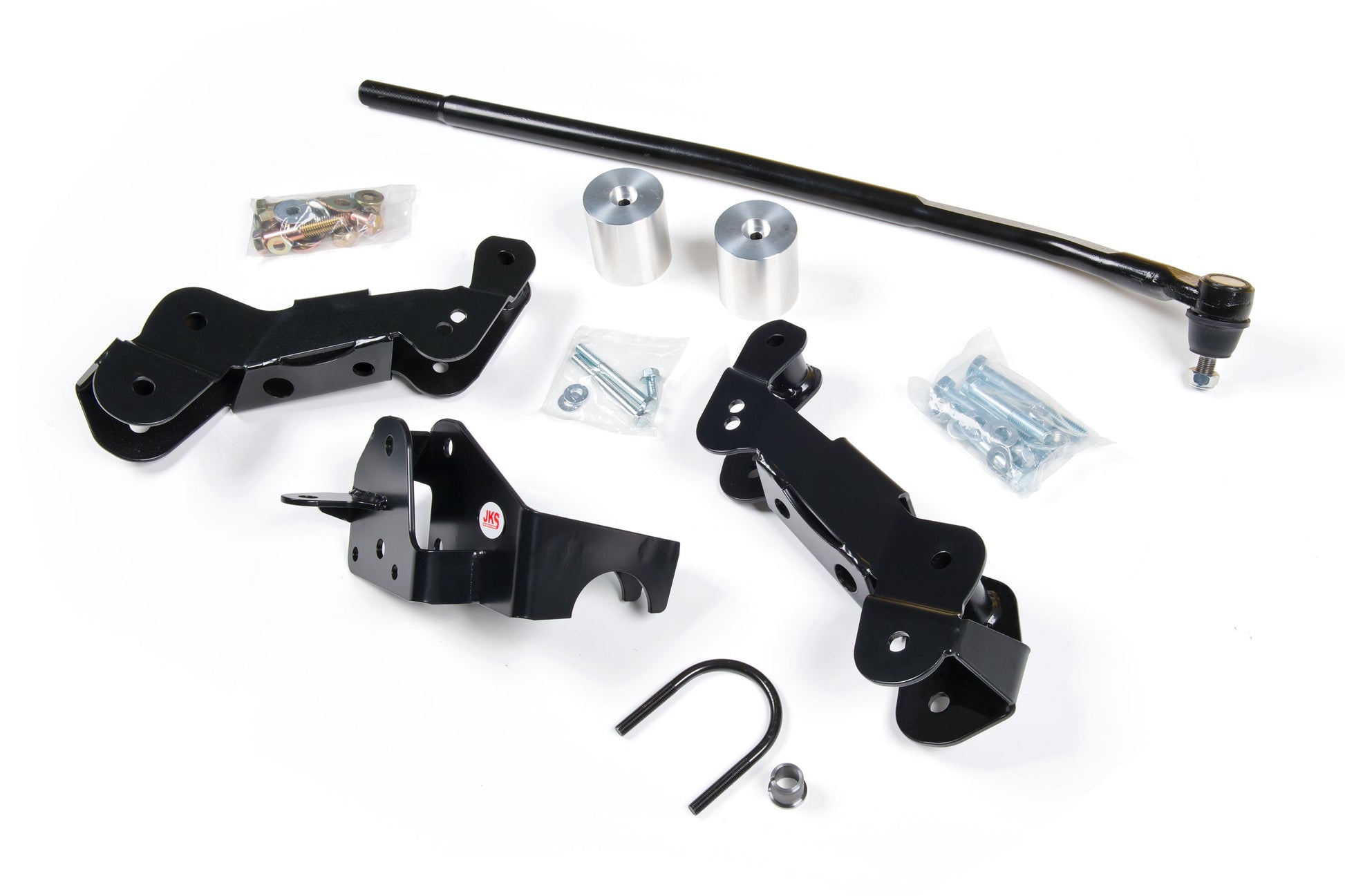

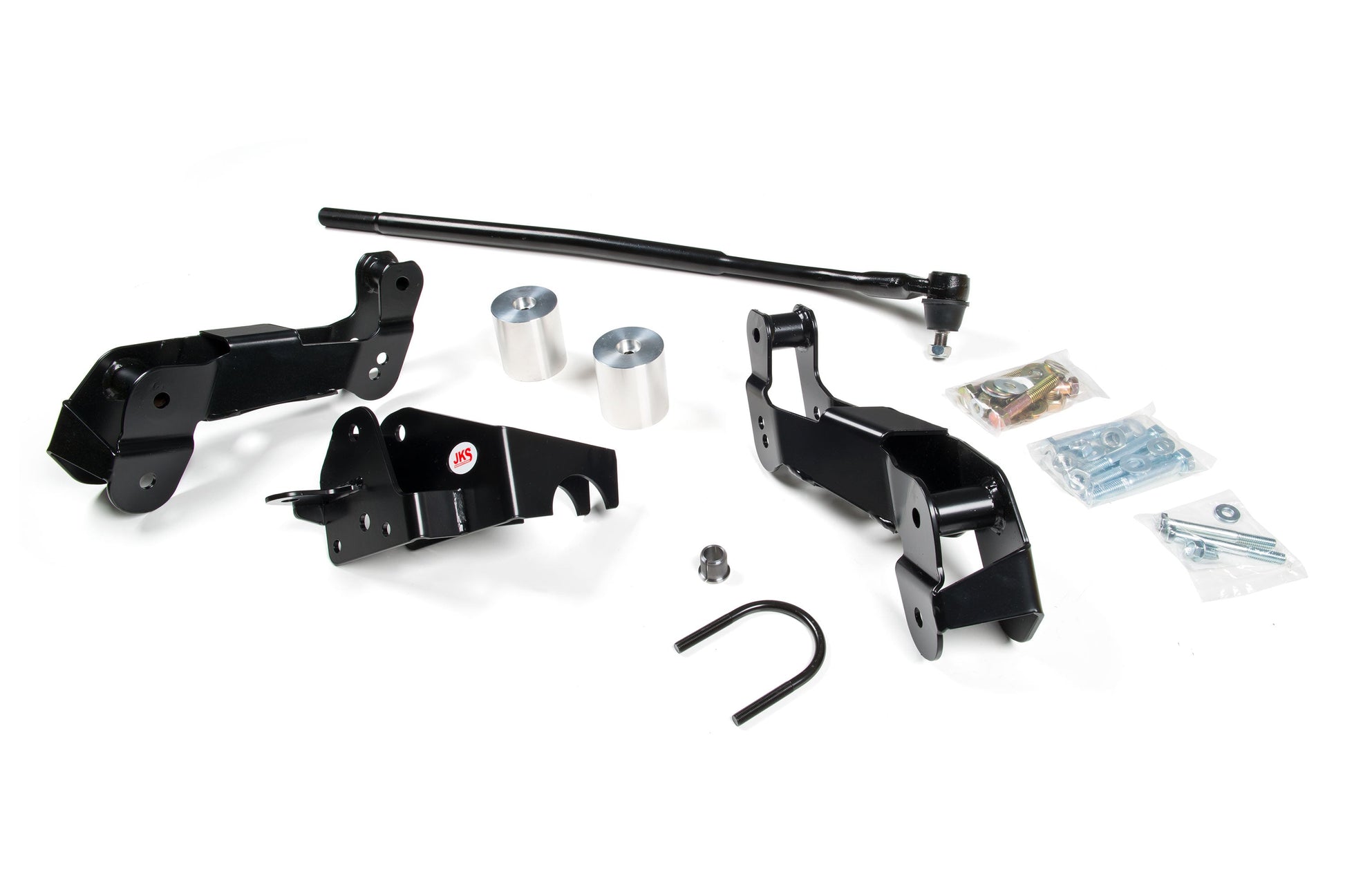

Upgrade the handling of your Jeep Wrangler JK with a JKS Steering and Caster Correction Upgrade Kit. Proper geometry is important for a safe, enjoyable driving experience. You get a Drag Link Flip System plus our popular JKS6200 control arm relocation bracket system all in one kit. Works with JK lift systems of 2.5-5" of lift. The drag link flip system is comprised of a new drag link, a Track Bar bracket and a tapered steering arm insert. The design flattens out steering angles with lift heights of 2" and above. Experience better steering feel without bump steer. In order to accommodate these the flip kit, 3" tall front aluminum bump stop extensions are included to provide the proper clearance at full bump. The combination of these brackets with the high steering components create an amazing handling package. This upgrade kit can be used with several different lift systems setups. There are a few items that are required for proper fit and function of this kit in combination with other systems: You must use a factory pitman arm; the design cannot be combined with other track bar relocation systems, (although most popular adjustable track bars are ok) and you must maintain a minimum of 3" worth of bump stop extension over factory. Works with either the 2.5 or 3.5" JSpec systems. The 2" JSpec front bump stops will need to be replaced with the 3" provided in the Upgrade Kit.

Features

  • Reduced control arm angles
  • Corrects caster for 2"-4.5" of lift
  • Improves the front drive shaft CV joint operating angles through full wheel travel
  • Brackets are made from heavy-duty 7GA steel and are fully boxed and welded for superior strength

Brand Overview

Since 1989, JKS Manufacturing has developed some of the world?s most widely used and respected products for Jeep vehicles. It all started when we pioneered the original Quick Disconnect brand of quick-release sway bar disconnects. Since then our product range has expanded to include such favorites as the ACOS line of height-adjustable coil spring spacers, and perhaps our most advanced creation to date, J-Spec Suspension systems including the JK Front Coilover Conversion.
