ICON 2023-2026 F-250/F-350 Ford Super Duty 4WD, 2.5 Centerline Steering Stabilizer Kit, Piggyback Reservoir
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #528: After installation, cycle steering left and right to ensure full range of steering is achievable and stabilizer is installed correctly
- APPLICATION NOTE #529: Use ICON 1” front bump stop spacers, part # 61112 (included with kit), unless the suspension system that you are using calls for larger bump stop spacers. If using a non-ICON configuration, cycle the suspension to verify that the stabilizer does not make contact upon full compression.
- APPLICATION NOTE #530: Mounts over stock front differential cover, not compatible with most aftermarket covers.
- APPLICATION NOTE #531: Not compatible with aftermarket tie rods
- APPLICATION NOTE #532: Not compatible with F-450/F-550. For F-450/F-550 fitment, consider part number 65054.
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 65053 |
| UPC / GTIN | 840103423876 |
| Adjustable Damping | No |
| Boot Included | No |
| Color | Black/Gray |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Mounting Bracket Included | yes |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Steering Stabilizer Configuration | Through-Shaft |
| Upper Mount Type | Clamp |
| Country of Origin | US |
| Warranty | 1 Year-Shock Absorber; Limited Lifetime-Mounting Bracket |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
- Provides symmetrical steering feel throughout input range
- Drastically increased steering damping over stock unit
- Offers increased wheel travel compared to ICON's dual steering stabilizer kit
- Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
- Piggyback reservoir design
- 6061 hard anodized aluminum shock body provides excellent corrosion resistance
- 7/8” chrome plated induction-hardened steel shaft
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function & feel throughout steering range
- 100% bolt-on installation
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

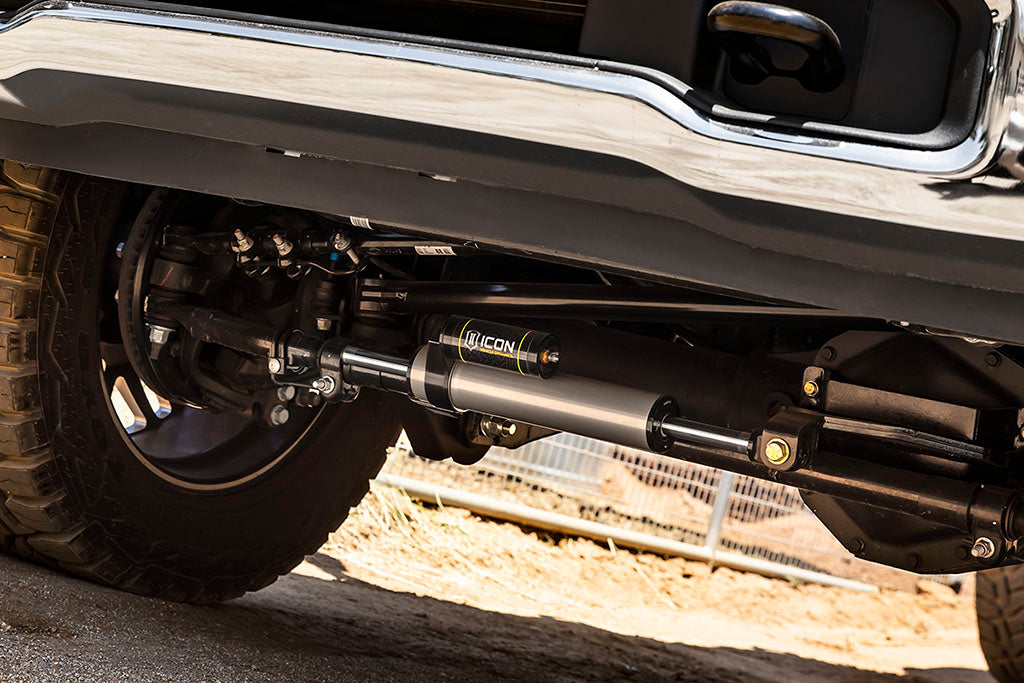

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation. This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8” chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range. Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
