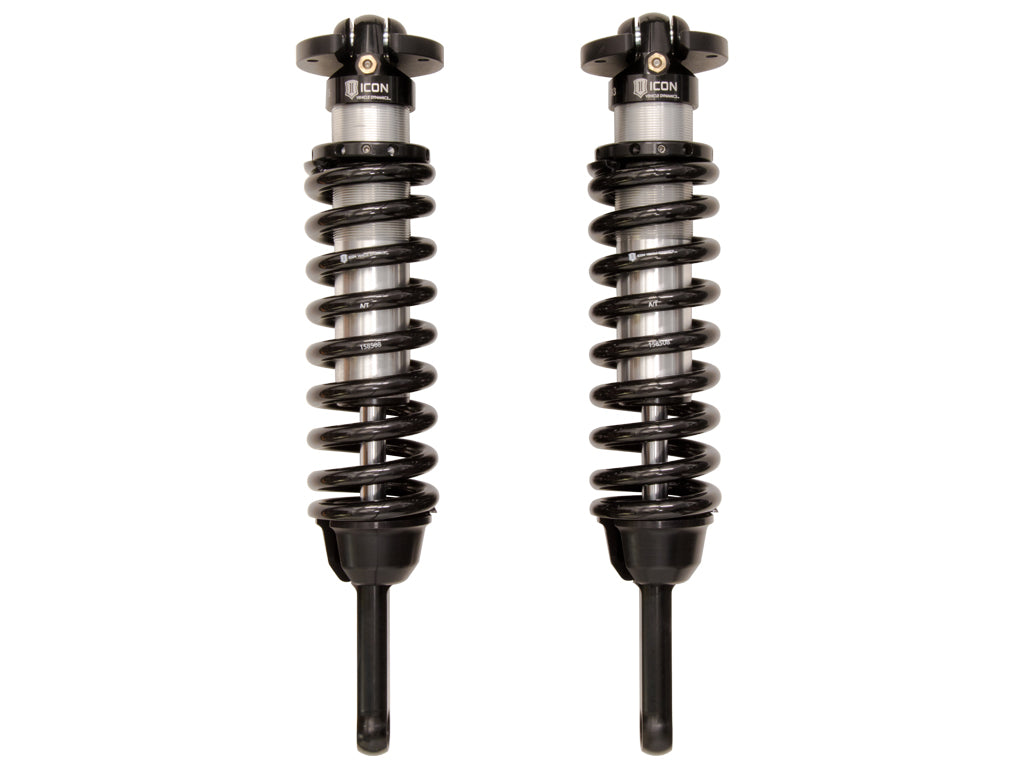

ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, Internal Reservoir

Name: ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, Internal Reservoir
Brand: ICON Vehicle Dynamics
SKU: 58635
Price: 1518.35 USD
Availability: InStock

PART #

$1,518.35

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models allowing the use of larger more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota Tacoma.

Features

Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves rebuilds and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

Oem wheels & tires fitment: yes; application note #110: trimming required for recommended tire size; application note #111: bump stop spacer kit 51045 can be installed to increase preload .
25” beyond maximum; tech note: will not fit 2005-2015 2wd 5-lug toyota tacoma models; tech note: 2005-2015 toyota tacoma will have front lift height range of 0-3.
5" over stock; tech note: 2017-2023 tacoma trd pro models will have front lift height range of 0-1.
25" over stock; recommended aftermarket wheels: icon alloys - 17x8.
5 with 4.
75” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 18x9 with 5.
00” backspace / 0mm offset; recommended aftermarket wheels: icon alloys - 20x9 with 5.
00” backspace / 0mm offset; recommended aftermarket tires: 33" x 11.
50" (larger tires may fit but fender trimming and modifications will be required.
); application note #18: these systems are to be used with aftermarket upper control arms only; application note #47: 700lb/in expedition coil available for heavier equipped vehicles; application note #55: shocks are fully serviceable.
Coilover heights indicated are for a stock equipped vehicle; application note #109: 2016-2023 tacoma lift range is 0-2.
75”

Quick SpecsOverview:

Spring Rate: 650 PPI
Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5 IN
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Material: Aluminum
OEM Wheels &
Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter: 0.875 IN
Spring Color: Black
Title: ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, Internal Reservoir

Additional Specifications:

Country of Origin: US
Warranty: 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs
Weight (lbs): 45.0
Vehicle Specific Fitment: Y

Instructions

I58635_REVB.pdf
