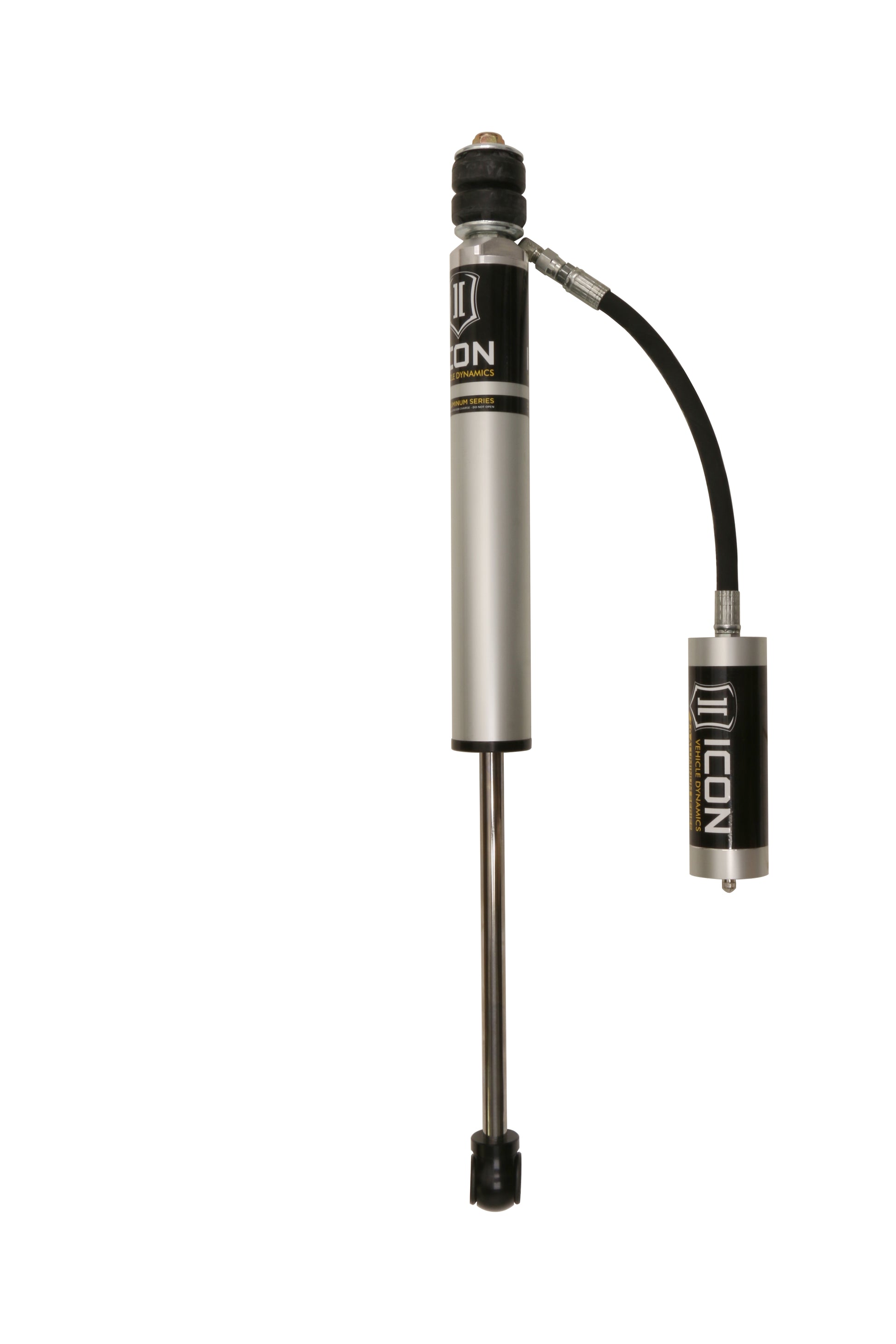

ICON 2005-2023 Toyota Tacoma, 0-1.5" Lift, Rear, 2.0 Aluminum Series Remote Reservoir Shock

Name: ICON 2005-2023 Toyota Tacoma, 0-1.5" Lift, Rear, 2.0 Aluminum Series Remote Reservoir Shock
Brand: ICON Vehicle Dynamics
SKU: 56503R
Price: 299.95 USD
Availability: InStock

PART #

$299.95

SALE Backordered

Shipping calculated at checkout.

Product variants

Quantity

Inventory: In Stock

View full details

Important: Always read the entire product description, including important notes and fitment information, before making a purchase. Components contained in images and descriptions may change based upon your selections.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% rebuildable
100% revalveable
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end top cap and internals ensure strength and durability
Polyurethane bushings zinc plated sleeves and forged steel mounting stems for OE factory type fitment
Application-specific reservoir mounting hardware
6063 anodized aluminum body and reservoir tubing for superb heat dissipation excellent corrosion resistance and high-tech appearance
Nitrile rubber top out bumper for noise free operation

Tech note: will not fit 2005-2015 5-lug 2wd toyota tacoma

Quick SpecsOverview:

Valving Type: Linear
Valving Type: Digressive
Adjustable Compression: No
Adjustable Ride Height: No
Self-Leveling: No
Active or Passive Suspension: Passive
Maximum Ride Height Raising Distance: 2 IN
Rod Diameter: .625 IN
Body Color: Gray
Color: Black
Color: Gray
Finish: Anodized
Shaft Material: Chrome
Mounting Hardware Included: Yes
Cylinder Outside Diameter: 2 IN
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: EYELET
Upper Mount Type: Stem
Boot Included: Yes
Gas Charged: Yes
Cylinder Color: Gray
Body Diameter: 2 IN
Body Material: Aluminum
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Rubber
Internal Rebound Spring: No
Remote Reservoir: Yes
Coil Spring Insulator(s) Included: No
Includes Bump Stop: No
Hydraulic Lockout: No
Shock Absorber Bore Size: 1.75 IN
Internal Rebound Bumper: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: NO
Adjustable Damping: No
Bore Diameter: 1.75 IN
Bushing Color: Black
Bushing Included: yes
Bushing Material: Rubber
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Configuration: Performance
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: Yes
Dust Shield: NO
External Reservoir: Yes
Material: Steel
Material: Aluminum
Quantity: 1
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625 IN
Suspension Type: Spring
Title: ICON 2005-2023 Toyota Tacoma, 0-1.5" Lift, Rear, 2.0 Aluminum Series Remote Reservoir Shock

Additional Specifications:

Country of Origin: US
Warranty: 1 Years
Weight (lbs): 7.0
Vehicle Specific Fitment: Y
