ICON 2020-2023 Jeep Gladiator/2019-2026 Ram 1500, Rear, Adjustable Billet Upper Link Kit
- Finish Anodized
- Material Aluminum
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models
- APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
- APPLICATION NOTE #657: Compatible with 0-2.5" of rear lift on 2019-2026 Ram 1500 Rebel
- APPLICATION NOTE #660: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels
- APPLICATION NOTE #661: Compatible with 0-3" of rear lift on most Ram 1500 submodels
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 22064 |
| UPC / GTIN | 840103408637 |
| Adjustable | Yes |
| Adjustable Control Arm | Yes |
| Attachments Included | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Material | Polyurethane, Rod End Bearing |
| Bushing(s) Included | Yes |
| Color | Gray |
| Construction | Billet |
| Control Arm Color | Silver |
| Control Arm Construction | Billet |
| Control Arm Material | Aluminum |
| End 1 Type | Bushing |
| End 2 Type | Rod End Bearing |
| Finish | Anodized |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Country of Origin | US |
| Warranty | Lifetime |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- CNC machined 6061 aluminum construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Adjustable while installed on vehicle for various lift heights & driveline angles
- ICON1K tested in extreme off-road conditions
- Covered by ICON's lifetime warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview

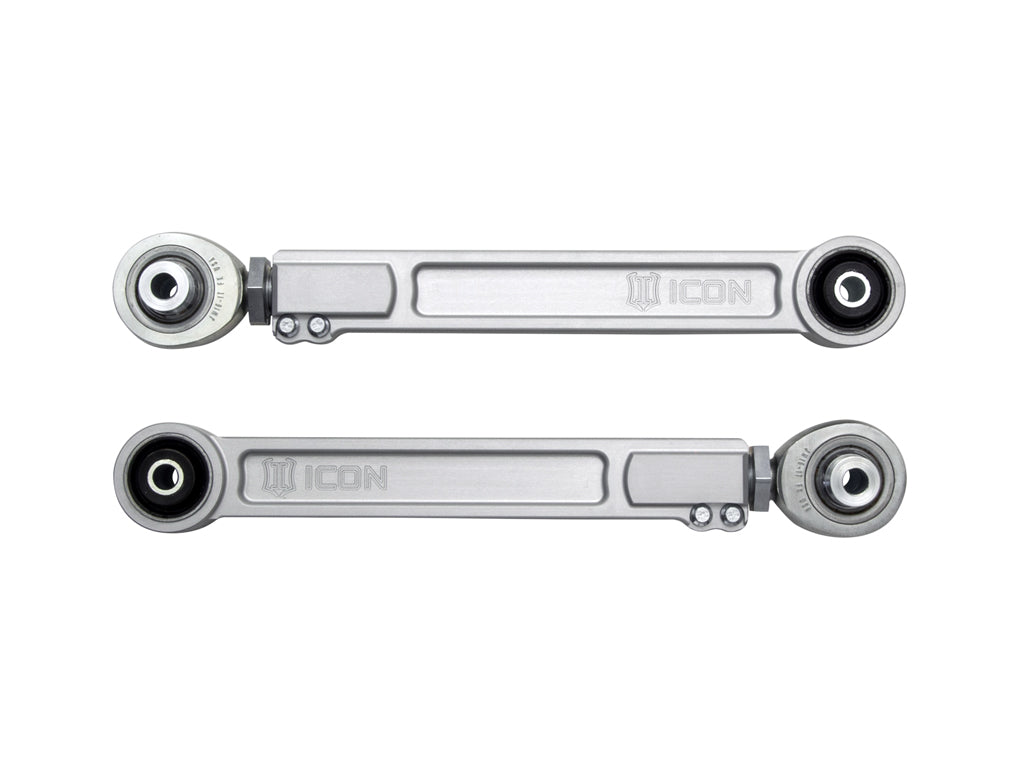

ICON’s billet aluminum rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2026 Ram 1500 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
