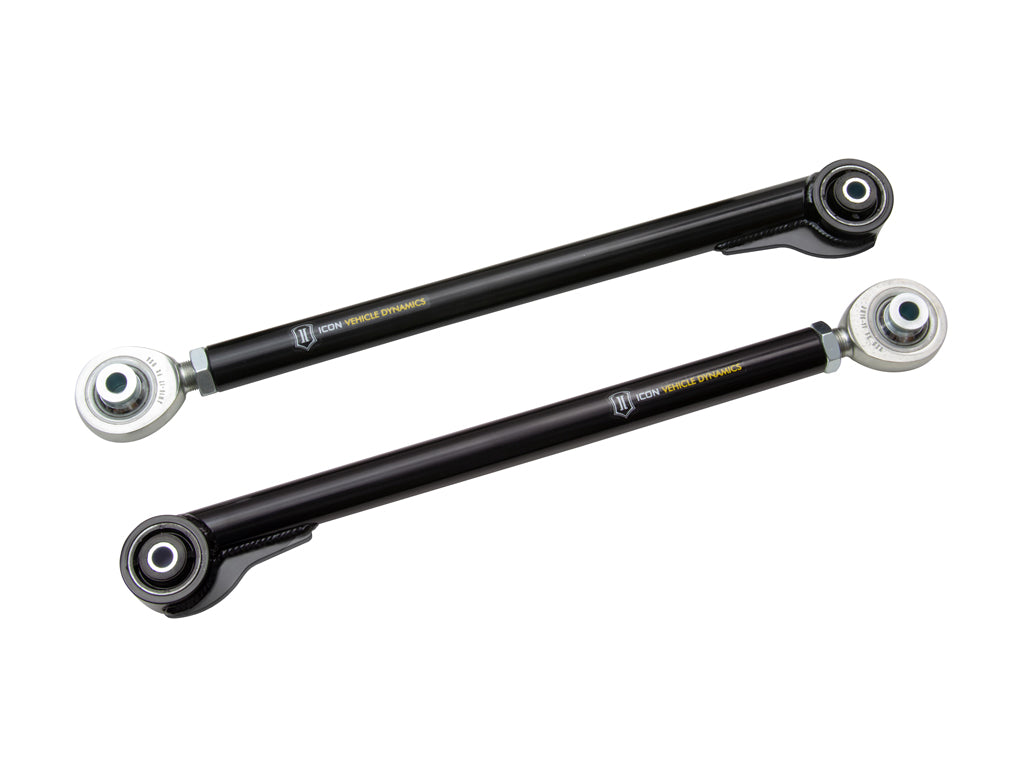

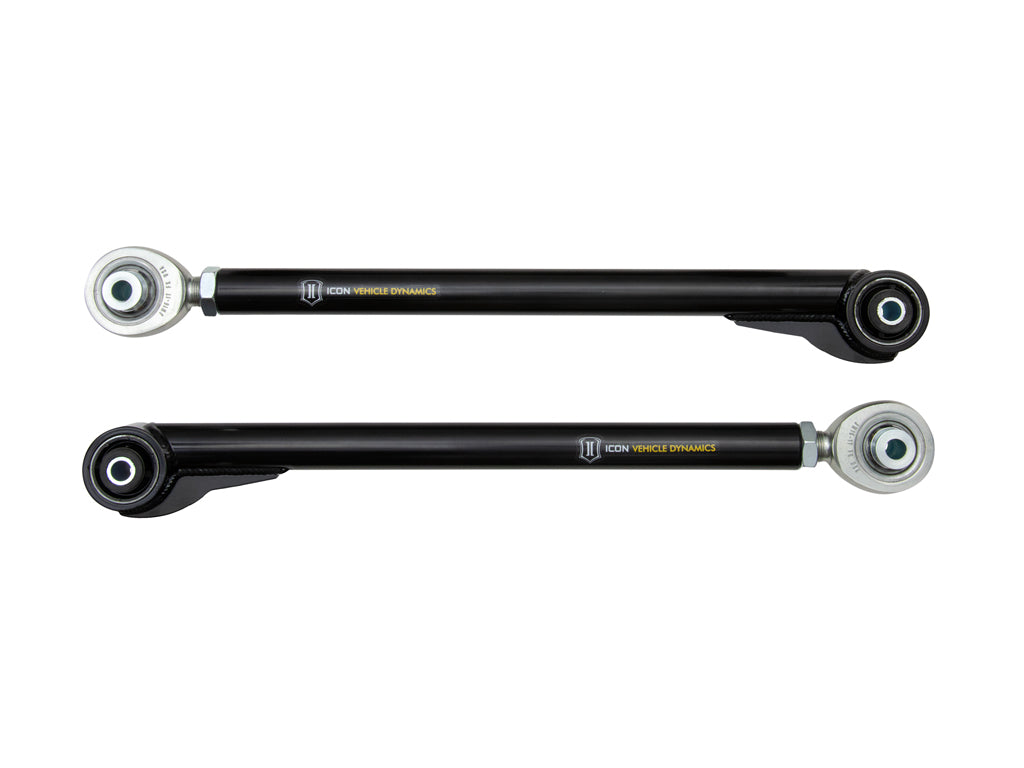

ICON 2020-2023 Jeep Gladiator/2019-2026 Ram 1500, Rear, Adjustable Tubular Lower Link Kit
- Finish Powdercoated
- Material DOM Steel
Questions about fitment? Live chat or call 866-235-4715
Complete your build
Optional add-ons
Recommended Add-Ons
Add-ons selected:
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models
- APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
- APPLICATION NOTE #657: Compatible with 0-2.5" of rear lift on 2019-2026 Ram 1500 Rebel
- APPLICATION NOTE #660: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels
- APPLICATION NOTE #661: Compatible with 0-3" of rear lift on most Ram 1500 submodels
Specifications
| Brand | ICON Vehicle Dynamics |
|---|---|
| Part number | 22063T |
| UPC / GTIN | 840103408910 |
| Adjustable | Yes |
| Adjustable Control Arm | Yes |
| Attachments Included | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Material | Polyurethane, Rod End Bearing |
| Bushing(s) Included | Yes |
| Color | Black |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | Steel |
| End 1 Type | Rod End Bearing |
| End 2 Type | Bushing |
| Finish | Powdercoated |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | DOM Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Country of Origin | US |
| Warranty | Limited Lifetime; Excludes Wearable Items |
California Proposition 65 warning applies to this product. www.P65Warnings.ca.gov
Features
- CNC machined & notched 1026 DOM steel construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Adjustable for various lift heights & driveline angles
- High clearance barrel design reduces risk of off-road hangups
- ICON1K tested in extreme off-road conditions
- Fabricated components covered under ICON's lifetime warranty
Installation
Free install support from the Trucks R Us tech team, for you or your shop.
Overview
The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2020-2023 Jeep Gladiator and 2019-2026 Ram 1500 to allow for increased suspension travel and articulation. Formed using 1 1/2” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Questions
Will this fit my truck?
Select your truck at the top of the page and the fit check will confirm it. If your exact trim is not listed, call 866-235-4715 or live chat and a fitment specialist will check it before you order.
Do you help with installation?
Yes. Our technical team helps you or your shop with installation and troubleshooting after delivery, on top of the manufacturer’s support.
What if the part has a problem?
We work the warranty claim with the manufacturer on your behalf, within the manufacturer’s warranty policy.
Can I return it?
Most items can be returned within 30 days. See our return policy for details.
No reviews for this part yet. Trucks R Us is rated on Trustpilot, Google and the BBB.
About ICON Vehicle Dynamics
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part... Shop all ICON Vehicle Dynamics
