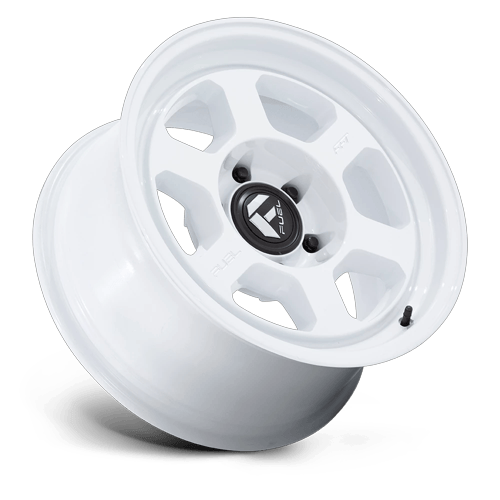

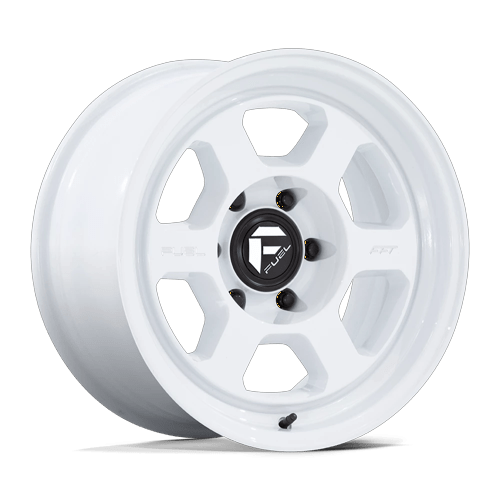

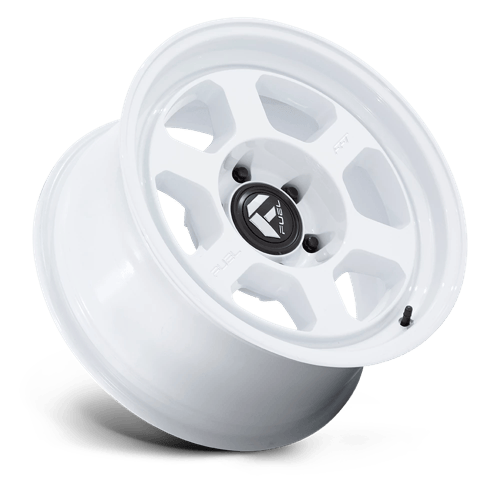

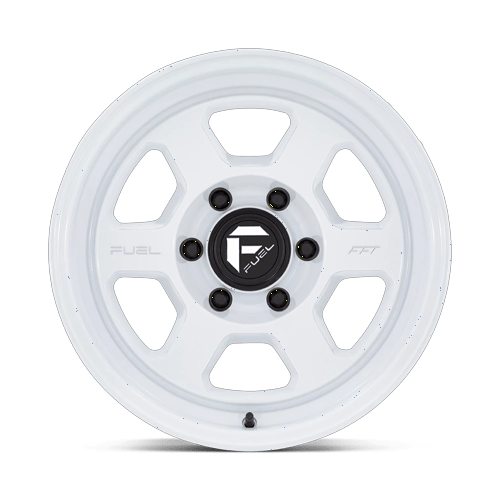

Fuel Off-Road FC860 Hype Wheel 5x150 Bolt Pattern
Questions about fitment? Live chat or call 866-235-4715
Couldn't load pickup availability
- Free shippingMost orders $500+
- 30-day returnsSee policy
- Warranty supportWe work with the maker
Questions about fitment?
Talk to a TRU specialist
We’ll help you verify fitment before you buy.
Veteran-owned · Austin, Texas · Mon–Fri 9:30a–11:00a & 1:00p–5:30p CT
Important notes before you order
- CAUTION! Upon receipt of wheels, open one box and conduct a test-fit prior to opening remaining boxes. Do not mount tires until wheel fitment is verified. Once tires are mounted or wheels are otherwise used, damaged, or remaining packaging is opened, wheels are non-returnable.
TRU specialist notes
From the Trucks R Us fitment and install team, beyond the manufacturer's information.
- Confirm bolt pattern, center bore and offset for your exact truck. Some aftermarket wheels need hub-centric rings or different lug nuts. Ask us and we will check your setup.
Specifications
| Brand | Fuel 1PC |
|---|---|
| Part number | FC860WX17855810 |
| UPC / GTIN | 194933335176 |
| Part Number | FC860WX17855810 |
| Finish | Gloss White |
| Size | 17x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 26.72 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860WX18855810 |
| Finish | Gloss White |
| Size | 18x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 28.92 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860DX17855810 |
| Finish | Machined |
| Size | 17x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 26.72 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860DX18855810 |
| Finish | Machined |
| Size | 18x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 28.92 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860MX17855810 |
| Finish | Matte Black |
| Size | 17x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 26.72 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860MX18855810 |
| Finish | Matte Black |
| Size | 18x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 28.92 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860ZX17855810 |
| Finish | Matte Bronze |
| Size | 17x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 26.72 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
| Part Number | FC860ZX18855810 |
| Finish | Matte Bronze |
| Size | 18x8.5 |
| Bolt Pattern | 5x150 |
| Offset | 10mm |
| Backspacing | 5.14" |
| Center Bore | 110.1mm |
| Load Rating | 2500 lbs |
| Wheel Weight | 28.92 lbs |
| Lip Depth | 1.81" |
| Construction | Flow Formed Aluminum |
| Cap Part No. | 1006-44MB |
| TPMS Compatible | Yes |
Features
- Flow Formed Aluminum
- Flow Formed Technology
- TPMS Compatible
- Structural Warranty: Lifetime
- Finish Warranty: One Year
Overview
The Fuel Hype blends lightweight Flow Formed Technology with timeless motorsport styling for a wheel that performs as good as it looks. Available in 17" and 18" diameters with offsets from -10mm to +10mm, it’s built in 5, 6, and 8-lug configurations to fit just about anything. Ideal for Toyota Land Cruisers, second-generation Tundras, and Sequoias, it also works perfectly on Ford F-150s, Silverado 1500s, RAM 1500s, and steps up to heavy-duty trucks like the Ford F-250 and F-350, RAM 2500 and 3500, and Silverado 2500 and 3500. The Hype delivers a durable, budget-friendly alternative to forged wheels without compromising style or strength.
